Hydrostatic Bearings for Hydraulic and Pneumatic Systems

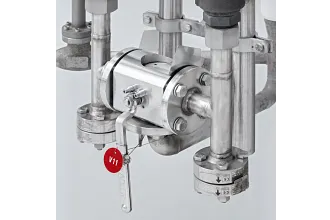

Valve technology
Each shut-off valve consists of an actuator and an actuator element (= valve). Their high chemical resistance and freedom from maintenance ensure our products are ideal for the use in valve technology.
Pump technology
Whether coolant pump in the car or washing water pump in the dishwasher: iglide® plain bearings are resistant to chemicals and withstand high sliding speeds of up to 6,500rpm when used in the medium.
Meter systems
There are meters for water and gas in every household. igus® components such as gears, plain bearings or coupling rods can be installed. With special materials, including for underwater use, we find solutions for every application.
Consumers/components
Whether gas spring, hydraulic or pneumatic cylinder: with iglide® guide rings and plain bearings, low-clearance piston guides can be achieved under almost all conditions.
Valve technology - actuator

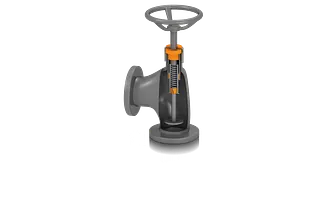

Valve
- Chemical-resistant plain bearings and guide rings e. g. made of iglide® H370 for vertical piston guide
- Patented lead screw geometry and temperature-resistant lead screw nut e. g. made of iglide® J350 for vertical drive of the shut-off body

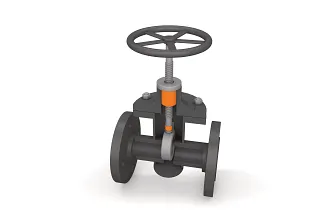

Slider
- Dirt-resistant plain bearing and guide rings e. g. made of iglide® G for vertical piston guide
- Patented lead screw geometry and chemical-resistant lead screw nut made of e. g. iglide® J350 for vertical drive of the shut-off body

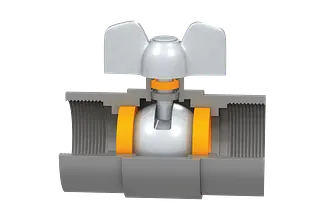

Tap
- Food-compatible plain bearings or sliding plates e. g. made of iglide® A350 for rotary motion of the ball valve
- Thrust washer for guiding and sealing the ball

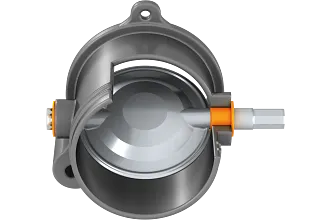

Shut-off/throttle damper
- iglide® Q plain bearing for high dynamic loads in the pivot points of the flaps
- Optimized for pivoting movements of the flap
Valve technology - actuator
Linear drive
- Lubrication-free plain bearings e. g. made of iglide® G300 for shaft bearings
- Noise dampening plastic gears e. g. made of iguform S270 for transmission in the gearbox
- Lead screw and lead screw nut for vertical movement also possible in special shapes

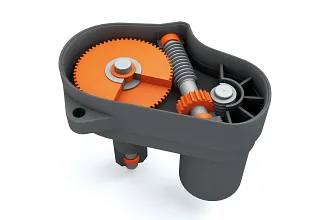

Rotary drive
- Lubrication-free plain bearings e. g. made of iglide® G300 for shaft bearings
- Noise dampening plastic gears e. g. made of iguform S270 for transmission in the gearbox
- Lead screw and lead screw nut for vertical movement also possible in special shapes

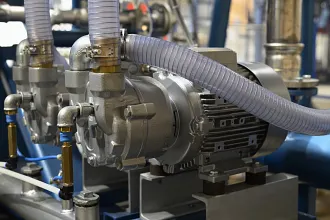

Pump technology
Wet running pumps
- Media-resistant for the bearing of the drive shaft
- Rotation in a medium (water, oil, etc.) makes revolutions of up to 6,500 rpm possible

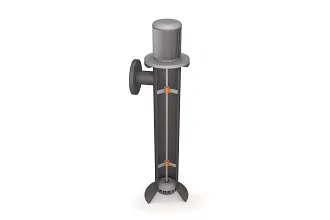

Vertical pump
- Sewage-resistant plain bearings e. g. made of iglide® UW for the bearing of the drive shaft
- Short-term high speed of up to 2m/s possible in unlubricated condition

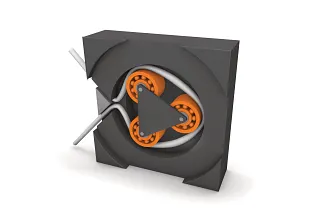

Roller pumps
- Media-resistant conveyor rollers e. g. made of iglide® H1 for rotation
- xiros guide rollers with very low break-away torque for rolling motion
Meter systems

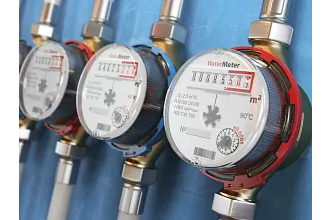

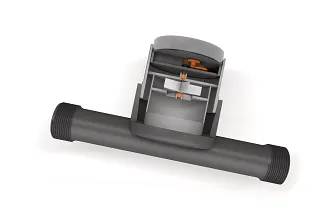

Water meters
- With a plain bearing made of iglide® UW160, the bucket wheel "floats" on the bearing point. Minimal friction, as UW160 has the same density as water.
- xiros ball bearing with glass balls for smooth-running, corrosion-free bearing of the impeller wheel
- Cost-effective production of the entire bucket wheel
- Low-wear plastic gears and plain bearing in the gearbox

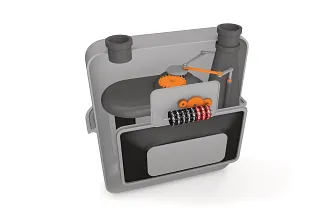

Gas meter
- Self-lubricating plain bearings e. g. made of iglide® G300 in the pump mechanism of the counter
- Transmission of forces in the gearbox
- Low-wear plastic gears in transmission
Consumers/components

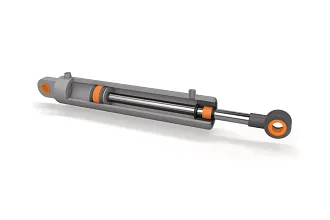

Hydraulic cylinder
- Heavy-duty and oil-resistant guide rings or plain bearings e. g. made of iglide® Q for guiding the piston
- Plain bearings sealed against dirt e.g. iglide® SG03 in the pivot point of the cylinders
- igubal spherical ball with spherical compensation as self-lubricating insert in cylinder pivot point

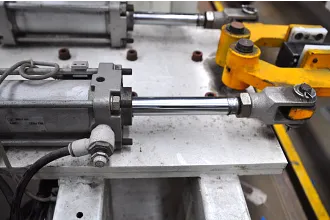

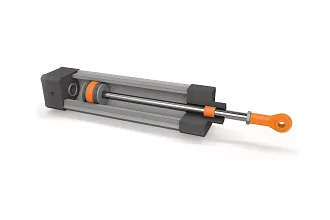

Pneumatic cylinder
- Wear-optimised plain bearings and guide rings e. g. made of iglide® G300 for guiding the piston
- drylin R shafts made of aluminium, steel or stainless steel can be used as pistons
- igubal KBRM rod ends can be combined with the shaft to achieve spherical compensation at the connection

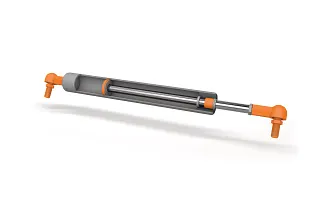

Gas strut
- Heavy-duty plain bearings with flange e. g. made of iglide® H4 for guiding the piston
- Therefore no end caps required igubal GERM clevis joint with pin as connection of the gas spring
- igubal WGRM angled ball and socket joint as connection of the gas spring
