  2. Linear guides

drylin® W profile guides

In a comprehensive modular system, the drylin® W profile guides offer the largest product diversity within the drylin® family. The series of linear profile guides combines the modular advantages of other drylin® type series, which allows very easy assembly while maximising installation space utilisation. Over 25 different rail designs ensure maximum design freedom.
The use of the drylin® hybrid roller bearings is possible for very low driving forces, with single or double rollers used in the bearings. They sit captive on the rail – transverse and abuse forces are easily absorbed by sliding elements.
more
less
Change your bearing now
Change your bearing now

Up to 40% more cost-effective than ball bearing solutions!
Expert system
Expert system

System selection & service life calculation with CAD. This product finder allows you to calculate the appropriate linear unit as well as the calculation of motors and service life.

Products

List
Tile

Number of products: 117

drylin® W-Econ double rail WS-CA
drylin® W-Econ double rail WS-CA New
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10/16/20 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Double Rail
  • Material: aluminum
  • Rail profile: Round

from 53.85 USD/m

Shop now
drylin® W-Econ single rail WS-CA
drylin® W-Econ single rail WS-CA New
  • Consistent silver rail finish
  • "econ" cost-effective and corrosion-free due to clear anodised coating
  • Available as drylin® W single rails and double rails in installation sizes 10/16/20 (round)
  • Suitable for all drylin® W single bearing housings and linear carriages
  • Lifelong rattle-free through combination with pre-loaded drylin® W linear bearings series WJ200UM-01-Pxx
  • Individual bearing clearance adjustment by using WJ200UME-01 bearing housings
  • Design: Single Rail
  • Material: aluminum
  • Rail profile: Round

from 58.95 USD/m

Shop now

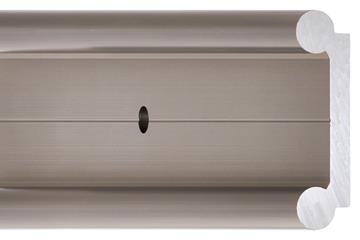

drylin® W double rail WS
drylin® W double rail WS
  • Design: Double Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

from 44.42 USD/m

Shop now

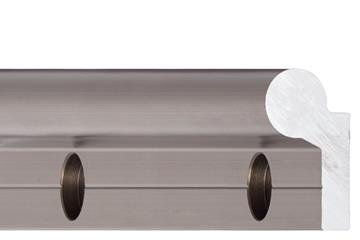

drylin® W single rail WS
drylin® W single rail WS
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Round

from 45.82 USD/m

Shop now

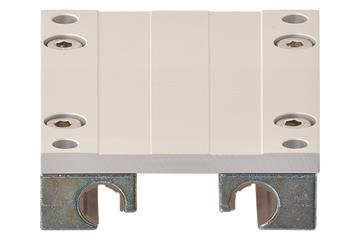

drylin® W assembled carriage plate WW
drylin® W assembled carriage plate WW
  • Design: round
  • Material sliding element: iglide® J200
  • Material: die-cast zinc

from 37.94 USD/Pc.

Shop now

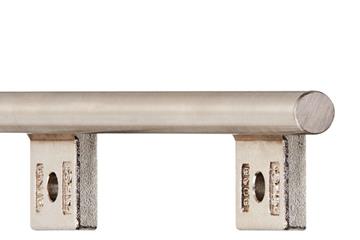

drylin® W single rail WS-ES
drylin® W single rail WS-ES
  • Design: Single Rail
  • Material: stainless steel 1.4571
  • Rail profile: Round

Upon request

Shop now

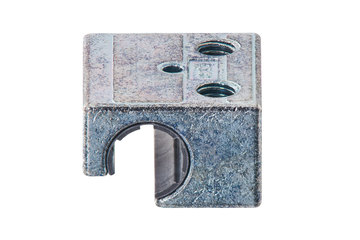

drylin® W pillow block WJ200UM-01
drylin® W pillow block WJ200UM-01
  • Material: die-cast zinc
  • Material sliding element: iglide® J200

from 5.25 USD/Pc.

Shop now

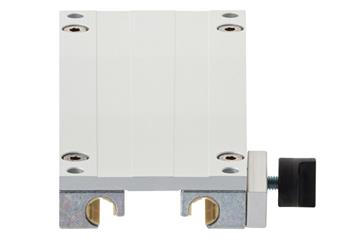

drylin® W assembled carriage plate WW-HKA
drylin® W assembled carriage plate WW-HKA
  • Design: round
  • Material sliding element: iglide® J
  • Material: die-cast zinc

from 69.90 USD/Pc.

Shop now
drylin® W double rail WSX
drylin® W double rail WSX
  • Design: Double rail high profile
  • Material: Aluminum, hard anodized
  • Rail profile: Round

from 72.61 USD/m

Shop now

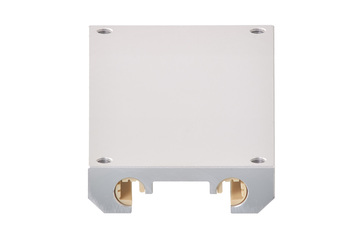

drylin® W one-piece mono carriage WWC
drylin® W one-piece mono carriage WWC
  • Design: square
  • Material sliding element: iglide® J
  • Material: aluminum

from 51.94 USD/Pc.

Shop now

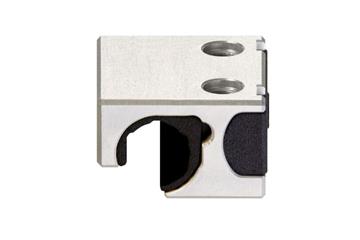

drylin® W pillow block WJ200UMA-01-AL
drylin® W pillow block WJ200UMA-01-AL
  • Fast bearing change without disassembly
  • Smart maintenance directly on the rail
  • For single, double and high profile rails round ø 10 mm
  • Material: aluminum
  • Material sliding element: iglide® J200

from 24.59 USD/Pc.

Shop now

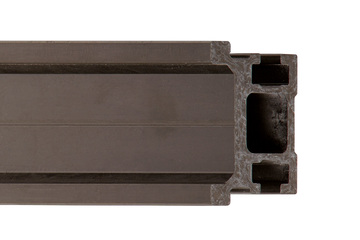

drylin® W double rail, WSPC (CWS, USA)
drylin® W double rail, WSPC (CWS, USA)
  • Design: Double rail high profile
  • Material: Carbon
  • Rail profile: Square

Upon request

Shop now
drylin® W assembled carriage plate WW-SL-HKA
drylin® W assembled carriage plate WW-SL-HKA
  • Design: round
  • Material sliding element: iglide® J
  • Camera carriage 3/8" threaded hole
  • Material: die-cast zinc

from 86.30 USD/Pc.

Shop now

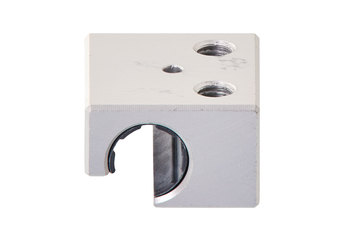

drylin® W pillow block WJ200UM-01-AL
drylin® W pillow block WJ200UM-01-AL
  • Material: aluminum
  • Material sliding element: iglide® J200

from 12.94 USD/Pc.

Shop now

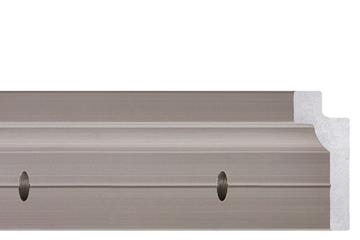

drylin® W single rail WSQ
drylin® W single rail WSQ
  • Design: Single Rail
  • Material: Aluminum, hard anodized
  • Rail profile: Square

from 33.95 USD/m

Shop now
