conductions inserted quickly, e-chain® inserted quickly - fine design

… nicely tidy …

ZF14.Bi.R.0
This energy chain was designed and developed especially for the furniture industry.


Aesthetic design

closed outer contour (half-tubes)

mounting brackets easy to clip on

Easy to fill, even when installed

Cable-friendly due to smooth interior

UL94-V2 certified

Mounting brackets can be either screwed or bonded, thanks to the large flat surface on the bottom



Typical applications:Electrically adjustable furniture, miscellaneous applications without highly dynamic movements

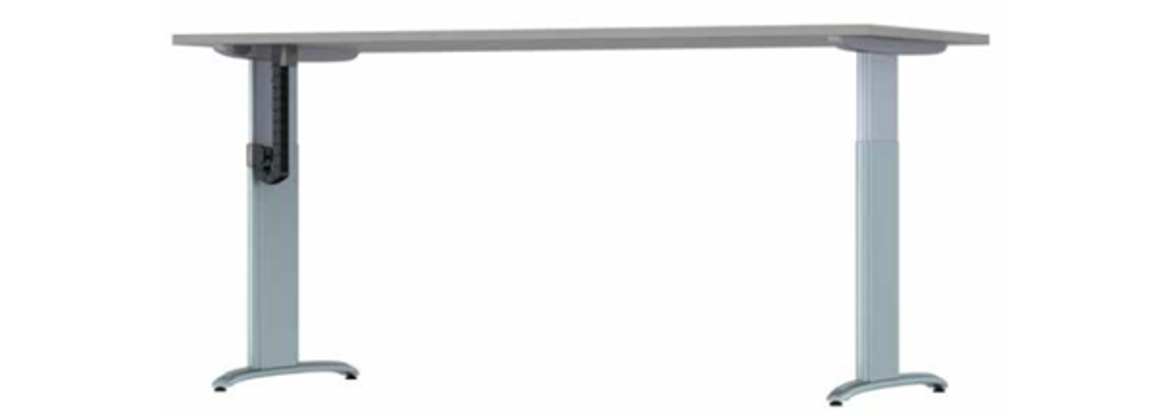

Easy installation of cables Easy installation of cables
easychain® principle:

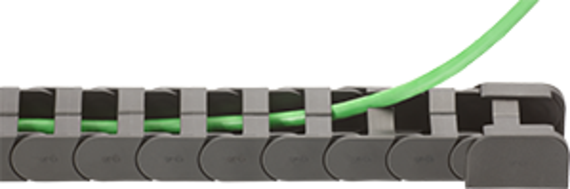

Cables fitted easily by hand, even when installed.
Cables fitted easily by hand, even when installed.

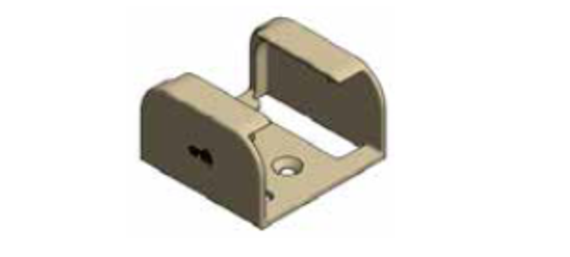

Connector
Connector
Suitable for moving and fixed end. e-chain® clips on easily.
No barbs on mounting bracket; just lock onto the e-chain® opening crossbar.
Part No. Internal height Outer height Inner width External width Bending radii
hi [mm] ha [mm] Bi [mm] Ba [mm] R [mm]
ZF14.Bi.R.0 21 25 038 46,6 028  Request
e.chain® mounting brackets set
ZF14.038.028.0 ZF114.038.12*  Request
* consists of 2x ZF114.038.1
Delivery time

Delivery

as of november
