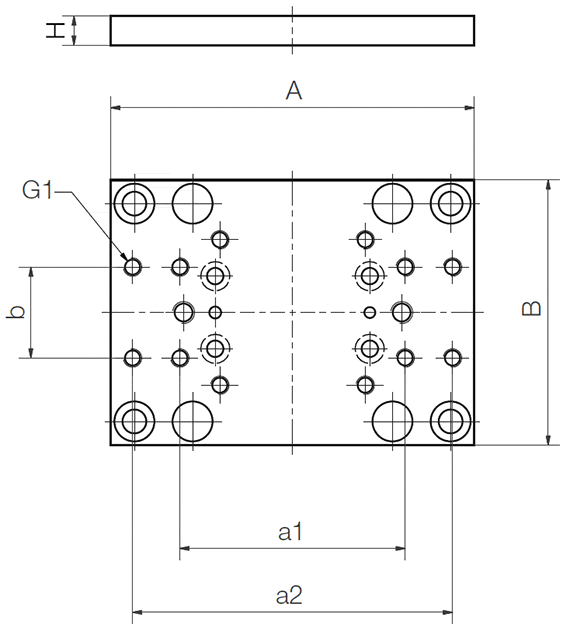

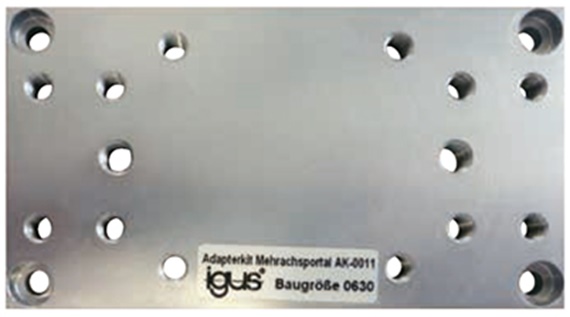

Mise en œuvre simple et rapide de portiques à plusieurs axes
Pour unités linéaires à vis et à courroie crantée
Préparation pour le montage d'une chaîne porte-câbles
Aluminium anodisé
Solution compacte et légère
Montage axe y sur 2 axes x
Référence | Axe x | Axe y | Fonction structure à portique |
---|---|---|---|
AK-0011 | ZLW-0630, chariot de 100 mm | ZLW-0630, ZLW-1040 | Montage axe Y |
AK-0012 | ZLW-1040, chariot de 100 mm | ZLW-0630, ZLW-1040 | Montage axe Y |
AK-0013 | ZLW-1040, chariot de 150 mm | ZLW-0630, ZLW-1040, ZLW-1080 | Montage axe Y |
AK-0014 | ZLW-1660, chariot de 250 mm | ZLW-1040, ZLW-1080 | Montage axe Y |
AK-0024 | ZLW-1040, chariot de 200 mm | ZLW-0630, ZLW-1040, ZLW-1080 | Montage axe Y |
AK-0025 | ZLW-1080, chariot de 150 mm | ZLW-0630, ZLW-1040, GRW-0630 | Montage axe Y |
Référence | A -0,3 |
B -0,3 |
G1 | H | a1 | a2 +0,2 |
b | ||
---|---|---|---|---|---|---|---|---|---|
AK-0011 | 3,94 | 2,13 | M5 | 0,51 | 2,44 | 3,46 | 0,98 | 76,60 USD | |
AK-0013 | 5,91 | 2,87 | M5 | 0,31 | 4,41 | 5,43 | 0,98 | 128,20 USD | |
AK-0014 | 9,84 | 4,09 | M5 | 0,39 | 0 | 9,13 | 1,38 | Sur demande | |
AK-0024 | 7,87 | 2,87 | M5 | 0,31 | 6,38 | 7,4 | 0,98 | 140,42 USD | |
AK-0025 | 5,91 | 4,21 | M5 | 0,31 | 4,41 | 5,43 | 0,98 | 129,75 USD | |
AK-0012 | 3,94 | 2,87 | M5 | 0,31 | 2,44 | 3,46 | 0,98 | 88,12 USD |
