iglide® PRT Slewing Rings
Self-lubricating, maintenance-free

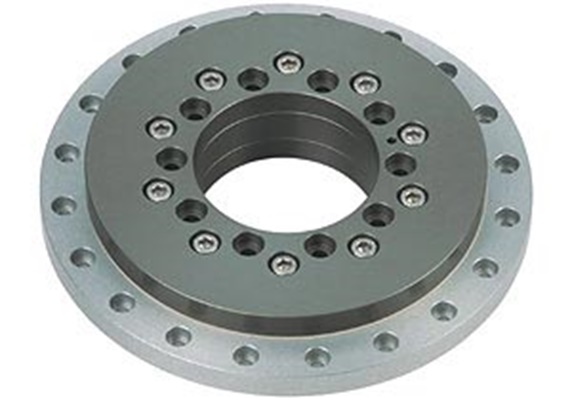

iglide® PRT slewing rings use self-lubricating, low-friction sliding elements in place of ball bearings. They represent a step forward in slewing ring bearing technology.
The sliding elements are made from an igus®-developed, low-cost, high-performance plastic called iglide® J, which is completely lubrication- and maintenance-free.
All the housing components are made from aluminum (except style 02, which has wear-resistant iglide® J4 inner rings) and all the surfaces parallel to the iglide® sliding elements are hard anodized with stainless-steel fasteners. A completely stainless-steel version is also available upon request.
Benefits
Off-the-shelf slewing rings ready to ship within 24 hours
Custom hole patterns/machining available
Downloadable CAD files
Lifetime calculation
Custom options (e.g. gears, stainless versions)
Technical support inc. on-site assistance within 36 hours
Low cost
No minimum order
Free samples
PRT Expert
All New PRT Expert SystemChoose the right PRT Slewing Ring for your application
When to use PRT slewing rings
- When a ready-to-install solution is needed
- When you need a rugged, corrosion-resistant slewing ring for high loads
- When you need a slewing ring for tough environments
- When you need a slewing ring capable of handling low to medium surface speeds
When not to use PRT slewing rings
- For fast, continuous rotations
- For temperatures exceeding 392°F (for temperatures over 192°F, use H1 inserts)
- When only low drive forces are available at high loads
- For extreme precision
Slewing ring bearing style 01
Slewing ring bearing with high rigidity
Applicable up to 356°F, high chemical resistance
Available with seal
Slewing ring bearing with gear teeth
The standard for driving PRT slewing ring bearings by belt, rack, or pinion gear.
Slewing ring bearing style 02
Slewing ring with extremely low weight
Outer ring made of anodized aluminum or stainless steel (V4A)
New low-cost slewing ring bearing
New low-cost design iglide® PRT slewing ring bearing. Through consistent downsizing, a completely new design has been created that relies even more on plastic.
Slewing ring bearing with square flange
The smallest PRT slewing ring bearing in size 20 is now also available with space-saving square flange for direct mounting on flat surfaces.
Slewing ring bearing with clamping function
Slewing ring bearing PRT-01-30 with head ring including clamping function for shafts with 30h7 tolerances.
PRT accessories - hand clamp
Only 0.75 lbs / ft screw torque provides up to 7 lbs / ft of holding force
Easy to screw onto outer ring
M6 threaded hole clamp
Made of aluminum
Available in stainless steel
PRT accessories - drive plate
For quick and easy drive coupling
Made of aluminum
Available in stainless steel upon request
PRT accessories - mounting rings
For use when mounting slewing ring flush to a surface
Easier, more flexible mounting
Custom holes available
Made of aluminum
Available in stainless steel
