drylin® R shaft guides

Components within the drylin® R shaft guides are identically dimensioned as recirculating ball bearings - in contrast, the drylin® R systems minimise noise emissions and reduce surface pressure by the larger contact area between guide and shaft. This allows the use of soft shaft materials such as aluminium or carbon fibre. All in all, the largest range of shafts is available in the programme of shaft linear guides with seven different materials. In combination with three different bearing types made of solid plastic, aluminium or stainless steel as well as five linear liners for different environments, drylin® R is suitable for maximum flexibility and all applications. The unique geometry of the bearing liners ensures a firm hold in the housing by means of a positive locking. This is contrary to glued or pressed solutions even under extreme conditions such as temperature, pressure, impacts and water. As required, a quick replacement of the individual linear liner is also possible.


Products

Number of products: 113

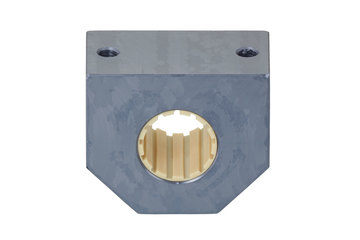

drylin® R pillow block RJUM-05
  • Design: short, closed design
  • Material sliding element: iglide® J
  • Housing material: aluminum

from 34.17 USD/Pc.


Delivery time on request
Shop now

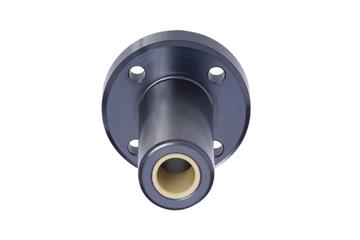

drylin® R pillow block FJUMT-01
  • Design: closed design, tandem design, round flange
  • Material sliding element: iglide® J
  • Housing material: anodized aluminum

from 40.67 USD/Pc.


Delivery time on request
Shop now

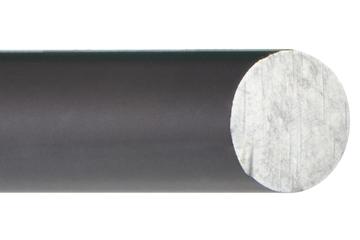

drylin® R aluminum shaft, AWM
  • Lightweight
  • Ideal in combination with iglide® J/J200 liners
  • Low wear
  • Corrosion resistant

from 28.99 USD/m


Delivery time on request
Shop now

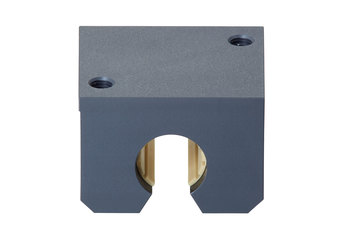

drylin® R pillow block OJUM-06
  • Design: long, open design
  • Material sliding element: iglide® J
  • Housing material: anodized aluminum

from 51.93 USD/Pc.


Delivery time on request
Shop now

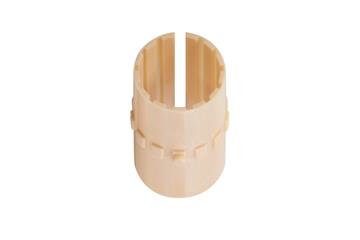

drylin® R liner JUM-01
  • Material: iglide® J For use indoors and out
  • Version: Closed housing, long design

from 3.94 USD/Pc.


Delivery time on request
Shop now

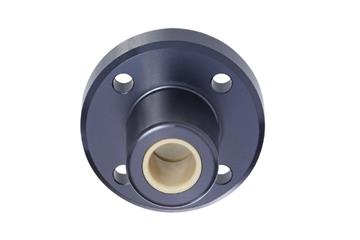

drylin® R pillow block FJUM-01
  • Design: closed design, round flange
  • Material sliding element: iglide® J
  • Housing material: anodized aluminum

from 27.21 USD/Pc.


Delivery time on request
Shop now

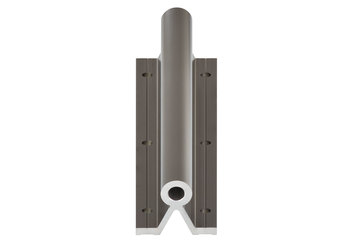

drylin® R aluminum shaft, supported, AWMU (AWUM, USA), EN AW 6061/6060/6063
  • Lightweight
  • Ideal in combination with liners made from iglide® J/J200
  • Low wear
  • Corrosion resistant

from 72.85 USD/m


Delivery time on request
Shop now

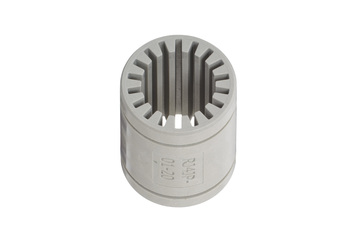

drylin® R linear slide bearing RJ4JP-01
  • Alternative to ball bearings with Japanese dimension
  • Quick assembly
  • Secured by circlip/c-clips
  • Plain bearing material: iglide® J4

from 2.28 USD/Pc.


Delivery time on request
Shop now

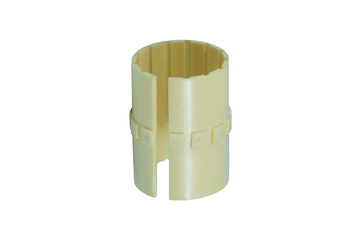

drylin® R liner JUM-02
  • Material: iglide® J For use indoors and out
  • Version: Closed, short design

from 3.30 USD/Pc.


Delivery time on request
Shop now

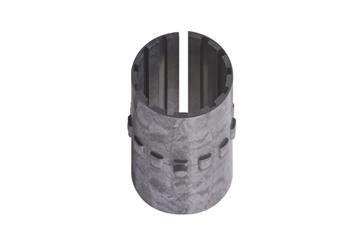

drylin® R liner J200UM-01
  • Material: iglide® J200
  • Version: Closed housing, long design

from 4.73 USD/Pc.


Delivery time on request
Shop now

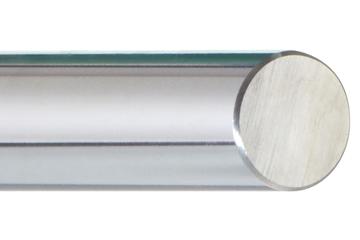

drylin® R stainless steel shaft, EEWM, 1.4034 (420C)
  • Corrosion resistant
  • High chemical resistance
  • Ideal solution for wet environments

Upon request


Delivery time on request
Shop now

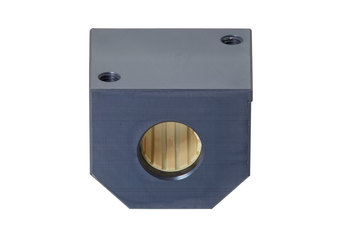

drylin® R pillow block RJUM-06
  • Design: closed housing, long design
  • Material sliding element: iglide® J
  • Housing material: anodized aluminum

from 46.47 USD/Pc.


Delivery time on request
Shop now

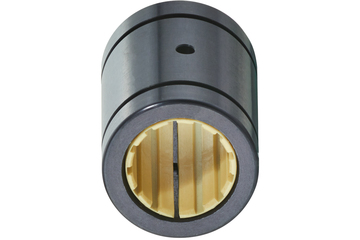

drylin® R linear slide bearing RJUM-01
  • Secured by circlip/c-clips
  • Closed r anodized aluminum adapter
  • Material of the liner: iglide® J

from 9.61 USD/Pc.


Delivery time on request
Shop now

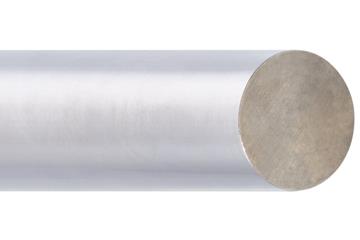

drylin® R steel shaft, SWM/SWI, 1.1213 (1055)
  • lightweight
  • High load capacity
  • Ideal for dry environments
  • Lower coefficient with iglide® plastic liners

Upon request


Delivery time on request
Shop now
drylin® R linear slide bearing OJUM-01
  • Open anodized aluminum adapter
  • For supported shafts
  • Material of the liner: iglide® J

from 12.56 USD/Pc.


Delivery time on request
Shop now
