The Classic Series: our most popular e-chain® cable carriers from past generations

For your convenience, igus® continues to make available older generation e-chains®. These cable carriers are ideal for previously designed machines that may need spare/replacement parts. For new applications, we suggest utilizing our current line e-chain® products for the latest technical advancements and best performance.

"Zipper-like" design for quick opening and closing

    One and two-piece e-chains® in small to medium sizes

    Energy chain for medium loads


    Energy chains with great chip protection at high speeds

      Energy chains for high loads reduce cost, time and weight

      The most universal cable carrier from the E4 system.

      Low-wear, low noise cable carrier.

      Self-guiding e-chains® without guide trough

        E4/100

        The most universal cable carrier from the System E4 range.

        "Zipper-like" design for quick opening and closing

        Rip-open from outside

        Inner height hi: 17 mm
        Inner widths Bi: 15 - 50 mm
        bending radii R: 38 - 180 mm
        Pitch: 30,5 mm


        E2 mini - One and two-piece, small through medium sizes

        Closed design

        Inner height hi: 18 mm
        Inner widths Bi: 15 - 50 mm
        bending radii R: 28 - 180 mm
        Pitch: 30,5 mm

        Snap-open along outside on one side

        Inner height hi: 17 mm
        Inner widths Bi: 15 - 50 mm
        bending radii R: 38 - 180 mm
        Pitch: 30,5 mm

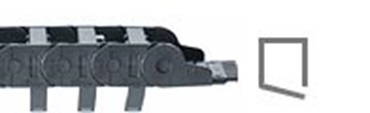

        E2 medium

        Closed design

        Crossbars opened on the inside

        Opened on one side

        Crossbars opened on the outside

        Opened on one side

        Closed design

        Snap-open along one side, crossbars to be opened from inside

        Snap-open along one side, crossbars to be opened from outside


        E2 R

        Snap-open along the outside

        Two-part E-Tube

        Inner height hi: 35 mm
        Inner widths Bi: 50 - 75 mm
        bending radii R: 75 - 250 mm
        Pitch: 33,3 mm

        Two-part E-Tube

        Inner height hi: 45 mm
        Inner widths Bi: 75 - 175 mm
        bending radii R: 100 - 300 mm
        Pitch: 36 mm


        E4/light

        With crossbars at every link, snap-open along both sides

        With crossbars at every other link, snap-open along both sides

        E-Tube, snap-open on both sides

        Pivotable cover

        With crossbars at every link, snap-open along both sides

        With crossbars at every other link, snap-open along both sides

        E-Tube, snap-open along both sides, swivel lid


        E4/0

        With crossbars at every link, snap-open along both sides

        With crossbars at every other link, snap-open along both sides

        E-Tube, snap-open on both sides

        Pivotable cover

        With crossbars at every link, snap-open along both sides

        With crossbars at every other link, snap-open along both sides

        E-Tube, snap-open along both sides, swivel lid


        E-Band

        Filling in the outer radius

        Inner height hi: 25.5 mm
        Inner width Bi: 25,5 mm
        Bending radii R: 45 - 200 mm
        Pitch: 25 mm


        autoglide

        Version 2 - For Series 200 e-chains®

        Injection-molded autoglide teeth along the inner radius.

        Inner height hi: 25 mm
        Inner height Bi: 57 mm
        Bending radii R: 100 mm
        Pitch: 45 mm


        E4/100

        E4/100 is the most universal cable carrier from the System E4 range. It is a safe choice in most applications* and offers a quiet operation. It can be easily assembled and disassembled, is available from stock worldwide and can usually be customized for your application in 24-72 hours.

        E4/100

        E4/100: Smooth running, easy assembly.

        E4/100

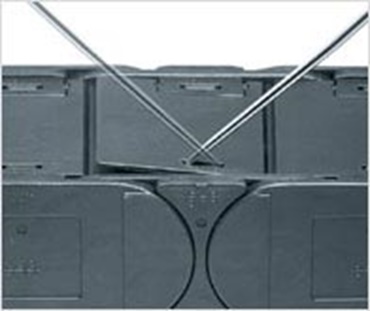

        To open: push down the groove in the crossbar with a screwdriver. Loosen by prizing against the clamp.

        E4/100

        To take apart an enclosed E4/100 tube, press vertically on the groove in the lid with a screwdriver and prize it up.

        Visit the E4/100 Shop below
