chainflex® motor cable CF300-UL-D

Requirements: For extreme heavy duty applications
Outer jacket: TPE
Hydrolysis and microbe-resistant
Flame retardant
Silicone-free
UV resistance: High
Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
chainflex® class: 6.6.4.2

Unsure whether it fits?

Calculate service life

Download EPLAN files

Free sample request

Industry 4.0 - smart cables

Industry 4.0 - smart cables

Sensor for intelligent cables | i.Sense CF.P ... It likes to "stay" on the cable. Click here for more information:

Buying cables with a connector?

Buying cables with a connector?

Looking for a harnessed cable? Just visit our readycable® shop!

chainflex® sample box

chainflex® sample box

Order free of charge

Product description

chainflex® TPE motor cable CF300-UL-D

Typical application areas

For extremely heavy duty applications
Almost unlimited resistance to oil, also with bio-oils
Indoor and outdoor applications, UV resistant
Unsupported and gliding travel distances up to 1,312 ft (400 m) and more
Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications

Certificates and standards

UV resistance
High

Flame retardant
According to IEC 60332-1-2, CEI 20-35, FT-2

Silicone-free
Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992).

NFPA 79
Following NFPA 79-2012 chapter 12.9

DNV
Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH

EAC
Certified according to No. TC RU C-DE.ME77.B.01255

CTP
Certified to no. C-DE.PB49.B.00420

Lead free
Following 2011/65/EU (RoHS-II)

CEI
Following CEI 20-35

Clean room
According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1

DESINA
According to VDW, DESINA standardization

UL/CSA AWM
Style 10492 and 21218, 1.000 V, 80 °C

Technical data

Online Tools

chainflex® Product Finder

chainflex® Product Finder

The cable finder provides you with a quick overview of all possible chainflex® cables for your application.

chainflex® Service Life Calculator

chainflex® Service Life Calculator

The parameters of travel, bend radius and acceleration will give you the service life expectancy of the chainflex® cable.

Copper surcharge calculator

Copper surcharge calculator

Calculate the actual copper surcharge for your price calculation here.

Configurator

Configurator

Individual cables can be ordered in 3 minutes here from 300 m at the current daily price and will be delivered after 3 weeks.

Rest list

Rest list

Remainders of various cable types and lengths are available at attractive prices.

Downloads

Other solutions

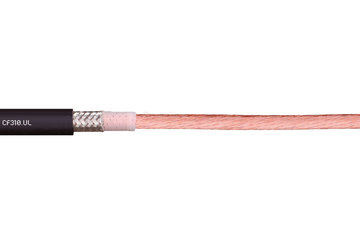

chainflex® motor cable CF310-UL

chainflex® motor cable CF310-UL

For very heavy duty use, TPE outer jacket, shielded, resistant to oil / organic oil, flame-retardant, UV-resistant, hydrolysis-resistant and microbe-resistant

chainflex® motor cable CF885

chainflex® motor cable CF885

For flexible stressing capacity, PVC outer jacket, flame-retardant

from 1.31 USD/ft
