  2. Assembly Instructions triflex® R TRL

triflex® R TRL

Assembly Instructions

TRL-assembly click to enlarge

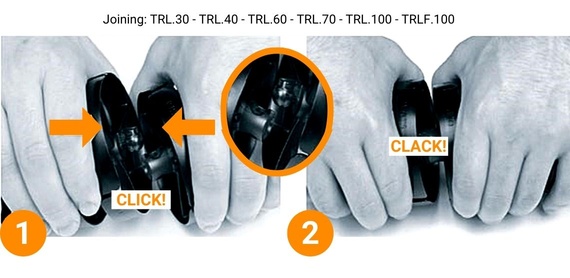

Joining: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL.100 - TRLF.100

Very easy to assemble - simply press the ball into the socket, ready!
TRL-assembly click to enlarge

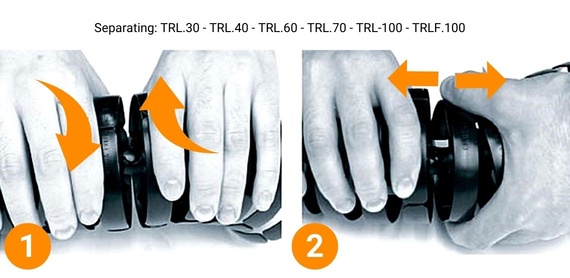

Separating: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL-100 - TRLF.100

  • Just twist the ball slightly to remove it from its socket
TRL-assembly click to enlarge

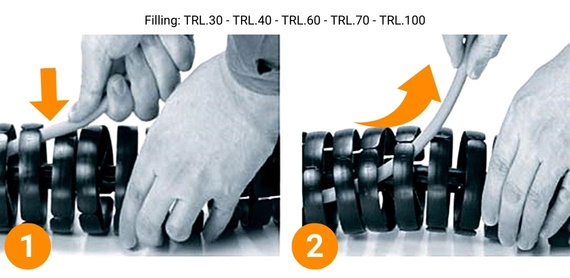

Filling: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL.100

  • Easy to fill - simply press cable in and easy to take the cables out
TRL-assembly click to enlarge

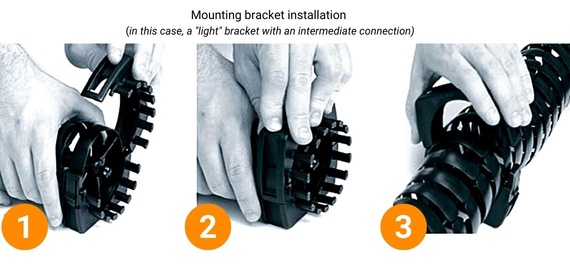

Mounting bracket installation

  • Easy assembly - open the mounting bracket, install the chain and snap the mounting bracket shut again. To open, push a screwdriver against one side and pry apart.
