Gantry robots for industrial automation

Gantry Robots for Industrial Automation

Maintenance-free, easily customizable, automated gantry solutions

igus® gantry robots, also known as cartesian or linear robots, consist of two base X-axes, a  Y-axis, and an optional Z-axis. Their self-lubricating plastic liners have been engineered to slide instead of roll, running smoother and quieter than recirculating ball bearings. Our gantry robots are also lightweight, clean, quiet, corrosion-resistant and maintenance-free. They provide rapid ROI, cost up to 40% less than traditional gantries, and can be easily programmed with our free robot control software. They’re ideal for applications with two primary sets of parameters: low speeds and high loads, or high speeds and low loads. Customization is also available based on application-specific parameters, with choices of different stroke lengths and accessories such as couplings, assembly plates, mechanical switches, and motor flanges. Try out our free online tool to configure your own custom gantry robot  today!

ShopContact an ExpertConfiguratorsExplore the RBTX Marketplace

Benefits:

  • Maintenance-free, lightweight & self-lubricating
  • Resistant to dirt, dust & corrosion
  • Clean, quiet & modular
  • Free on-site consulting, testing & design
  • System construction kit

Industries:

Automation, Packaging, Food & Beverage, Medical, Humanoid, Service Robotics

View Motor Data Sheets

Browse all Gantries

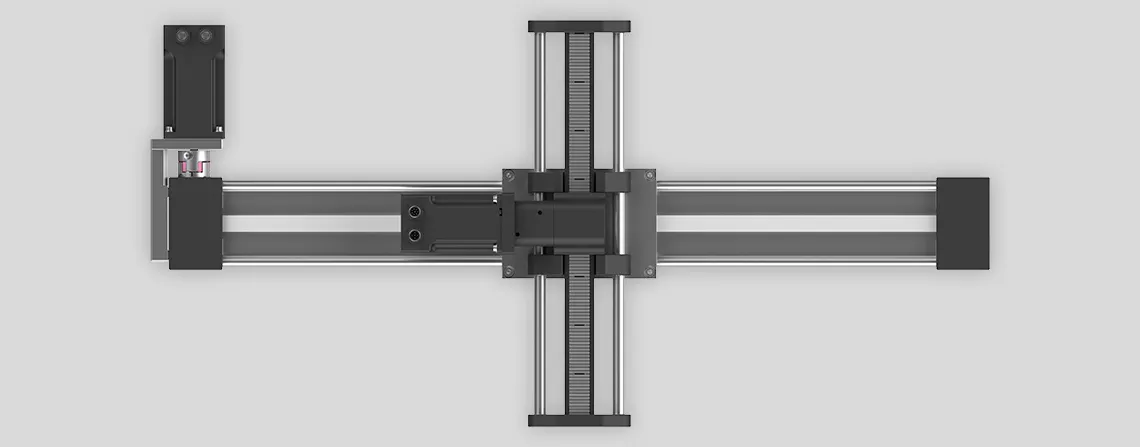

YZ Gantry

XY Acutator
  • Starting at $2,028.38
  • Up to 800 x 500mm
  • Payload: Up to 5kg
Learn More
Shop Now

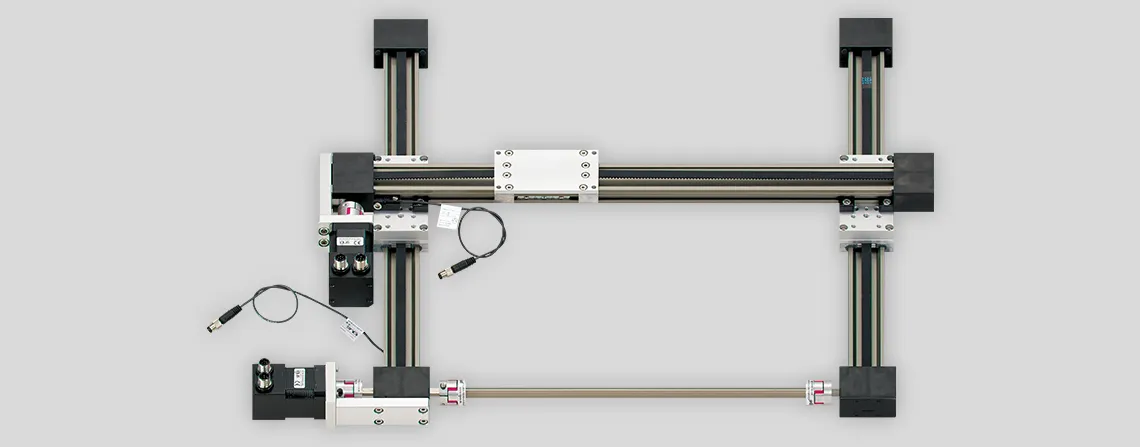

XY Gantry Robot

drylin XY gantry robot
  • Starting at $1,916.40
  • Up to 500 x 500mm
  • Payload: Up to 8kg
Learn More
Shop Now

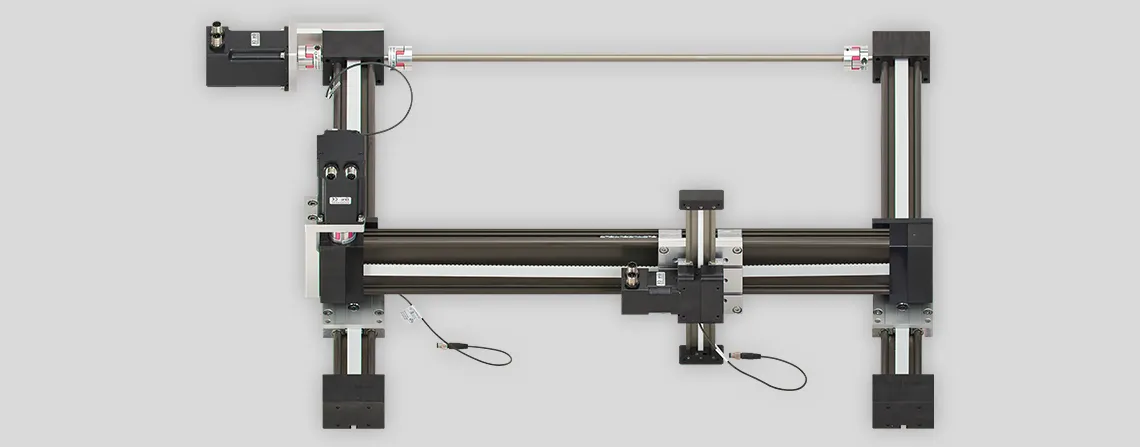

XYZ Gantry Robot

XYZ Gantry Robot
  • Starting at $3,724.50
  • Up to 800 x 800 x 500mm
  • Payload: 2.5kg
Learn More
Shop Now

Palletizing Gantry Robot

Palletizing Gantry Robot
  • Starting at $13,467.50
  • Up to 2000 x 2000 x 1000mm
  • Payload: Up to 10kg
Learn More
Shop Now

RBTX Marketplace for Low-Cost Automation

RBTX is the online marketplace for robots and components that combines affordable products with expert support. From free consulting to application testing and integration support, our team makes automation simple, cost-transparent, and every solution is backed by a compatibility guarantee.

Learn more and browse the RBTX Marketplace .

RBTX

Browse Gantry Application Stories

Browse more application stories on RBTX.com

gantry

RBTX x Kolver Robotic Screwing Application

Check out this automated screwdriving solution, the result of collaboration between RBTX and Kolver. The system utilizes a gantry robot with an integrated Kolver K-DUCER electric screwdriver, allowing easy automation of the entire screwdriving process.

  • Learn More
    • gantry

    Desktop medicine dispensing gantry for pharmacy

    The Qx-Dextron, Qx Robotics’ medication dispensing system, is a cost-effective tabletop device that can dispense both medication strips (such as blister packs) and medication boxes. The solution is based on an XYZ gantry from igus.

  • Learn More

    • Browse the Engineer's Toolbox

    FAQ: Frequently Asked Questions

    A gantry robot, otherwise known as a gantry or cartesian robot, is a system that allows movement along linear paths within a 3D space.

    Usually our maximum is 3000x3000x750 (xyz), but we can also offer longer strokes. The best way is to send us an enquiry and we will check your requirements.

    In principle, all electric motors can be connected. At igus, we mainly use stepper motors.

    0.3 to 0.5mm.

    1m/s, but there are exceptions here, too. The best way is to send us an enquiry and we will check your requirements.

    Feel free to try out gantry robot configurator  . We would also be happy to assist. Send us an inquiry and we will check your requirements.

    Workspace is sometimes referred to as the work envelope; workspace and work envelope is the area within physical reach of a gripper, print head, etc.

    gantry diagram
