Assembly Instructions for energy chain triflex® R - TRL

Video demo for the installation of triflex® R chain systems

Joining: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL.100

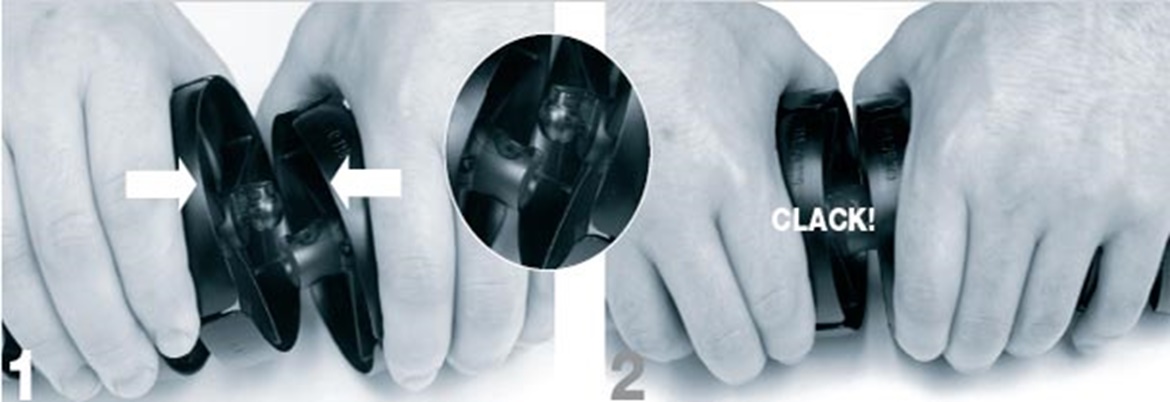

Assembly Instructions for triflex® R TRL Very easy to assemble - simply press the ball into the socket, ready!

Detaching: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL-100

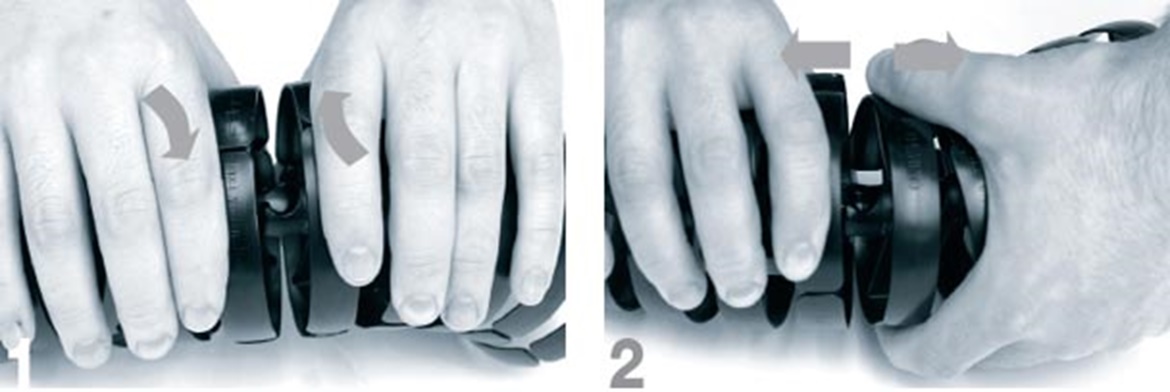

Assembly Instruction for triflex® R TRL Just twist the ball slightly to remove it from its socket

Filling: TRL.30 - TRL.40 - TRL.60 - TRL.70 - TRL.100

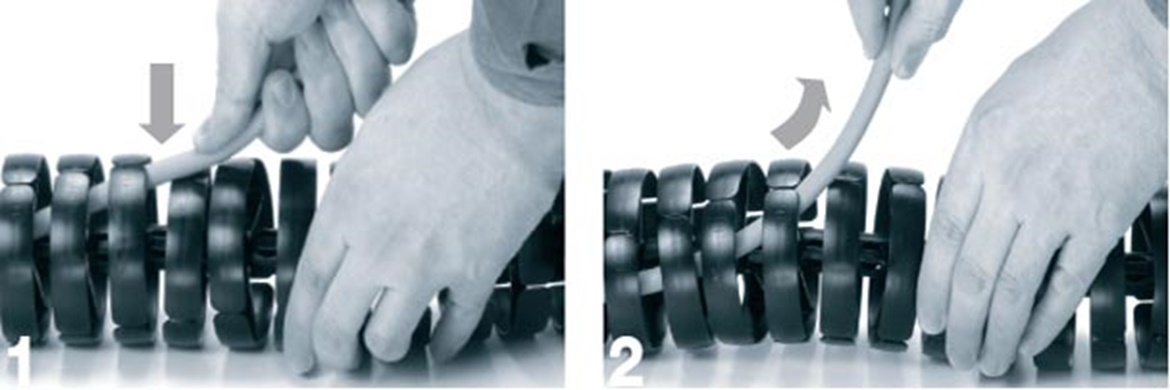

Assembly Instructions for triflex® R TRE Easy to fill - simply press cable in... ...and easy to take the cables out

Mounting bracket installation - in this case, a "light" bracket with an intermediate connection

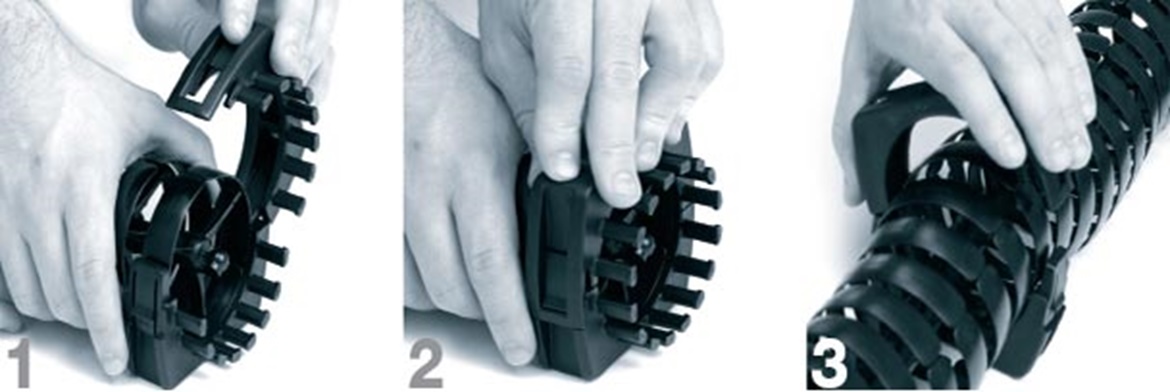

Assembly Instructions for triflex® R TRL Easy assembly - open the mounting bracket, install the chain and snap the mounting bracket shut again. To open, push a screwdriver against one side and pry apart.

triflex® TRL - Installation - Video

Installation instructions as WMV
