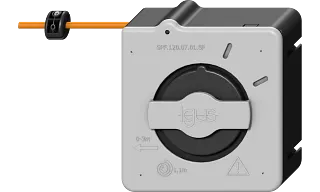

e-spool® flex 2.0

Continuous panel feed e-spool® flex 2.0

The e-spool flex 2.0 is the igus version of a cable drum without a slip ring. Cable diameters from 5mm up to 15mm can be used. The cable is always safely routed through a feed-through to ensure that it is properly wound up at all times.

Contact an igus® expert now

The panel feed e-spool flex 2.0

Tech up

Tech up

Safely guide media, power, data or air in one system
Space-saving
Universally installable (on the floor, on the ceiling or on the wall)
Constant tensile strain on the cable
Locking mechanism of the cable
4 stages of expansion are planned

Cost down

Cost down

No slip ring
Cost-effective in case of repair (replacement of individual components possible)
Adaptable to technological development by simply replacing the cable used

Proof

Proof

Pull-out forces e-spool flex and competitive product (cable diameter 8mm)

Sustainability

Sustainability

No additional copper components in the system
Parts are reusable
Have your energy chain processed as part of the igus chainge recycling program- no matter which manufacturer they came from
igus supports the circular economy of plastics and invests in chemical recycling

Technical data

Part No.	Cable diameter	Extension	Required cable length inside the e-spool flex [m]
SPF.250.08.01*	5mm - 8mm	15m	4,5m
SPF.250.11.01*	8mm - 11mm	10m	3,3m
SPF.250.15.01*	11mm - 15mm	5m	2,4m

*Part can be combined with the following drive (H/T/SP/SB):

Drive	Meaning
h	Manual
T	Tool
SP	Spring with position hold
SB	Spring with position hold and break

Total cable length: extension length + cable length e-spool flex + protrusion FP (connection source)
Example SPF.250.11.01.H: Total cable length: 10m + 3.3m + 5m (protrusion FP) = 18.3 metre

Structure of the e-spool flex 2.0

e-spool® flex 2.0

Cables or hoses are inserted into the e-spool in a spiral pattern

e-spool® flex 2.0

The e-spool flex in detail from the inside (from left): housing, worm guide, cables/hoses, winding housing

e-spool® flex 2.0

The e-spool flex in detail from the outside (from left): housing, worm guide, cables/hoses, winding housing

e-spool® flex 2.0

Detail: cable/hoses inserted in the worm guide

e-spool® flex 2.0

Extension lengths up to 15m possible

e-spool® flex 2.0

The e-spool flex 2.0 can be used wherever a cable must be moved freely during use and must be stowed away safely and cleanly after use

Applications

Mobile wind machine

Mobile wind machine

e-spool - the alternative to the cable drum from igus is used in an extendable mobile wind machine. The e-spool scores here with significantly more flexibility, because unlike slip rings, cables and hoses for data, compressed air and fluids can also be connected end-to-end in one system and, above all, can be replaced or altered at any time.

Mobile wind machine

More energy chain applications

Here you will find an overview of further successful examples of our customers.
