e-spool® flex light

Cable drums rethought

For particularly cost-effective integration

e-spool® flex lite is an igus® designed cable drum with reduced maintenance requirements and optimum protection of the guided cables. Intended for integration into existing structures, thus reduced to the technological core without its own housing in order to save weight, space and, last but not least, cost.

Tech up

No cable interruption, slip-ring-free

Cost down

Up to 66% more extension length (compared to the SPFL.250)

Proof

Tested in the igus® laboratory

Sustainability

No additional copper components in the system (except for cable copper)

e-spool® flex light variants

The e-spool® flex light is the igus® version of a cable drum without a slip ring. The cable is always guided safely through a feed-through to ensure that it is properly wound up at all times. For cable diameters from 5mm to 15mm and extension lengths from 3 to 25 meters.

e-spool® flex light mini SPFL.120

Design study

The e-spool® flex light (mini SPFL.120) is the smallest igus® cable drum in the e-spool® flex light series. Cables with diameters that are between 5mm and 7mm are supported for use within this product.

Inquire about e-spool® flex light mini

e-spool® flex light medium SPFL.200

Design study

Another new version of the e-spool® flex light is the e-spool® flex light medium SPFL.200 2. Its design is based on the e-spool® flex mini, which is completely clicked together with injection-molded parts so that hardly any screws are required.

Inquire about e-spool® flex light medium

e-spool® flex light large SPFL450

Design study

The larger e-spool® flex light large SPFL450 3 can achieve an extension length of up to 17 meters (with a cable diameter of 11mm) or up to 25 meters (with a cable diameter of 8mm) providing up to 66% more extension length (compared to the SPFL.250).

Enquire about e-spool® flex light large

Part No.	SPFL.120.07.01.SP	SPFL.200.08.01.SP	SPFL.250.08.01.SP	SPFL.250.11.01.SP	SPFL.250.15.01.SP	SPFL.450.08.01.SP	SPFL.450.11.01.SP
Cable diameter	5-7mm	5 - 8mm	5 - 8mm	8 - 11mm	11 - 15mm	5 - 8mm	8 - 11mm
Extension length	3m	7m	15m	10m	5m	25m	17m
Required cable length inside the chain	1.1m	2.6m	4.5m	3.3m	2.4m	4.7m	3.5m
System weight	2.0kg	2.7kg	8.7kg	8.9kg	9.2kg	15.4kg	3.5m

Information material

Documentation

This documentation will provide you with all important information about e-spool® flex mini- from technical data to hazard warnings to safety instructions.

Download documentation

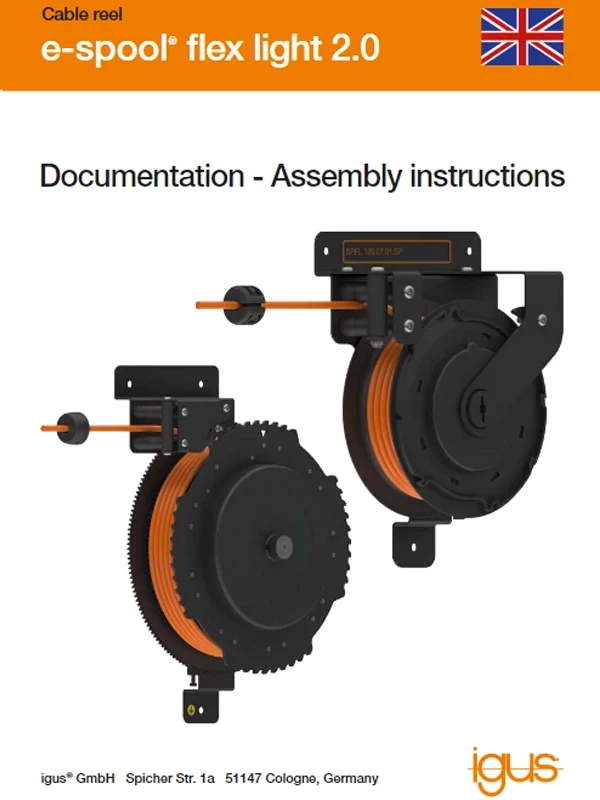

Assembly instructions e-spool flex light

Assembly instructions for e-spool® flex light

In these assembly instructions, we show you how to assemble the e-spool flex light.

Download assembly instructions

Assembly instructions e-spool flex light mini

Assembly instructions for e-spool® flex light mini

In these assembly instructions, we show you how to assemble the e-spool® flex light mini.

Download assembly instructions

Panel feed e-spool® flex 2.0

Cable drum without slip ring

Tech up: Slip ring-free guidance for electricity, data, liquids or air. Can be equipped with any type of cable.

Cost down: No slip ring and cost-effective in the event of repairs, as individual components can be replaced.

Learn more

White paper: Slip ring-free cable drum with spiral guide

With a newly developed cable drum for operating panels,
robot users avoid tangled cables and trip hazards in automated production. Since the new solution does not use slip rings, media, data and the power and signal supply of the emergency stop button can also be integrated into the system. Download the white paper to find out more.

Download white paper
