igubal® pressfit bearing WDGM, variable double joint with socket cup

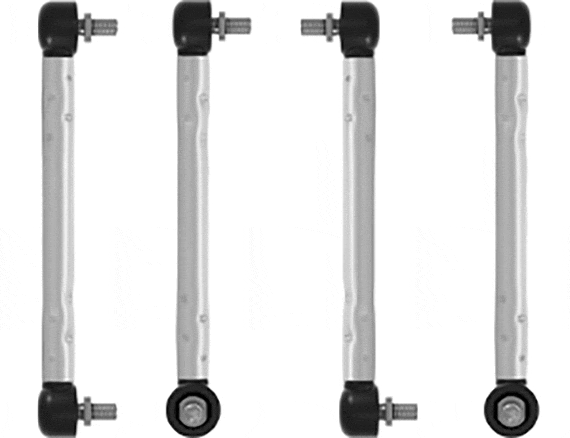

Version A

Version B

Version C

Version D

Special properties:

Socket cup M5, M6, M8 and M10
Individual center dimensions
Individual alignment of the bearing position

WDGM - individual configuration

Step 1

Step 1/5: Select the desired installation size.

Continue

Back

d1:

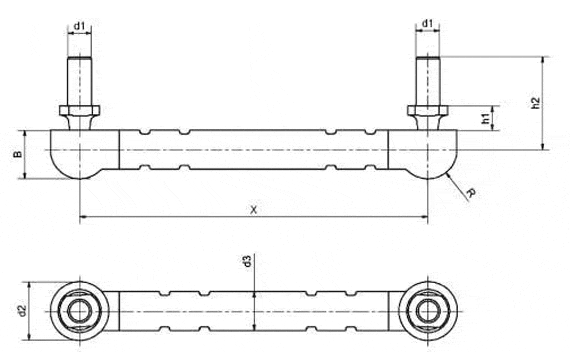

Part. No.	d1	d2	d3	X	B	h1	h2	Width across flats S1	R	Max. pivoting angle
				Min.
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[°]
WDGM-05-A-ER-SZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-B-ER-SZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-C-ER-SZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-D-ER-SZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-06-A-ER-SZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-B-ER-SZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-C-ER-SZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-D-ER-SZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-08-A-ER-SZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-B-ER-SZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-C-ER-SZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-D-ER-SZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-05-A-ER-EZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-B-ER-EZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-C-ER-EZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-D-ER-EZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-06-A-ER-EZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-B-ER-EZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-C-ER-EZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-D-ER-EZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-08-A-ER-EZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-B-ER-EZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-C-ER-EZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-05-A-ER-PZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-B-ER-PZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-C-ER-PZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-05-D-ER-PZ	M5	128	8	74	108	46	192	SW8	64	23°	Upon request
WDGM-06-A-ER-PZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-B-ER-PZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-06-C-ER-PZ	M6	148	10	80	123	61	235	SW9	74	25°	Upon request
WDGM-08-A-ER-PZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-B-ER-PZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-C-ER-PZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-08-D-ER-PZ	M8	193	12	80	162	59	295	SW12	97	24°	Upon request
WDGM-06-D-ER-PZ ⁽¹⁾											Upon request
WDGM-08-D-ER-EZ ⁽¹⁾											Upon request
GDGM-05-V-ER-F ⁽¹⁾											Upon request
GDGM-05-V-ER ⁽¹⁾											Upon request
GDGM-05-V-ER-K ⁽¹⁾											Upon request
WDGM-05-A-ER											Upon request
WDGM-05-B-ER											Upon request
WDGM-05-C-ER											Upon request
WDGM-05-D-ER											Upon request
WDGM-06-A-ER											Upon request
WDGM-06-B-ER											Upon request
WDGM-06-C-ER											Upon request
WDGM-06-D-ER											Upon request
WDGM-08-A-ER											Upon request
WDGM-08-A-SR											Upon request
WDGM-08-B-ER											Upon request
WDGM-08-B-SR											Upon request
WDGM-08-C-ER											Upon request
WDGM-08-C-SR											Upon request
WDGM-08-D-ER											Upon request
WDGM-08-D-SR											Upon request
TDGM-10-LH-ER											Upon request

More about selected part:

3D-CAD

PDF

Quote request

myCatalog

Standard version in galvanized steel, suffix ES = stainless steel version. X = Version A,B,C
(1) XX - Please tell us in the comments field of your order the desired dimensions for XX. Please note the minimum actual dimension X.
