Low friction and free from stick-slip

The articulated joints are mounted on iglide® GFM-0810-05 plastic bushings. They are low friction and free from stick-slip. They also minimize the arm system's friction through their integral flanges. The iglide® G300 range is generally recommended for extremely high loads, low to medium speeds and dirt resistance.

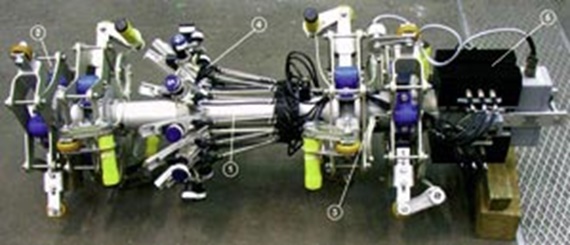

The inspection equipment: 1) Frame, 2) Front centering, 3) Back centering, 4) Sensor system, 5) Electronics

Highly sensitive individual sensors

Each highly sensitive individual sensor is seated on its own drylin® N miniature slide (part no. NK-02-27). The carriages in the low profile slides run oil-free in an anodized aluminum C profile. Characteristics of drylin® N include a lightweight construction, low wear, and a low coefficient of friction. The linear slides also allow for high speeds and accelerations.

Adjustable igubal® rods end bearings (EBRM-05 and EBLM-05) connect the linear slides to the central adjustment. Clevis joints, GERMK-05, serve as counter bearings on both sides. The rod end bearings and clevis joints have extremely low clearance. They are also low friction and free from stick-slip, enabling all of the sensor system’s adjustments to be as smooth and delicate as possible.

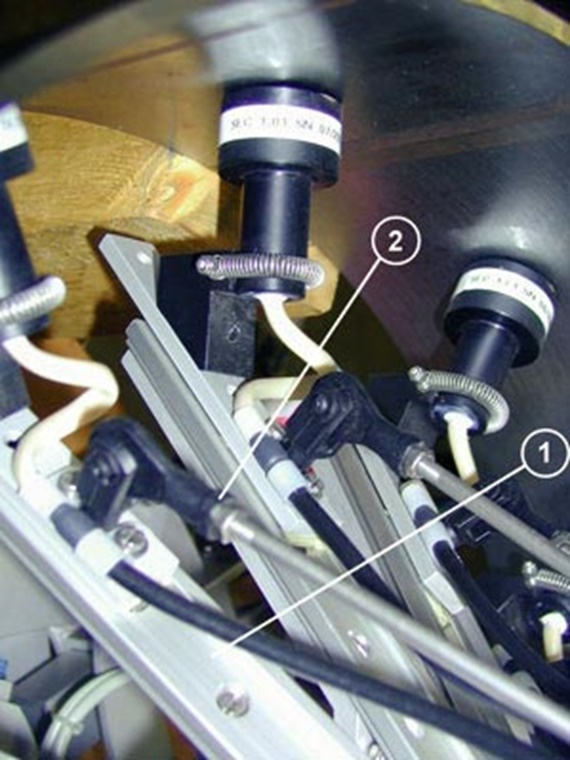

Sensor system of the inspection equipment: 1) Linear slide system, 2) Rod end bearing
