drylin® R - Partially supported stainless steel shaft EWUM-Ø, mm

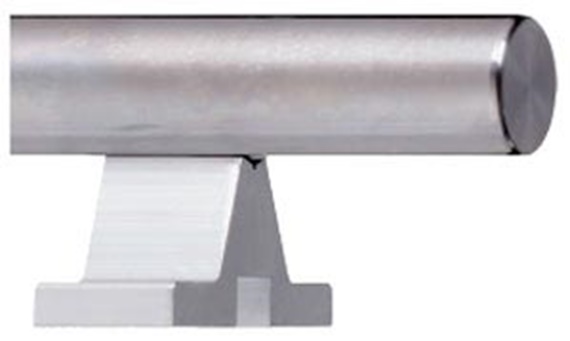

Shaft support blocks for Ø20 mm made of stainless steel VA
Special features
Connecting dimensions as standard shaft supports in aluminium
High corrosion and chemical resistance
Best addition for stainless steel shafts
Available stainless steel shafts in 1.4571/1.4112
Possible lengths:
– EWUM (1.4112) max. 6000 mm
– EWUMS (1.4571) max. 3000 mm
Industries: Food, offshore, packaging, chemical, pharmaceutical and mechanical engineering
R - Partially supported stainless steel shaft EWUM-ES-Ø, mm
d [inch]: |
|

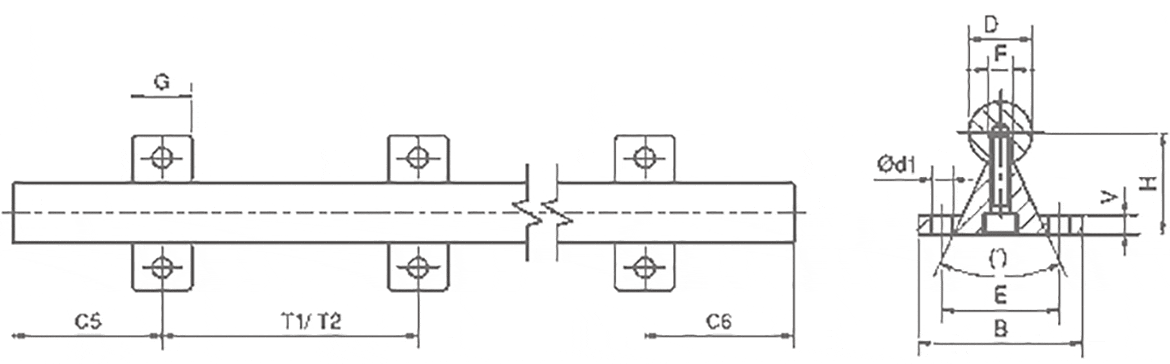

Dimensions [mm]
| Order no. | shaft material |
D h6 | B | H | V | d1 | E | G | T1 | C5/C6 for T1 | C5/C6 for T1 | T2 | C5/C6 for T2 | C5/C6 for T2 | Price / m | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | Min. | max. | [mm] | Min. | max. | Plus cutting costs | |||
| EWUM-ES-20 | 1.4112 | 20 | 52 | 32 | 6 | 6.6 | 37 | 20 | 100 | 20 | 69 | 150 | 20 | 94 | Upon request | |
| EWUMS-ES-20 | 1.4571 | 20 | 52 | 32 | 6 | 6.6 | 37 | 20 | 100 | 20 | 69 | 150 | 20 | 94 | Upon request | |
| EWUM-ES-12 | 1.4112 | 12 | 40 | 22 | 5 | 4.5 | 29 | 14 | 120 | 20 | 57 | 120 | 20 | 79 | Upon request | |
| EWUM-ES-16 | 1.4112 | 16 | 45 | 26 | 5 | 5.5 | 33 | 16 | 150 | 20 | 69 | 150 | 20 | 94 | Upon request | |
| EWUM-ES-25 | 1.4112 | 25 | 57 | 36 | 6 | 6.6 | 42 | 25 | 200 | 20 | 79 | 200 | 20 | 119 | Upon request | |
| EWUM-ES-30 | 1.4112 | 30 | 69 | 42 | 7 | 9 | 51 | 25 | 200 | 20 | 94 | 200 | 20 | 119 | Upon request | |
| EWUM-ES-40 | 1.4112 | 40 | 73 | 50 | 8 | 9 | 55 | 25 | 300 | 20 | 119 | 300 | 20 | 169 | Upon request | |
| EWUM-ES-12-T1 | 1.4112 | 12 | 40 | 22 | 5 | 4.5 | 29 | 14 | 75 | 20 | 57 | 120 | 20 | 57 | Upon request | |
| EWUM-ES-16-T1 | 1.4112 | 16 | 45 | 26 | 5 | 5.5 | 33 | 16 | 100 | 20 | 69 | 150 | 20 | 69 | Upon request | |
| EWUM-ES-20-T1 | 1.4112 | 20 | 52 | 32 | 6 | 6.6 | 37 | 20 | 100 | 20 | 69 | 150 | 20 | 69 | Upon request | |
| EWUM-ES-25-T1 | 1.4112 | 25 | 57 | 36 | 6 | 6.6 | 42 | 25 | 120 | 20 | 79 | 200 | 20 | 79 | Upon request | |
| EWUM-ES-30-T1 | 1.4112 | 30 | 69 | 42 | 7 | 9 | 51 | 25 | 150 | 20 | 94 | 200 | 20 | 94 | Upon request | |
| EWUM-ES-40-T1 | 1.4112 | 40 | 73 | 50 | 8 | 9 | 55 | 25 | 200 | 20 | 119 | 300 | 20 | 119 | Upon request | |
| EWUMS-ES-12 | 1.4571 | 12 | 40 | 22 | 5 | 4.5 | 29 | 14 | 120 | 20 | 57 | 120 | 20 | 79 | Upon request | |
| EWUMS-ES-16 | 1.4571 | 16 | 45 | 26 | 5 | 5.5 | 33 | 16 | 150 | 20 | 69 | 150 | 20 | 94 | Upon request | |
| EWUMS-ES-25 | 1.4571 | 25 | 57 | 36 | 6 | 6.6 | 42 | 25 | 200 | 20 | 79 | 200 | 20 | 119 | Upon request | |
| EWUMS-ES-30 | 1.4571 | 30 | 69 | 42 | 7 | 9 | 51 | 25 | 200 | 20 | 94 | 200 | 20 | 119 | Upon request | |
| EWUMS-ES-40 | 1.4571 | 40 | 73 | 50 | 8 | 9 | 55 | 25 | 300 | 20 | 119 | 300 | 20 | 169 | Upon request | |
| EWUMS-ES-12-T1 | 1.4571 | 12 | 40 | 22 | 5 | 4.5 | 29 | 14 | 75 | 20 | 57 | 120 | 20 | 57 | Upon request | |
| EWUMS-ES-16-T1 | 1.4571 | 16 | 45 | 26 | 5 | 5.5 | 33 | 16 | 100 | 20 | 69 | 150 | 20 | 69 | Upon request | |
| EWUMS-ES-20-T1 | 1.4571 | 20 | 52 | 32 | 6 | 6.6 | 37 | 20 | 100 | 20 | 69 | 150 | 20 | 69 | Upon request | |
| EWUMS-ES-25-T1 | 1.4571 | 25 | 57 | 36 | 6 | 6.6 | 42 | 25 | 120 | 20 | 79 | 200 | 20 | 79 | Upon request | |
| EWUMS-ES-30-T1 | 1.4571 | 30 | 69 | 42 | 7 | 9 | 51 | 25 | 150 | 20 | 94 | 200 | 20 | 94 | Upon request | |
| EWUMS-ES-40-T1 | 1.4571 | 40 | 73 | 50 | 8 | 9 | 55 | 25 | 200 | 20 | 119 | 300 | 20 | 119 | Upon request | |
| EWUM-12-T1 | 1.4112 | 12 | 40 | 22 | 5 | 4.5 | 29 | 14 | 20 | 57 | Upon request | |||||
| EWUM-16-T1 | 1.4112 | 16 | 45 | 26 | 5 | 5.5 | 33 | 16 | 20 | 69 | Upon request | |||||
| EWUM-20-T1 | 1.4112 | 20 | 52 | 32 | 6 | 6.6 | 37 | 20 | 20 | 69 | Upon request | |||||
| EWUM-25-T1 | 1.4112 | 25 | 57 | 36 | 6 | 6.6 | 42 | 25 | 20 | 79 | Upon request | |||||
| EWUM-30-T1 | 1.4112 | 30 | 69 | 42 | 7 | 9 | 51 | 25 | 20 | 94 | Upon request | |||||
| EWUM-40-T1 | 1.4112 | 40 | 73 | 50 | 8 | 9 | 55 | 25 | 20 | 119 | Upon request | |||||
| EWUM-50-T1 | 50 | 84 | 60 | 9 | 11 | 63 | 25 | 20 | 119 | Upon request |
More about selected part:
Ready to ship within 10-15 working days
