e-chains® systems for galvanising, fertiliser production and other demanding environments

The guidelite plus guide system is a guide trough enclosed on both sides and made exclusively of polymer components.
The guidelite plus is made of chemical resistant EG material and has a high guiding stability.
  • 500mm long trough components
  • Connection via fixed hooks and loose plug-in connection to react to temperature fluctuations
  • Quick, easy replacement possible
  • Quieter than metal guide troughs
  • Much more cost-effective than a comparable stainless steel trough
  • Very light

Order example:

Sample order for 30m travel with an E4.42.137.150.0.EG+ is as follows:
• 15 pieces 9GP.150.00.1000.EG+ (1m trough without glide bar)
• 15 pieces 9GP.150.64.1000.EG+ (1m trough with glide bar)
• 1 piece 9GP.150.64.167.E4.42.FP EG+ (fixed end module)
• 60 pieces 9GP.150.167.EG+ (connecting bars)

The fixed end module always includes the connecting bars, which no longer have to be ordered separately.

guidelite plus product range

Guide trough

Part No. Height glide bar [mm] for e-chain®
More about selected part:
myCatalog myCatalog

Connecting bar

Part No. Inner width trough [mm] Outer width chain [mm]
min.

max.
More about selected part:
myCatalog myCatalog

Fixed end modules

Part No. Inner width trough [mm]*
More about selected part:
myCatalog myCatalog

*Info: If the clearance is too small, it may be necessary to press the mounting bracket into the trough at the fixed point. This will leave the trough without problems.

igumid EG+ GLP material properties

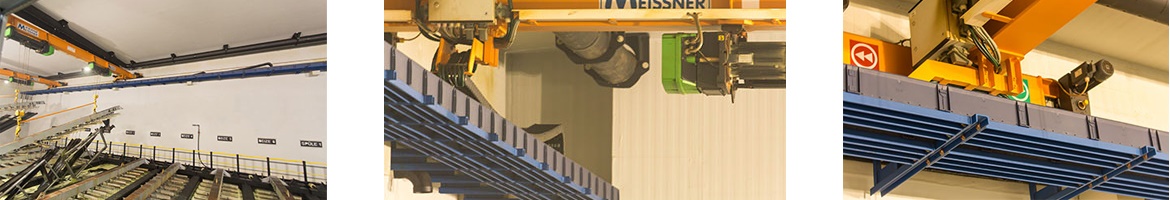

User report

e-chain and guidelite plus in use Wiegel Verwaltung GmbH & Co KG
Energy chain and plastic trough made of chemical-resistant plastic from igus® have been successfully in use for years
