Crossbar and interior separation for the E6.1 6 and E6 series

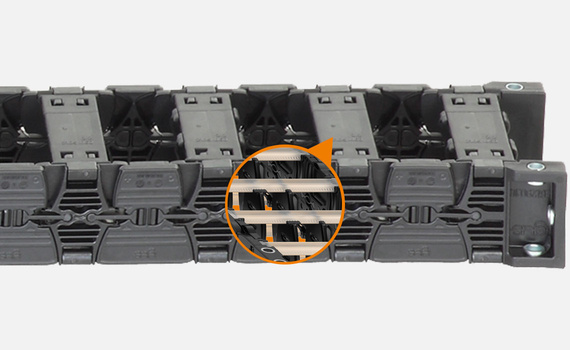

New crossbar

More stable and even more abrasion-resistant for greater cleanroom suitability

A new tribo-material makes it possible: the crossbars consisting of two injection-moulded components reduce the abrasion of the E6 and E6.1 cleanroom chains even more.
This question came from a big customer in the semiconductor industry: can the abrasion of the E6 cleanroom chain be reduced even more? The answer: yes - with a new guide bar optimised for less abrasion And with a clever "division of labour" between the inner and outer materials.

Tech up

Newly developed, cleanroom compatible tribo-plastic
igulen CR1 significantly reduces abrasion of the cables
Easy to assemble and to retrofit
Ease of assembly

Cost down

Longer service life of the cables due to reduced jacket abrasion
Quick to retrofit, an upgrade for higher cleanroom suitability
Reduced maintenance effort

Proof

igus igulen CR1 material produces 89% less abrasion
than the igus standard material

*Measured and averaged in use with five different friction partners:
1) CF340.250.01 2) CF270.UL.350.01.D 3) CF886.350.01 4) CAPE.A.10.0 5) CAPU.A10.0

Sustainability

Resource conservation due to long service life
Have your energy chains recycled as part of the igus chainge Recycling Program at the end of their life cycle. Irrespective of the manufacturer. You can receive a chainge recycling programme voucher

Product range:

Part No.	Suitable for	Width
2105.BBB.CR1	Crossbar suitable for the E6.29/E61.29/E6.35/E61.35 ranges	030 - 140 mm	Submit an enquiry now
225.BBB.CR1	Crossbar suitable for the E6.40/E61.40/E6.52/E61.52 ranges	040 - 300 mm	Submit an enquiry now

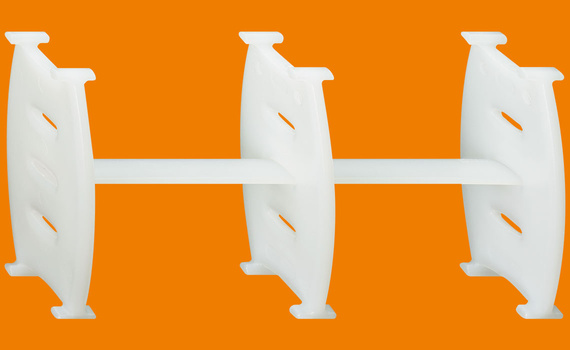

New interior separation

Reduce abrasion further

A new cleanroom material is used for the new interior separation system of the E6 cleanroom chain. Sometimes, it is the details that bring about crucial improvements. A new interior separation system increases the abrasion-resistance of the E6 and E6.1 cleanroom energy chains even more

Product range:

Part No.	Suitable for	Width BBB
E6.29.1.CR1	Separator suitable for the E6.29/E61.29 ranges	–	Submit an enquiry now
E6.35.1.CR1	Separator suitable for the E6.29/E61.35 ranges	–	Submit an enquiry now
E6.40.1.CR1	Separator suitable for the E6.29/E61.40 ranges	–	Submit an enquiry now
E6.52.1.CR1	Separator suitable for the E6.29/E61.52 ranges	–	Submit an enquiry now
2300.BBB. CR1	Shelf suitable for all E6.20-52 ranges	030 - 300 mm	Submit an enquiry now

Free white paper:

Energy supply systems for the cleanroom

In this white paper, you will learn how the right energy guidance in the cleanroom

can increase plant effectiveness
generate greater output from the production lines
Use energy supply systems more sustainably

Download now to find out more

Suitable products

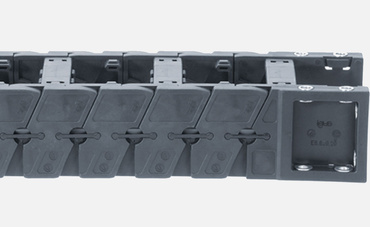

E6 series

Six-section energy chains. Robust, quiet, low vibration, suitable for cleanrooms and in acc. with ISO Class 1.

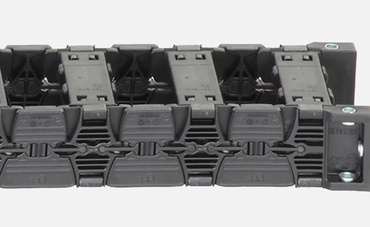

E6.1 series

The new generation of quietly operating energy chains suitable for cleanrooms Extremely free of vibrations, weight saving of approx. 30% compared to E6 system and ISO Class 1

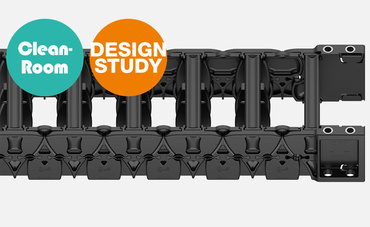

NEW: C6 series

Optimised design without any measurable abrasion For ISO Cleanroom Class 1 applications. High degree of stability and quietness of operation due to sprayed-on dampening profile.

More information

Other energy chains

Further abrasion-resistant energy chains for cleanroom applications according to Class 1 in acc. with EN ISO 14644.

Further cleanroom products

Discover further valuable information on cleanrooms and find out about further cleanroom products.

Cleanroom test laboratory

Company's own cleanroom laboratory according to IPA certification in the igus technical centre. Cleanroom compatibility of chain applications can be quickly tested according to your requirements.
