C6 energy chain system for cleanroom applications

Product presentation e-chain C6

Highest cleanroom suitability, hardly any abrasion & high strength

Abrasion-resistance is the decisive parameter for energy chain applications in cleanrooms. The C6 range of energy chains is setting standards here. The abrasion is barely measurable. This is the best outcome: no abrasion can be measured when the new C6 cleanroom energy chain is used, even under high loads. Further advantages are extremely quiet operation and easy installation.Typical application areas: Electrical manufacturing, semiconductor industry, FPD production, microelectronics, panel robots, packaging, plotters, medical technology
Submit an enquiry for the C6 now
Tech up

Tech up

  • Optimised design without any measurable abrasion
  • For ISO Cleanroom Class 1 applications
  • High strength due to tough double stop-dog system
  • Very quiet operation due to injection-moulded dampening element
  • Side parts made of ESD material to prevent static charge
Cost down

Cost down

  • Long service life due to low life cycle costs
  • Easy and therefore cost-saving installation
  • Made of igumid ESD (side parts) and iglidur J (crossbars and interior separation) as standard
Proof

Proof

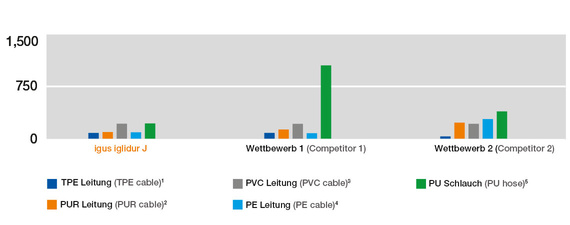

  • Abrasion/cable tests in the igus® laboratory. The iglidur® J material produces 77% less abrasion*
*Measured and averaged on five different friction partners:
1) CF340.250.01 2) CF270.UL.350.01.D 3) CF886.350.01
4) CAPE.A.10.0 5) CAPU.A10.0 compared to the standard material igumid G
Sustainability

Sustainability

  • Uses less resource due to long service life
  • Have your energy chain recycled at the end of its life cycle with the igus chainge recycling program. No matter what manufacturer.
    You will receive a voucher.
  • igus has been an investor in Mura Technology from the beginning and is helping advance chemical recycling. From plastic waste to crude oil in 20 minutes.

Product range:

Part No.Inner heightOuter heightInner widthOuter widthBend radiusPitch
C6.53.172J.075.353mm67mm172mm199mm075mm30mm
Other widths: 50, 62, 75, 87, 100, 125, 175 available from autumn 2022
Delivery times

Available from summer 2022


Tests in the igus laboratory

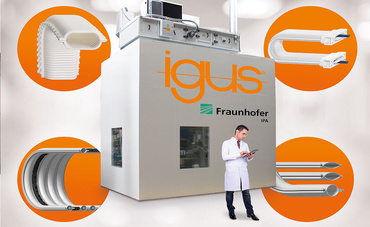

Cleanroom test laboratory Continuous cleanroom tests were performed in the IPA-certified igus cleanroom laboratory during the development process to find a solution that will meet the increasing cleanroom requirements.
Abrasion test Various sliding surfaces are tested and evaluated for abrasion.


Comparisons with other products for cleanroom applications


⬤⬤⬤⬤⬤ Most suitable | ⬤ Rather less so | ✔ Yes | X No
 C6
energy chain
 Energy chain
E6/E6.1
e-skin
corrugated tube
Flat cable guide
e-skin flat

 Series E6.clean E6 seriese-skin corrugated tubee-skin flat
Class 1 according to EN ISO 14644-1Continuous cleanroom tests in the
IPA-certified igus
cleanroom laboratory

Modularity/building block principle ⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘⬤⬤⬤⬤⬤
Components individually interchangeable
Quick filling, openable⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘
Fast delivery⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⬤⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘
Easy maintenance⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘
Available from stock
Can be shortened
Can be widened
High productivity rate⬤⬤⬤⬤⭘ ⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘⬤⬤⬤⬤⬤
No minimum order quantity
Cost-effective⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘
Suitable for unsupported applications⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⭘⭘⬤⬤⭘⭘⭘
For high dynamics⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘
Space-saving⬤⬤⬤⬤⭘ ⬤⬤⬤⬤⭘⬤⬤⬤⭘⭘⬤⬤⬤⭘⭘
Fill weight⬤⬤⬤⬤⬤ ⬤⬤⬤⬤⬤⬤⬤⬤⬤⭘⬤⬤⬤⬤⬤
Up to 36 months guarantee
Saves resources
Everything from one source (chain, cable, connector)
Products also available individually
Quiet, smooth operation⬤⬤⬤⬤⭘ ⬤⬤⬤⭘⭘⬤⬤⬤⬤⭘⬤⬤⬤⬤⬤
Online calculation of service lifeX XX
Online interior separation configuratorX X
Suitable for the following industriesElectronics manufacturing
FPD production
Semiconductor Industry
Microelectronics
Panel robots
Packaging


Electrical manufacturing
Semiconductor industry
FPD production
Microelectronics
Panel robots
Packaging
Plotter
Medical technology
Electrical manufacturing
3C industries
Dispenser
Glass cutting
Semiconductor industry
FPD production
Microelectronics
AOI

Electrical manufacturing
3C industries
Bonding
Dispenser
Semiconductor industry
FPD production
Medical technology
Microelectronics
AOI
   To the productTo the productTo the product

More information

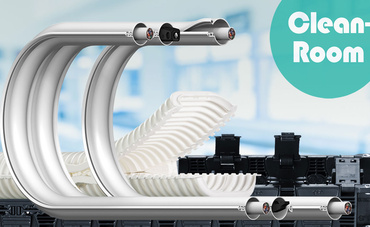

Energy chains for cleanrooms

More cleanroom energy chains

Further abrasion-resistant energy chains for cleanroom applications according to Class 1 in acc. with EN ISO 14644-1.
Cleanroom

Cleanroom

Discover further valuable information on cleanrooms and find out about further cleanroom products.
Cleanroom test laboratory

Cleanroom test laboratory

Company's own cleanroom laboratory according to IPA certification in the igus technical centre. Cleanroom compatibility of chain applications can be quickly tested according to your requirements.
