drylin® stepper motor NEMA 23

You are now leaving igus.ca

The selection of the country/region page can influence various factors such as price, shipping options and product availability.

When switching pages, we will try to match the items in your shopping cart with those available for your country.
Please check your shopping cart after switching, thank you!


MOT-AN-S-060-020-056-L-C-AAAC		195.84 USD
MOT-AN-S-060-020-056-L-A-AAAA	Motor with wire	127.57 USD
MOT-AN-S-060-020-056-M-A-AAAA	Motor	215.62 USD
MOT-AN-S-060-020-056-M-C-AAAC	Motor with encoder	373.88 USD
MOT-AN-S-060-020-056-M-D-AAAD	Motor with encoder & brake	881.69 USD

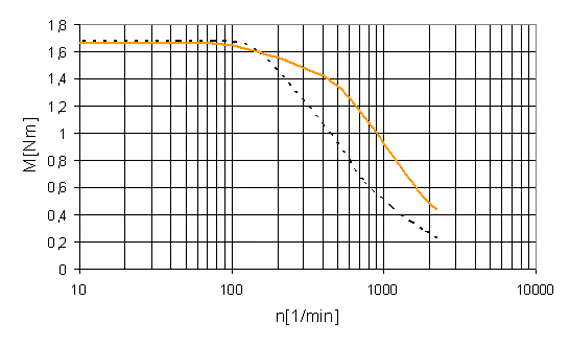

Distance over hubs		56mm (NEMA23)
Motor
Maximum voltage	[VDC]	60
Nominal voltage	[VDC]	24-48
Nominal current	[A]	4.2
Holding torque	[Nm]	2
Detent torque	[Nm]	0.068
Step angle	°	1.8
Resistance / phase	[Ω]	0.5±10%
Inductance / phase	[mH]	1.90±20%
Moment of inertia / rotor	[kgcm]²]	0.48
Max load axial	[N]	15
Max load radial	[N]	52
Encoder
operating voltage	[VDC]	5
Impulse / turn	[1/min]	500
Zero impulse / index		Yes
Line-driver		RS422 protocol
Brake
Operating voltage	[VDC]	24±10%
Wattage	[W]	10
Holding torque	[Nm]	1
Moment of inertia	[kgcm]²]	0.02
Weight
Product weight	[kg]	1.12
With encoder	[kg]	1.14
With encoder and brake	[kg]	1.36
Operating data
Ambient temperature	[°C]	-10...+50
Max temperature rise	[°C]	80
Insulation class		B
Humidity (not condensing)	%	85
Protection class engine case		IP65 (shaft seal IP52)
CE		EMV guideline

Bipolar motor
M12 5- pin
PIN	Signal
1	A/
2	A
3	B
4	B/
5	-
Housing	Shielding

brake
M8 3- pole
PIN	Signal
1	brake (24V)
3	0V
4	-

encoder
M12 8- pole
PIN	Signal
1	A
2	A/
3	B
4	B/
5	0V
6	N
7	N/
8	5V DC
housing	schielding


MOT-AN-S-060-020-056-L-C-AAAC
MOT-AN-S-060-020-056-L-A-AAAA	2.22	1.86	0	0.25	1.5	0.2	0.81	3.86	0.06	0.2
MOT-AN-S-060-020-056-M-A-AAAA	2.22	1.86	0.51	0.25	1.5	0.2	0.81	3.86	0.06	0.2
MOT-AN-S-060-020-056-M-C-AAAC	2.22	1.86	0.51	0.25	1.5	0.2	0.81	3.86	0.06	0.2
MOT-AN-S-060-020-056-M-D-AAAD	2.22	1.86	0.51	0.25	1.5	0.2	0.81	5.43	0.06	0.2

Country/Region

By selecting your country you will be shown local offers and information.

Language settings

Select preferred language:

Page not found

The selected page is not available for . Would you like to switch to the country's homepage instead?

Cancel

Okay

Shopping Cart

The selected article has been added to your shopping cart.
From here you can initiate enquiries or orders.

Continue purchasing

Go to shopping cart

Shopping Cart

It was not possible to add the selected article to the shopping cart.

Okay

MOT -									MOT = motor
	AN -								AN = design
		S -							S = stepper motor
			060 -						060 = 60 V DC
				020 -					020 = 2 Nm Holding torque
					056 -				056 = flange dimension 56 mm
						M -			M = metric plug L = stranded wire (optional)
							A -		A = without C = incremental encoder D = incremental encoder and brake
								AAAA	AAAA = standard AAAC = encoder AAAD = encoder and brake

Please choose your delivery location

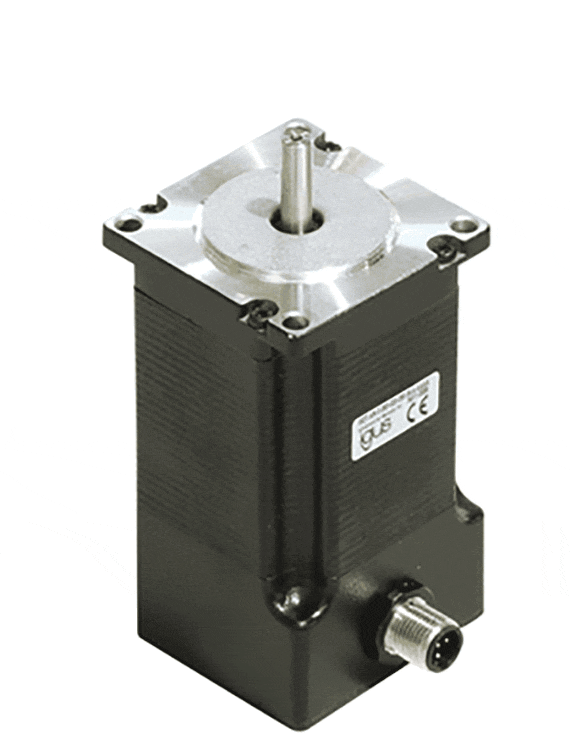

drylin® step motor NEMA23

Characteristics

part no

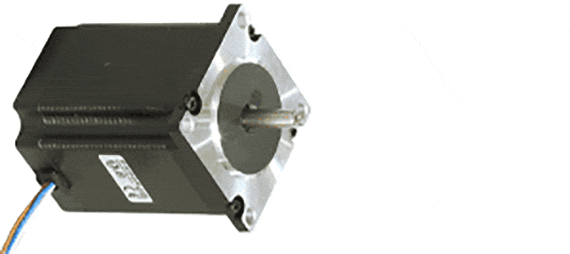

Motor with stranded wires

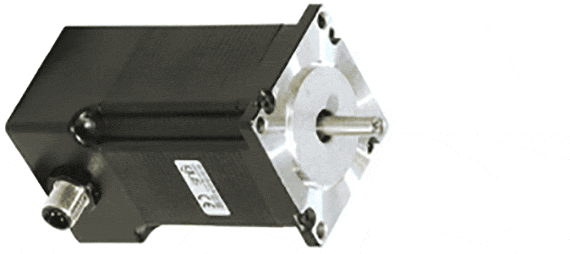

Motor with connector plug

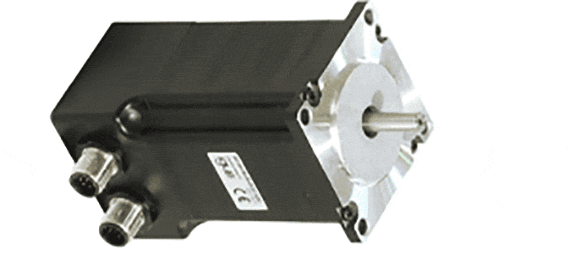

Motor with connector plug and encoder

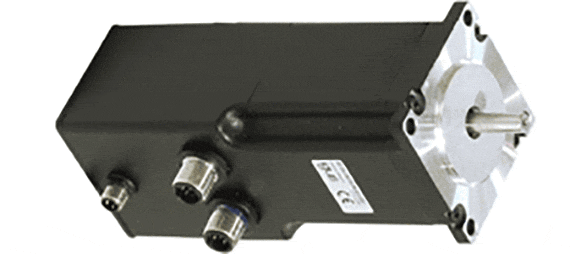

Motor with plug, encoder and break

More about selected part:

technical data

Pin assignment

dimensions

More about selected part:

drylin® E - Product finder and lifetime calculation

Back to the overview pages

drylin® Electric motors

drylin® E – application examples

Have a question about DryLin® E?

type	B1	B2	B3	D1	D2	D3	L1	L2	L3	L4
	[mm]	[mm] ±0,2	[mm]	[mm] -0,013	[mm] ±0,025	[mm]	[mm] ±0,5	[mm] ±0,8 AAAD ±1,0	[mm]	[mm]
MOT-AN-S-060-020-056-L-C-AAAC
MOT-AN-S-060-020-056-L-A-AAAA	2.22	1.86	0	0.25	1.5	0.2	0.81	3.86	0.06	0.2
MOT-AN-S-060-020-056-M-A-AAAA	2.22	1.86	0.51	0.25	1.5	0.2	0.81	3.86	0.06	0.2
MOT-AN-S-060-020-056-M-C-AAAC	2.22	1.86	0.51	0.25	1.5	0.2	0.81	3.86	0.06	0.2
MOT-AN-S-060-020-056-M-D-AAAD	2.22	1.86	0.51	0.25	1.5	0.2	0.81	5.43	0.06	0.2
