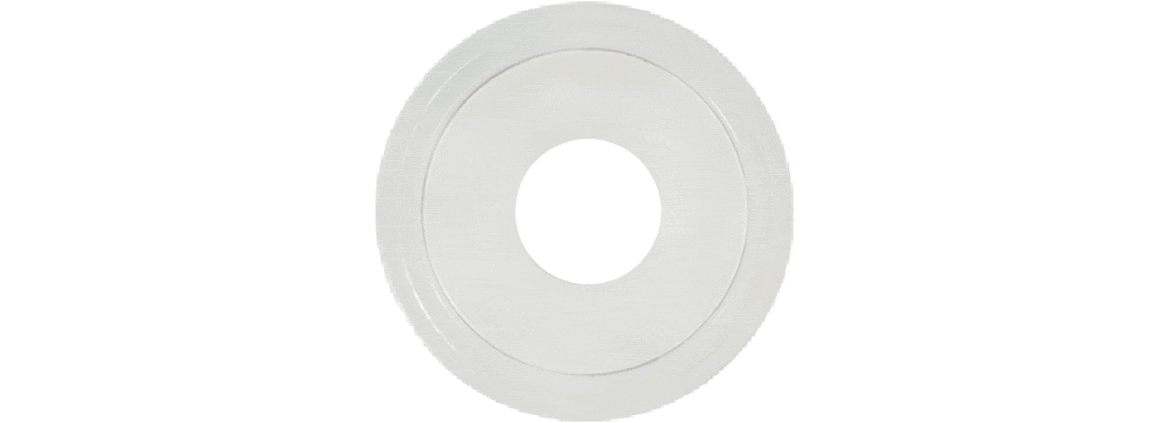

Plastic ball bearing with cover plate

xiros® B180

xiros® B180 radial grooved ball bearing with cover plate

The plastic ball bearing made of xiros® B180 with cover plate provides protection against the ingress of dirt and other abrasive particles. The one-sided cover plate is permanently fixed to the inner ring of the ball bearing. The other side is protected by the enclosed ball cage.

Self-lubricating, and maintenance-free

Dirt-repellent

Corrosion-resistant

Lifetime predictable

For shaft diameter 3-60 mm

Electrically insulating

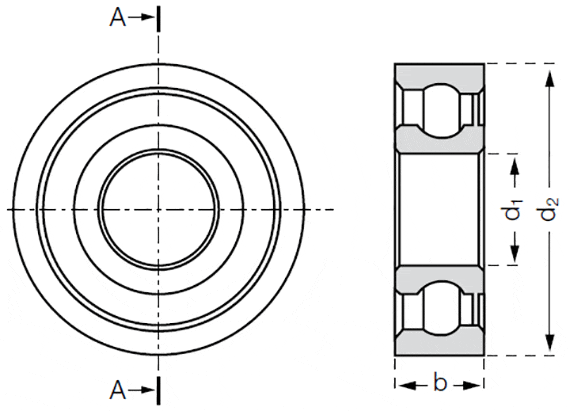

d1 [mm]:

Part No.	Ring	Ball	Cage	d1	d2	b	Max. stat. load	Stat. load rating	Dyn. load rating	Limit rotary speed	Weight

				[mm]	[mm]	[mm]	[lbs]	[lbs]	[lbs]	[rpm]	[g]
BC6005B1GC												Upon request
BB-623-B180-10-ES-C	B180	Stainless steel	PA	3	10	4	6.75	5.63	7.65	4500	0.4	4.13 USD
BB-626-B180-10-ES-C	B180	Stainless steel	PA	6	19	6	21.38	13.5	13.95	3200	2.5	4.42 USD
BB-608-B180-10-ES-C	B180	Stainless steel	PA	8	22	7	37.13	13.5	18.9	2200	4	5.03 USD
BB-6000-B180-10-ES-C	B180	Stainless steel	PA	10	26	8	64.13	29.25	31.5	2200	6.3	5.68 USD
BB-6001-B180-10-ES-C	B180	Stainless steel	PA	12	28	8	70.88	31.5	38.25	2000	7.1	6.43 USD
BB-6002-B180-10-ES-C	B180	Stainless steel	PA	15	32	9	76.05	33.75	43.88	1800	8.9	6.97 USD
BB-6202-B180-10-ES-C	B180	Stainless steel	PA	15	35	11	76.05	32.85	44.1	1700	12.8	8.34 USD
BB-6003-B180-10-ES-C	B180	Stainless steel	PA	17	35	10	81	54	74.25	1600	11.5	7.62 USD
BC6004B1E	B180	Stainless steel	PA	20	42	12	90	56.25	72	1400	19.7	Upon request
BB-6005-B180-10-ES-C	B180	Stainless steel	PA	25	47	12	117	63	85.5	1200	24.7	14.30 USD
BB-623-B180-10-GL-C	B180	Glass	PA	3	10	4	6.75	5.63	7.65	4500	0.4	6.25 USD
BB-626-B180-10-GL-C	B180	Glass	PA	6	19	6	21.38	13.5	13.95	3200	1.8	6.94 USD
BB-608-B180-10-GL-C	B180	Glass	PA	8	22	7	37.13	13.5	18.9	2200	2.7	6.90 USD
BB-6000-B180-10-GL-C	B180	Glass	PA	10	26	8	64.13	29.25	31.5	2200	4.1	7.40 USD
BB-6001-B180-10-GL-C	B180	Glass	PA	12	28	8	70.88	31.5	38.25	2000	4.7	7.91 USD
BB-6202-B180-10-GL-C	B180	Glass	PA	15	35	11	76.05	32.85	44.1	1700	8.9	9.56 USD
BB-6003-B180-10-GL-C	B180	Glass	PA	17	35	10	81	54	74.25	1600	8.4	9.20 USD
BB-6004-B180-10-GL-C	B180	Glass	PA	20	42	12	90	56.25	72	1400	14.2	9.42 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Recommended hole and shaft tolerance for xiros® radial grooved ball bearings
As standard, we recommend an H7 tolerance for the housing bore of the xiros® radial grooved ball bearing and an H6 tolerance for the shaft. If you have any particular questions about the design of your hole and shaft, we'd be glad to hear from you.
