Self-lubricating, maintenance-free
Non-magnetic and washable
Corrosion-resistant
Predictable lifetime
Lightweight
For 3-60 mm shaft diameters
Electrically insulating
Balls: |
|

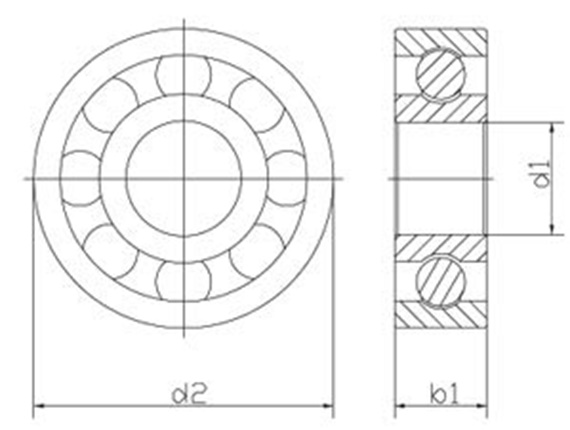

| Part No. | Rings | Cage | Balls | Inner Ø
d1 |
Outer Ø
d2 |
Width
b1 |
Max.
stat. load capa city axial |
Stat.
load capa city |
Dyn.
load capa city |
Limit
speed |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [lbs] | [lbs] | [lbs] | [rpm] | [g] | ||||||
| BB-6300-B180-10-ES | Upon request | ||||||||||||
| B6300B1G | Upon request | ||||||||||||
| B6302B1E | Upon request | ||||||||||||
| BB-623-B180-10-ES | B180 | PA | Stainless steel | 3 | 10 | 4 | 6.75 | 5.63 | 7.65 | 4500 | 0.4 | 3.45 USD | |
| B624B0E | B180 | PA | Stainless steel | 4 | 13 | 5 | 9.45 | 7.42 | 10.13 | 4000 | 1 | Upon request | |
| BB-625-B180-10-ES | B180 | PA | Stainless steel | 5 | 16 | 5 | 16.88 | 9 | 9 | 3700 | 1.6 | 3.59 USD | |
| B626B1E | B180 | PA | Stainless steel | 6 | 19 | 6 | 21.38 | 13.5 | 13.95 | 3200 | 2.2 | Upon request | |
| BB-629-B180-10-ES | B180 | PA | Stainless steel | 9 | 26 | 8 | 9 | 24.75 | 28.8 | 2200 | 6.1 | 4.74 USD | |
| B688B0E | B180 | PA | Stainless steel | 8 | 16 | 5 | 29.7 | 8.78 | 9.22 | 1760 | 3.1 | Upon request | |
| BB-608-B180-10-ES | B180 | PA | Stainless steel | 8 | 22 | 7 | 37.13 | 18 | 21.15 | 2200 | 3.9 | 4.20 USD | |
| B6000B1E | B180 | PA | Stainless steel | 10 | 26 | 8 | 64.13 | 24.75 | 29.25 | 2200 | 6.1 | Upon request | |
| B6200B0E | B180 | PA | Stainless steel | 10 | 30 | 9 | 64.13 | 29.25 | 33.08 | 1900 | 7.8 | Upon request | |
| BB-6001-B180-10-ES | B180 | PA | Stainless steel | 12 | 28 | 8 | 70.88 | 29.25 | 33.08 | 2000 | 6.9 | 5.35 USD | |
| B6201B0E | B180 | PA | Stainless steel | 12 | 32 | 10 | 70.88 | 31.5 | 33.75 | 1780 | 8.8 | Upon request | |
| BB-6002-B180-10-GL | B180 | PA | Stainless steel | 15 | 32 | 9 | 76.05 | 31.5 | 33.75 | 1800 | 8.9 | 7.19 USD | |
| B6202B0E | B180 | PA | Stainless steel | 15 | 35 | 11 | 76.05 | 36 | 49.5 | 1700 | 11.6 | Upon request | |
| BB-6003-B180-10-ES | B180 | PA | Stainless steel | 17 | 35 | 10 | 81 | 36 | 49.5 | 1600 | 11.1 | 6.36 USD | |
| B6203B0E | B180 | PA | Stainless steel | 17 | 40 | 12 | 81 | 56.25 | 72 | 1500 | 14.4 | Upon request | |
| BB-6004-B180-10-ES | B180 | PA | Stainless steel | 20 | 42 | 12 | 90 | 56.25 | 72 | 1400 | 20.2 | 6.83 USD | |
| B6204B0E | B180 | PA | Stainless steel | 20 | 47 | 14 | 90 | 63 | 81 | 1450 | 26.2 | Upon request | |
| BB-6005-B180-10-ES | B180 | PA | Stainless steel | 25 | 47 | 12 | 117 | 63 | 81 | 1200 | 23.9 | 8.80 USD | |
| B6205B0E | B180 | PA | Stainless steel | 25 | 52 | 15 | 117 | 85.5 | 90 | 1050 | 35.2 | Upon request | |
| BB-6006-B180-10-ES | B180 | PA | Stainless steel | 30 | 55 | 13 | 144 | 85.5 | 90 | 1000 | 35 | 27.64 USD | |
| BB-6007-B180-10-ES | B180 | PA | Stainless steel | 35 | 62 | 14 | 162 | 103.5 | 135 | 850 | 47 | 33.03 USD | |
| BB-6008-B180-10-ES | B180 | PA | Stainless steel | 40 | 68 | 15 | 180 | 117 | 153 | 750 | 56.3 | 39.21 USD | |
| BB-6009-B180-10-ES | B180 | PA | Stainless steel | 45 | 75 | 16 | 202.5 | 135 | 180 | 650 | 71.5 | 41.08 USD | |
| BB-6010-B180-10-ES | B180 | PA | Stainless steel | 50 | 80 | 16 | 213.75 | 153 | 202.5 | 600 | 83.1 | 45.28 USD | |
| BB-6011-B180-10-ES | B180 | PA | Stainless steel | 55 | 90 | 18 | 225 | 162 | 213.75 | 550 | 125.2 | 31.73 USD | |
| BB-6012-B180-10-ES | B180 | PA | Stainless steel | 60 | 95 | 18 | 247.5 | 180 | 225 | 500 | 129.6 | 52.00 USD | |
| BB-623-B180-10-GL | B180 | PA | Glass | 3 | 10 | 4 | 6.75 | 5.63 | 7.65 | 4500 | 0.3 | 5.25 USD | |
| BB-624-B180-10-GL | B180 | PA | Glass | 4 | 13 | 5 | 9.45 | 7.42 | 10.13 | 4000 | 0.9 | 5.50 USD | |
| BB-625-B180-10-GL | B180 | PA | Glass | 5 | 16 | 5 | 16.88 | 9 | 9 | 3700 | 1 | 5.75 USD | |
| BB-626-B180-10-GL | B180 | PA | Glass | 6 | 19 | 6 | 21.38 | 13.5 | 13.95 | 3200 | 1.7 | 5.79 USD | |
| B688B1G | B180 | PA | Glass | 8 | 16 | 5 | 29.7 | 8.78 | 9.22 | 1760 | 2.1 | Upon request | |
| BB-608-B180-10-GL | B180 | PA | Glass | 8 | 22 | 7 | 37.13 | 18 | 21.15 | 2200 | 2.6 | 5.93 USD | |
| BB-6000-B180-10-GL | B180 | PA | Glass | 10 | 26 | 8 | 64.13 | 24.75 | 29.25 | 2200 | 4 | 6.18 USD | |
| B6200B1G | B180 | PA | Glass | 10 | 30 | 9 | 64.13 | 29.25 | 33.08 | 1900 | 5.2 | Upon request | |
| BB-6001-B180-10-GL | B180 | PA | Glass | 12 | 28 | 8 | 70.88 | 29.25 | 33.08 | 2000 | 4.5 | 6.58 USD | |
| B6201B1G | B180 | PA | Glass | 12 | 32 | 10 | 70.88 | 31.5 | 33.75 | 1780 | 5.9 | Upon request | |
| BB-6002-B180-30-ES | B180 | PA | Glass | 15 | 32 | 9 | 76.05 | 31.5 | 33.75 | 1800 | 6.2 | 2.95 USD | |
| B6202B1G | B180 | PA | Glass | 15 | 35 | 11 | 76.05 | 36 | 49.5 | 1700 | 8.2 | Upon request | |
| BB-6003-B180-10-GL | B180 | PA | Glass | 17 | 35 | 10 | 81 | 36 | 49.5 | 1600 | 7.9 | 7.69 USD | |
| B6203B1G | B180 | PA | Glass | 17 | 40 | 12 | 81 | 56.25 | 72 | 1500 | 10.2 | Upon request | |
| BB-6004-B180-10-GL | B180 | PA | Glass | 20 | 42 | 12 | 90 | 56.25 | 72 | 1400 | 13.6 | 7.83 USD | |
| BB-6204-B180-10-GL | B180 | PA | Glass | 20 | 47 | 14 | 90 | 63 | 81 | 1450 | 17.7 | 10.06 USD | |
| BB-6005-B180-10-GL | B180 | PA | Glass | 25 | 47 | 12 | 117 | 63 | 81 | 1200 | 16.7 | 12.08 USD | |
| BB-6205-B180-10-GL | B180 | PA | Glass | 25 | 52 | 15 | 117 | 85.5 | 90 | 1050 | 24.6 | 11.18 USD | |
| BB-6006-B180-10-GL | B180 | PA | Glass | 30 | 55 | 13 | 144 | 85.5 | 90 | 1000 | 24.2 | 28.43 USD | |
| BB-6007-B180-10-GL | B180 | PA | Glass | 35 | 62 | 14 | 162 | 103.5 | 135 | 850 | 31.3 | 33.46 USD | |
| B6008B1G | B180 | PA | Glass | 40 | 68 | 15 | 180 | 117 | 153 | 750 | 39.1 | Upon request | |
| B6009B1G | B180 | PA | Glass | 45 | 75 | 16 | 202.5 | 135 | 180 | 650 | 48.6 | Upon request | |
| B6010B1G | B180 | PA | Glass | 50 | 80 | 16 | 213.75 | 153 | 202.5 | 600 | 56.4 | Upon request | |
| B6011B1G | B180 | PA | Glass | 55 | 90 | 18 | 225 | 162 | 213.75 | 550 | 84.4 | Upon request | |
| B6012B1G | B180 | PA | Glass | 60 | 95 | 18 | 247.5 | 180 | 225 | 500 | 85.6 | Upon request |
