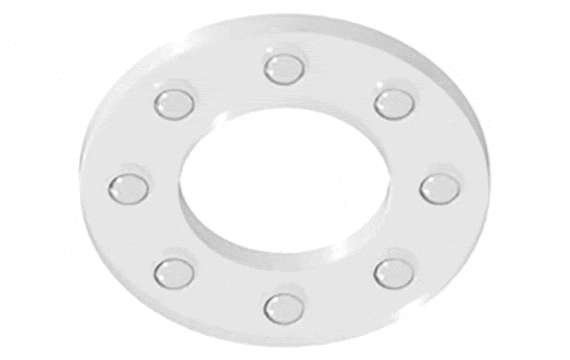

xiros® B180 - Thrust washer

Made of low-cost xiros® B180

Applicable up to 176ºF

Stainless steel or glass balls

Small cross section

Low-cost

Light

Self-lubricating, maintenance-free

Typical applications:Conveying, handling systems, sales promotion

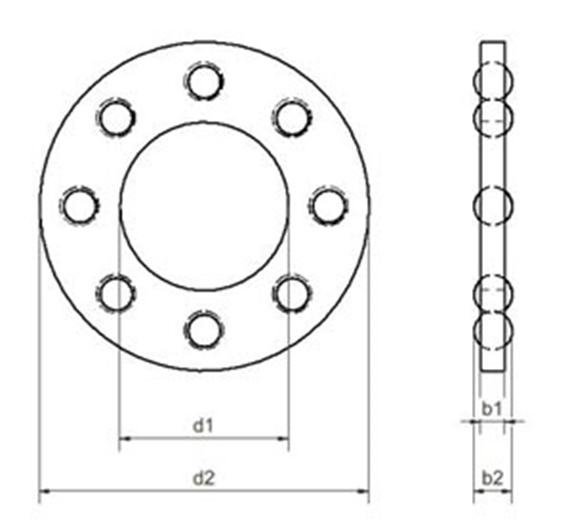

b1 [inch]:

Order number	Inner-Ø	Outer-Ø	Height	load capacity		Limit speed	Weight
	d1	d2	b2	stat.[N]	dyn.[N]	[rpm]	[g]
BTW626BE	6.2	18.8	2	341	425	2000	1.2	Upon request
BTW608BE	8.2	21.8	2	482	500	1700	1.3	Upon request
BTW6000BE	10.2	25.8	2	610	782	500	2.4	Upon request
BTW6000BESL	10.2	25.8	2	405	500	500	2.4	Upon request
BTW6004BE	21	41	3	975	1215	400	7.7	Upon request
BB-6006TW-B180-ES	29.9	45.5	2.5	925	1540	400	7.5	3.09 USD
BTW6006BESL	29.9	45.5	2.5	520	680	400	6.8	Upon request
BB-626TW-B180-GL	6.2	18.8	2	341	425	2000	0.9	2.88 USD
BB-608TW-B180-GL	8.2	21.8	2	482	500	1700	1	2.88 USD
BB-6000TW-B180-GL	10.2	25.8	2	610	782	500	1.5	2.98 USD
BB-6000TW-B180-GL-SL	10.2	25.8	2	405	500	500	1.3	2.88 USD
BTW6004BG	21	41	3	975	1215	400	4.9	Upon request
BB-6006TW-B180-GL	29.9	45.5	2.5	925	1540	400	7.5	3.45 USD
BB-6006TW-B180-GL-SL	29.9	45.5	2.5	520	680	400	6.8	3.38 USD
