Replaces several components

As a single-component solution, the profiled guide rollers made of xiros® B180 replace press-fitted or injection-molded metallic ball bearings.

Cost-effective

Resistant to dirt

Light-weight


Typical application areas:Textile machines, food industry ...

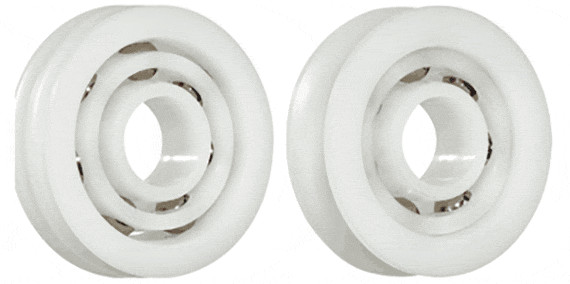

xiros® B180

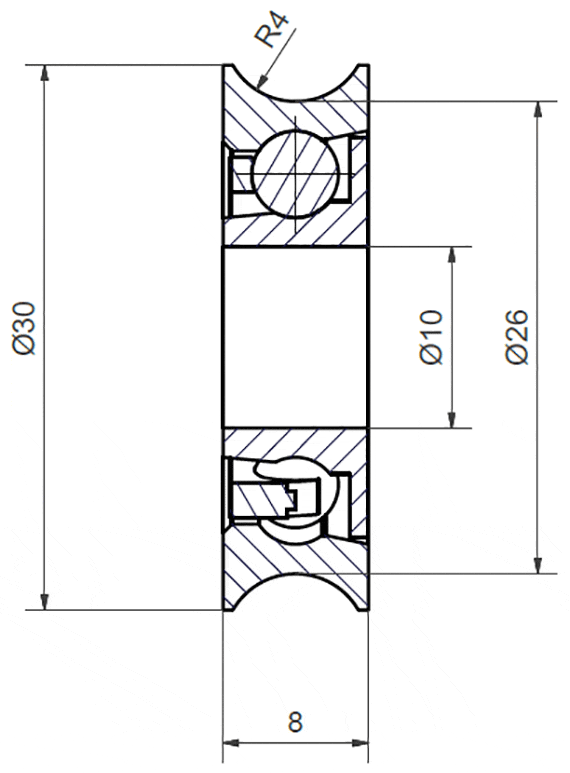

BB-6000P8

Profile P8

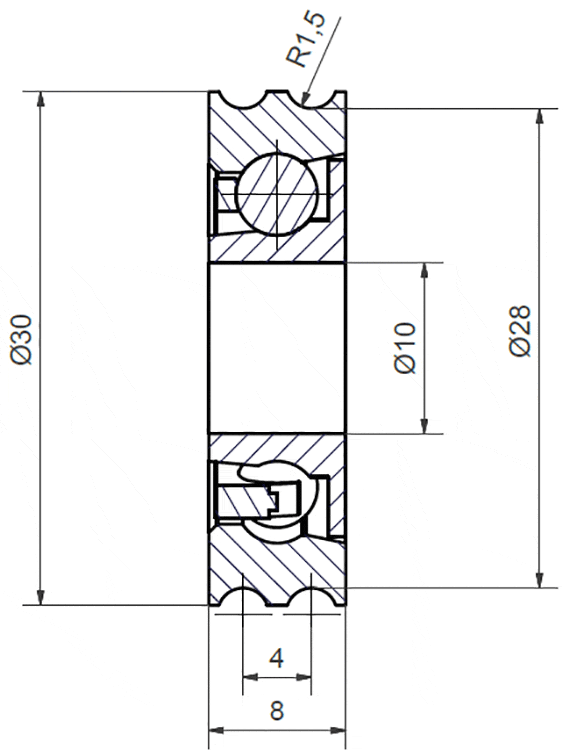

xirodur® BB-6000PP3

Profile PP3


Product range:
Part No.:
d1 [mm]:
Part number Inner Ø Outer Ø Width Load capacity [lbs] Max. speed
  d1 d2 b1 radial stat. [rpm]
 B608P6B0 8 24 7 18 2200 Upon request
 B608P8B3E 8 48 14 31.5 1800 Upon request
 B6000P8B0 10 30 8 24.75 2200 Upon request
 B6000PP3B0 10 30 8 24.75 2200 5.97 USD
 B6201P9B3E 12 60 12 36 1600 19.12 USD
