xiros® ball bearing pillow block, fixed

Special properties at a glance:

  • Totally corrosion resistance
  • Lubrication- and maintenance
  • Non-magnetic and washable
  • Predictable lifetime
  • Compact design
  • Low weight
  • Electrically insulating

Temperature range:

  • xiros B180, -40° F to +176° F

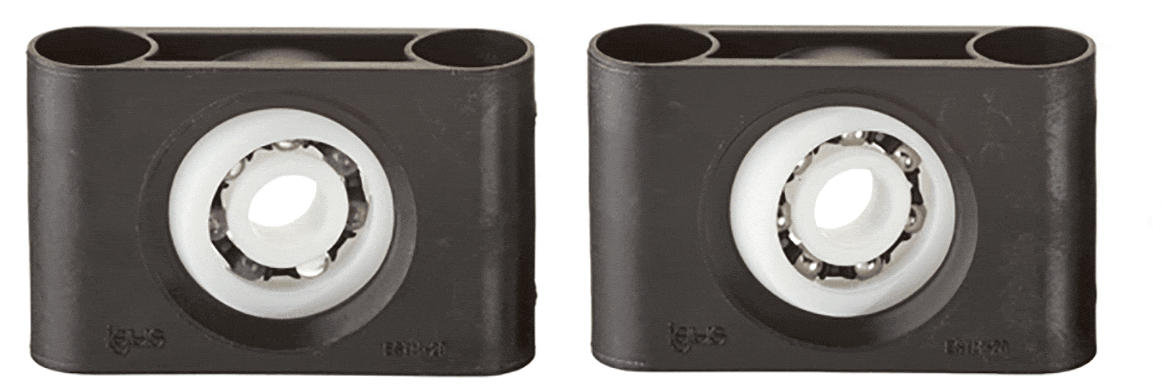

Ball bearing pillow block (Left-right) Glass balls and stainless steel balls

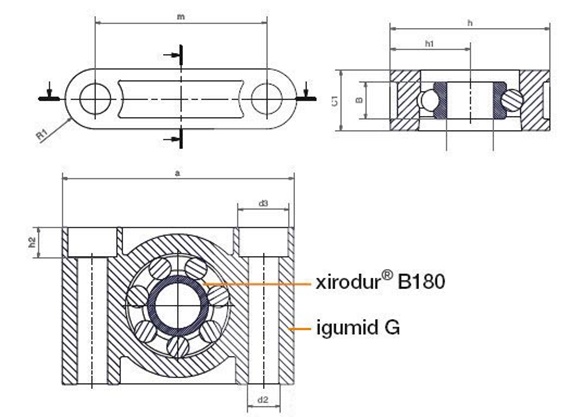

ball bearing pillow block

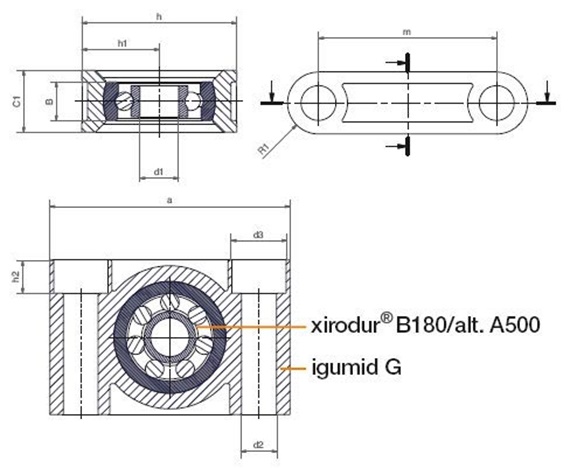

pillow block ball bearing
xiros® pillow blocks, with ball bearings made from glass or stainless steel, are a combination of xiros® plastic ball bearings and igubal® spherical bearing housings.

Industries: Plant construction, medical technology, etc.

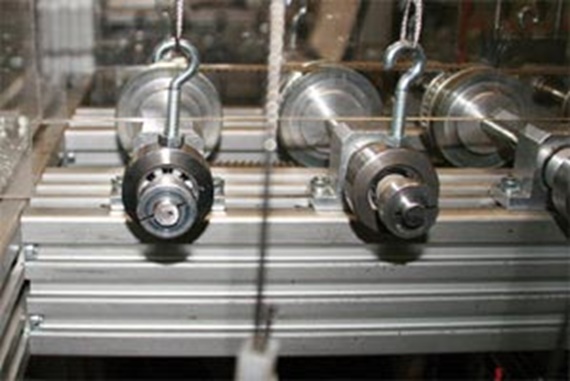

Ball bearing testing Ball bearing testing at the igus® test laboratory

d1 [mm]:



Balls:


Part No. Balls Inner
Ø d1 		Bore
Ø d2 		d3 h h1 h2 a m C1 B R1
    [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F06-B180-ES 316 SS 6 5.5 22 11 0 36 26 10 6 5 13.41 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F10-B180-ES 316 SS 10 6.6 10,6 34 17 6.4 50 37 13 8 6.5 16.20 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F20-B180-ES 316 SS 20 9 14,0 48 24 8.6 72 54 18 12 9 16.04 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F06-B180-GL Glass 6 5.5 22 11 0 36 26 10 6 5 17.86 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F10-B180-GL Glass 10 6.6 10,6 34 17 6.4 50 37 13 8 6.5 19.31 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F20-B180-GL Glass 20 9 14,0 48 24 8.6 72 54 18 12 9 13.00 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F25-B180-ES-SL 25 36.5 78.5 76.47 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F15-B180-ES-SL 15 30.2 68.2 74.03 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F17-B180-ES-SL 17 30.2 68.2 74.03 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F20-B180-ES-SL 20 30.2 68.2 74.03 USD Add to shopping cart
Delivery time on request ESTM-BB1-F30-B180-ES-SL 30 42.9 89.9 99.90 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Temperatures up to 248°F: ESTM-…..202

Part No. Max. stat.
load
axial 		Stat.
load
rating 		Dyn.
load
rating 		Limit
speed
Weight
[lbs] [lbs] [lbs] [g]
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F06-B180-ES 95 50 70 2600 7.7 13.41 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F10-B180-ES 285 85 119 1200 20.2 16.20 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F20-B180-ES 400 210 294 1150 54.1 16.04 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F06-B180-GL 95 50 70 2600 6.7 17.86 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F10-B180-GL 285 85 119 1200 18.2 19.31 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F20-B180-GL 400 210 294 1150 47.7 13.00 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-F25-B180-ES-SL 480 520 76.47 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F15-B180-ES-SL 270 350 74.03 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F17-B180-ES-SL 280 360 74.03 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-F20-B180-ES-SL 290 370 74.03 USD Add to shopping cart
Delivery time on request ESTM-BB1-F30-B180-ES-SL 500 550 99.90 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Temperatures up to 248°F: ESTM-…..202

xiros® pillow block bearing, pivoting

pillow block bearing
The pivoting option of this ball bearing-pillow block hybrid compensates for misalignment. The same features are applicable to both options (see above). The maximum tilt angle is 5°.
bearing pillow block

d1 [mm]:



Balls:


Part No.   Balls Inner
Ø d1 		Bore
Ø d2 		d3 h h1 h2 a m C1 B R1
      [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-P08-B180-ES pivoting Stainless steel 8 6.6 10,6 34 17 6.4 50 37 13 8 6.5 18.01 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-P10-B180-ES pivoting Stainless steel 10 9 14,0 40 20 8.6 62 46 16 10 8 14.32 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-P12-B180-ES pivoting Stainless steel 12 9 14,0 48 24 8.6 72 54 18 12 9 23.31 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-P08-B180-GL pivoting Glass 8 6.6 10,6 34 17 6.4 50 37 13 8 6.5 22.72 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-P10-B180-GL pivoting Glass 10 9 14,0 40 20 8.6 62 46 16 10 8 24.13 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-P12-B180-GL pivoting Glass 12 9 14,0 48 24 8.6 72 54 18 12 9 23.98 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Temperatures up to 248°F: ESTM-…..202

Part No. Max. stat.
load
axial 		Stat.
load
rating 		Dyn.
load
rating 		Limit
speed
Weight
  [N] [N] [N] [rpm] [g]
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-P08-B180-ES 165 60 84 2200 19.6 18.01 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-P10-B180-ES 285 85 119 1900 32.9 14.32 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-P12-B180-ES 315 105 147 2000 54.8 23.31 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) ESTM-BB1-P08-B180-GL 165 60 84 2200 18.2 22.72 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-P10-B180-GL 285 85 119 1900 30.3 24.13 USD Add to shopping cart
Ready to ship within 6-8 weeks (temporarily) ESTM-BB1-P12-B180-GL 315 105 147 2000 52.8 23.98 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Temperatures up to 248°F: ESTM-…..202

More information:

xiros® Material data
xiros® Polymer ball bearing design, applications, development and testing
