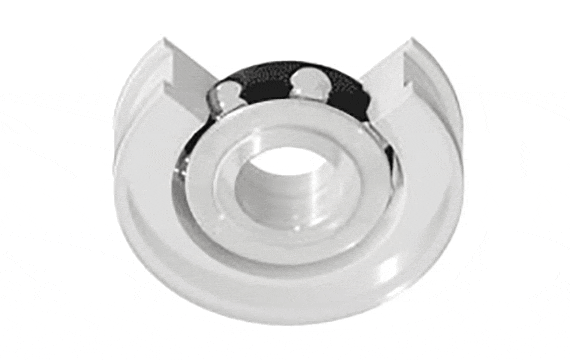

Manufactured with low-cost xiros® B180
Washable and non-magnetic
Prevents unnecessary belt wear
Low friction value
Used as belt tensioner or guide roller in various applications
| Ordering number | Inner-Ø | Outer-Ø | Outer-Ø | Height | Height | load capacity | max speed | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | d2 | d3 | b1 | b2 | stat.[N] | dyn.[N] | [rpm] | [g] | |||
| BC608FF26B1E | 8 | 26 | 28 | 4 | 7 | 60 | 84 | 2200 | 6.1 | Upon request | |
| BC608FF26B1G | 8 | 26 | 28 | 4 | 7 | 60 | 84 | 2200 | 4.8 | Upon request | |
| Ordering number | Cage | Balls | ||
|---|---|---|---|---|
| BC608FF26B1E | B180 | Stainless steel | Upon request | |
| BC608FF26B1G | B180 | Glass | Upon request |
