Self-lubricating and maintenance free.
Electrically conductive (ESD protection).
Economical
Lightweight.

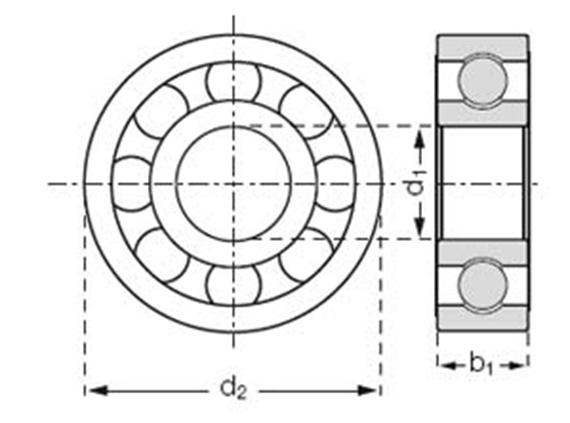

d1 [mm]: |
|
| Ordering number | Inner-Ø | Outer Ø | Width | Max. stat. | load capacity | Max. | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load capacity | stat. | Dyn. | Number of revolutions | ||||||||
| d1 | d2 | b1 | axial [lbs] | [lbs] | [lbs] | [rpm] | [g] | ||||
| BB-6005-F180-10-ES | Upon request | ||||||||||
| B6005F5E | Upon request | ||||||||||
| B623F1E | 3 | 10 | 4 | 5.63 | 7.65 | 6.75 | 4500 | 0.4 | Upon request | ||
| B624F1E | NEW | 4 | 13 | 5 | 7.42 | 10.13 | 9.45 | 4000 | 1 | Upon request | |
| B625F1E | NEW | 5 | 16 | 5 | 8.55 | 12.38 | 16.88 | 3700 | 1.6 | Upon request | |
| BB-626-F180-10-ES | 6 | 19 | 6 | 9.22 | 13.05 | 21.38 | 3200 | 2.1 | 7.44 USD | ||
| BB-608-F180-10-ES | 8 | 22 | 7 | 23.63 | 34.2 | 37.13 | 2200 | 3.8 | 8.23 USD | ||
| B6000F1E | 10 | 26 | 8 | 28.35 | 31.5 | 64.13 | 2200 | 5.9 | Upon request | ||
| B6001F1E | NEW | 12 | 28 | 8 | 30.6 | 38.25 | 70.88 | 2000 | 6.9 | Upon request | |
| B6002F1E | NEW | 15 | 32 | 9 | 33.08 | 43.88 | 76.05 | 1800 | 8.9 | Upon request | |
| BB-6003-F180-10-ES | NEW | 17 | 35 | 10 | 52.65 | 74.25 | 81 | 1600 | 10.7 | 12.61 USD | |
| B6004F1E | NEW | 20 | 42 | 12 | 55.35 | 72 | 90 | 1400 | 13.4 | Upon request | |
| B623F5E | NEW | 3 | 10 | 4 | 5.63 | 7.65 | 6.75 | 4400 | 0.4 | Upon request | |
| B624F5E | NEW | 4 | 13 | 5 | 7.42 | 10.13 | 9.45 | 3900 | 0.9 | Upon request | |
| BB-625-F180-50-ES | NEW | 5 | 16 | 5 | 8.55 | 12.38 | 16.88 | 3600 | 1 | 9.24 USD | |
| BB-626-F180-50-ES | NEW | 6 | 19 | 6 | 9.22 | 13.05 | 21.38 | 3200 | 2.2 | 9.67 USD | |
| B608F5E | NEW | 8 | 22 | 7 | 23.63 | 34.2 | 37.13 | 2500 | 3.9 | Upon request | |
| BB-6000-F180-50-ES | NEW | 10 | 26 | 8 | 28.35 | 31.5 | 64.13 | 2100 | 6.1 | 12.15 USD | |
| B6001F5E | NEW | 12 | 28 | 8 | 30.6 | 38.25 | 70.88 | 2000 | 4.5 | Upon request | |
| BB-6002-F180-50-ES | NEW | 15 | 32 | 9 | 33.08 | 43.88 | 76.05 | 1800 | 6.2 | 14.52 USD | |
| B6003F5E | NEW | 17 | 35 | 10 | 52.65 | 74.25 | 81 | 1600 | 11.1 | Upon request | |
| B6004F5E | NEW | 20 | 42 | 12 | 55.35 | 72 | 90 | 1400 | 20.2 | Upon request | |
| Order number | Race | Cage | Balls | ||
|---|---|---|---|---|---|
| BB-6005-F180-10-ES | Upon request | ||||
| B6005F5E | Upon request | ||||
| B623F1E | F180 | PA | Stainless steel | Upon request | |
| B624F1E | F180 | PA | Stainless steel | Upon request | |
| B625F1E | F180 | PA | Stainless steel | Upon request | |
| BB-626-F180-10-ES | F180 | PA | Stainless steel | 7.44 USD | |
| BB-608-F180-10-ES | F180 | PA | Stainless steel | 8.23 USD | |
| B6000F1E | F180 | PA | Stainless steel | Upon request | |
| B6001F1E | F180 | PA | Stainless steel | Upon request | |
| B6002F1E | F180 | PA | Stainless steel | Upon request | |
| BB-6003-F180-10-ES | F180 | PA | Stainless steel | 12.61 USD | |
| B6004F1E | F180 | PA | Stainless steel | Upon request | |
| B623F5E | F180 | PE | Stainless steel | Upon request | |
| B624F5E | F180 | PE | Stainless steel | Upon request | |
| BB-625-F180-50-ES | F180 | PE | Stainless steel | 9.24 USD | |
| BB-626-F180-50-ES | F180 | PE | Stainless steel | 9.67 USD | |
| B608F5E | F180 | PE | Stainless steel | Upon request | |
| BB-6000-F180-50-ES | F180 | PE | Stainless steel | 12.15 USD | |
| B6001F5E | F180 | PE | Stainless steel | Upon request | |
| BB-6002-F180-50-ES | F180 | PE | Stainless steel | 14.52 USD | |
| B6003F5E | F180 | PE | Stainless steel | Upon request | |
| B6004F5E | F180 | PE | Stainless steel | Upon request |
