Ball bearings in inch dimensions

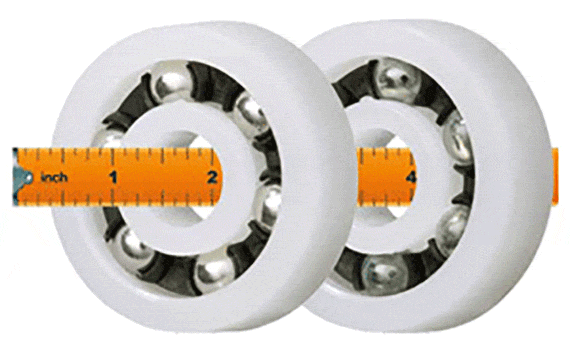

xiros® B180 in inch sizes

The inch dimensions are finding their way into the range of xiros® B180 polymer ball bearings! In combination with the PA cage and either glass or stainless steel balls, they offer a long service life and excellent value for money. For use up to 176°F, they are corrosion resistant and maintenance and self-lubricating.

Non-magnetic and washable

Corrosion-resistant

Predictable service life

Lifetime predictable

Electrically insulating

Areas of use of the ball bearingsMedical technology, plant construction, cleanroom technology, conveyor technology.

Cage:
Balls:
b1 [inch]:
d1 [inch]:
d2 [inch]:
Weight:

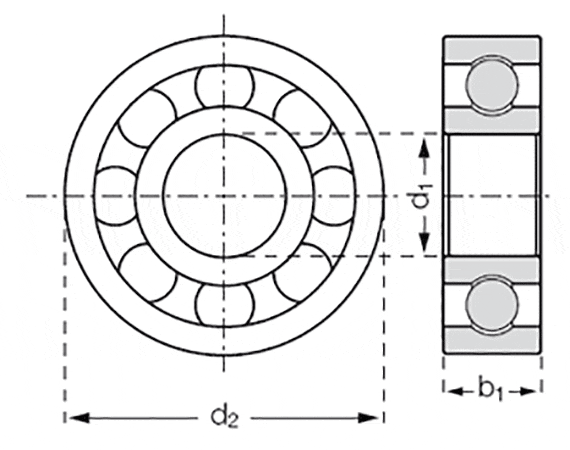

Dimensions [inch]

Ordering number	Inner-Ø	Outer-Ø	Width	Max. static load rating	Load capacity		Max speed	Weight
	d1 [Inch]	d2 [Inch]	b1 [Inch]	axial [N]	stat. [N]	dyn. [N]	[min^-1]	[g]
BB-I-0620-06-B180-10-ES	3/16	5/8	10/51	11.03	45	35	3700	1.6	3.59 USD
BB-I-0820-06-B180-10-ES	1/4	5/8	10/51	11.47	47	40	3500	1.3	3.70 USD
BB-I-0824-07-B180-10-ES	1/4	3/4	7/32	16.88	60	50	3200	1.6	3.70 USD
BI122810B1E	3/8	7/8	5/16	20.03	70	55	2200	3.9	10.17 USD
BB-I-1236-12-B180-10-ES	3/8	1 1/8	3/8	64.13	134	75	1900	4.9	5.68 USD
BB-I-1636-12-B180-10-ES	1/2	1 1/8	3/8	33.75	134	75	2000	7.6	5.35 USD
BB-I-2044-12-B180-10-ES	5/8	1 3/8	3/8	43.43	170	78	1600	11	6.36 USD
BB-I-2452-16-B180-10-ES	3/4	1 5/8	1/2	65.25	260	81	1400	20.1	6.83 USD
BB-I-3264-16-B180-10-ES	1	2	1/2	72	275	85	1050	27.3	8.77 USD
BB-I-0620-06-B180-10-GL	3/16	5/8	10/51	11.03	45	35	3700	1	5.75 USD
BI082407B1G	1/4	3/4	7/32	16.88	60	50	3200	1	14.14 USD
BB-I-1236-12-B180-10-GL	3/8	1 1/8	3/8	64.13	134	75	1900	2.9	6.54 USD
BB-I-1636-12-B180-10-GL	1/2	1 1/8	3/8	33.75	134	75	2000	5.2	6.58 USD
BB-I-2044-12-B180-10-GL	5/8	1 3/8	3/8	43.43	170	78	1600	7.9	7.69 USD
BB-I-2452-16-B180-10-GL	3/4	1 5/8	1/2	65.25	260	81	1400	13.6	7.83 USD
BB-I-3264-16-B180-10-GL	1	2	1/2	72	275	85	1050	21.3	10.13 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Dimensions [inch]

Order number	Race	Cage	Balls
BB-I-0620-06-B180-10-ES	B180	PA	stainless steel 1.4401	3.59 USD
BB-I-0820-06-B180-10-ES	B180	PA	stainless steel 1.4401	3.70 USD
BB-I-0824-07-B180-10-ES	B180	PA	stainless steel 1.4401	3.70 USD
BI122810B1E	B180	PA	stainless steel 1.4401	10.17 USD
BB-I-1236-12-B180-10-ES	B180	PA	stainless steel 1.4401	5.68 USD
BB-I-1636-12-B180-10-ES	B180	PA	stainless steel 1.4401	5.35 USD
BB-I-2044-12-B180-10-ES	B180	PA	stainless steel 1.4401	6.36 USD
BB-I-2452-16-B180-10-ES	B180	PA	stainless steel 1.4401	6.83 USD
BB-I-3264-16-B180-10-ES	B180	PA	stainless steel 1.4401	8.77 USD
BB-I-0620-06-B180-10-GL	B180	PA	Glass	5.75 USD
BI082407B1G	B180	PA	Glass	14.14 USD
BB-I-1236-12-B180-10-GL	B180	PA	Glass	6.54 USD
BB-I-1636-12-B180-10-GL	B180	PA	Glass	6.58 USD
BB-I-2044-12-B180-10-GL	B180	PA	Glass	7.69 USD
BB-I-2452-16-B180-10-GL	B180	PA	Glass	7.83 USD
BB-I-3264-16-B180-10-GL	B180	PA	Glass	10.13 USD

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

Recommended hole and shaft tolerance for xiros® radial grooved ball bearings
As standard, we recommend an H7 tolerance for the housing bore of the xiros® radial grooved ball bearing and an h6 tolerance for the shaft. If you have any particular questions about the design of your hole and shaft, we'd be glad to hear from you.

Ready to ship within 4-6 weeks (temporarily)

Ready to ship within 6-8 weeks (temporarily)
