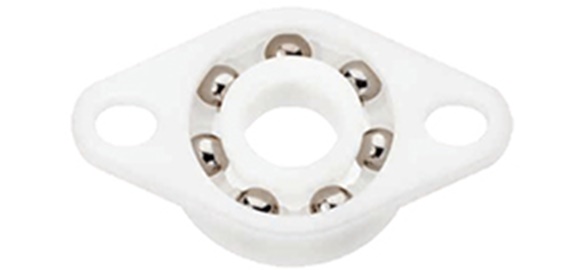

Flange ball bearing made from xiros® B180

Easy to screw on and fix

For roughly tolerance housing bores

Mounting in sheet metal



Typical applications:3D printers, material handling, …

Flange ball bearing
B180
Delivery program:
Part No.:
Dimensions [mm]
Ordering number Inner Ø Outer Ø Height Load capacity Max speed Weight
  d1 d2 h1 Axial rad. stat rad. dyn [rpm] [g]
 BFL626B3E 6 19 7 7.88 13.5 13.95 3200 3.6 5.35 USD
 BFL608B3E 8 22 7 7.88 18 20.7 2400 3.6 5.61 USD
 BFL6000B3E 10 26 7 7.88 24.75 29.25 2200 3.6 8.09 USD
 BFL6001B3E 12 28 0 0 29.25 33.08 2000 3.6 9.63 USD
 BFL6003B3E 17 35 0 0 36 49.5 1600 3.6 10.03 USD
 BFL6004B3E 20 42 0 0 56.25 72 1400 3.6 11.54 USD
More about selected part:
3D-CAD Product page Sample request Experts PDF Quote request Price list myCatalog
