Double row grooved ball bearing

xiros® B180, double row design

The double-row radial grooved ball bearing made from our material xiros® B180 is wider and can therefore cope with higher loads, whereby only one component has to be fitted. Tribologically optimized and less expensive than two comparable, single-row xiros® B180 ball bearings, the double-row polymer ball bearing can be used up to 176 °F and can be supplied with PA cage and stainless steel or glass balls.

Higher loads

Self-lubricating, maintenance-free

Corrosion resistant and non-magnetic

For temperatures up to 176ºF


Application areas:Materials handling, packaging technology, special machinery construction.

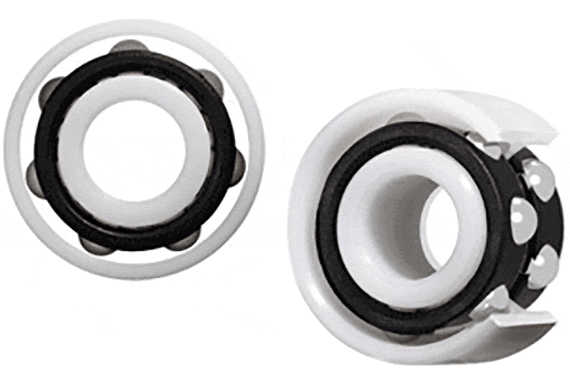

xiros® Double row

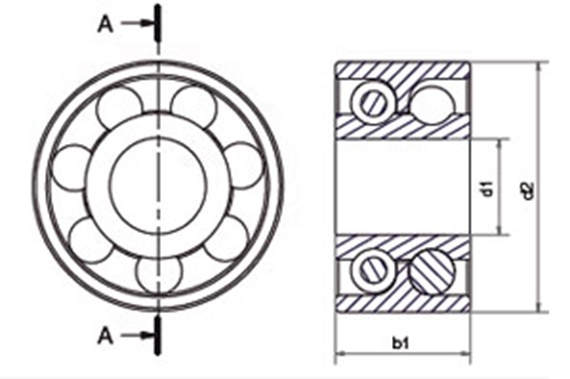

double row ball bearing
Ordering number Inner-Ø Outer Ø Width Max. stat.
load
Load capacity Limit speed Weight
  d1 [mm] d2 [mm] b1 [mm] axial [lbs] stat. [lbs] dyn. [lbs] [rpm] [g]
 BB-6000-B180-10-ES-D 10 26 14 225 45 54 1000 11 8.48 USD
 BB-6004-B180-10-ES-D 20 42 20 146.25 94.5 105.75 650 36 12.25 USD
 BB-6000-B180-10-GL-D 10 26 14 225 45 54 1000 7 Upon request
 BB-6004-B180-10-GL-D 20 42 20 146.25 94.5 105.75 650 29 Upon request
More about selected part:
3D-CAD Product page Sample request Experts PDF Quote request Price list myCatalog
Order number Race Cage Balls
 BB-6000-B180-10-ES-D B180 PA - 8.48 USD
 BB-6004-B180-10-ES-D B180 PA - 12.25 USD
 BB-6000-B180-10-GL-D B180 - - Upon request
 BB-6004-B180-10-GL-D B180 - - Upon request
More about selected part:
3D-CAD Product page Sample request Experts PDF Quote request Price list myCatalog

Recommended hole and shaft tolerance for xiros® radial grooved ball bearings
As standard, we recommend an H7 tolerance for the housing bore of the xiros® radial grooved ball bearing and an H6 tolerance for the shaft. If you have any particular questions about the design of your hole and shaft, we'd be glad to hear from you.
