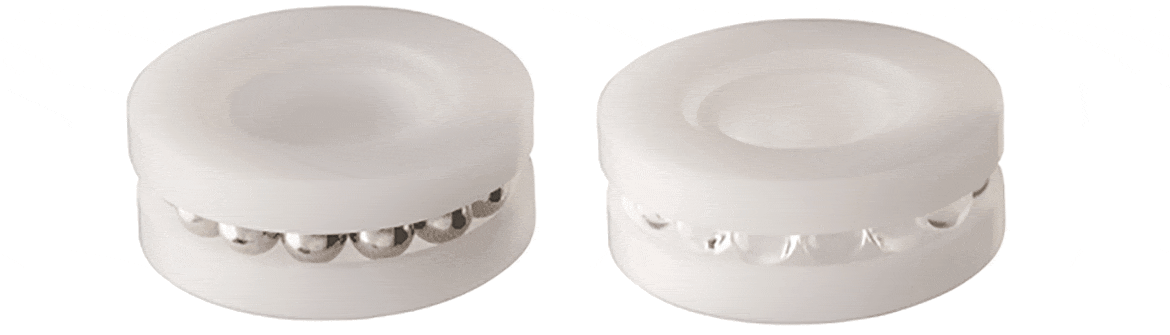

xiros® B180 axial ball bearing

The ball bearing for axial forces

Axial ball bearing

xiros® B180 axial grooved ball bearing

The xiros® B180 ball bearing material is extremely media-resistant yet, at the same time, low priced. xiros® B180 can be used in the temperature range of up to +176°F.

Self-lubricating, maintenance-free

Corrosion- and chemical-resistant

Non-magnetic and washable

Lifetime predictable

Low friction

Electrically insulating

Balls:

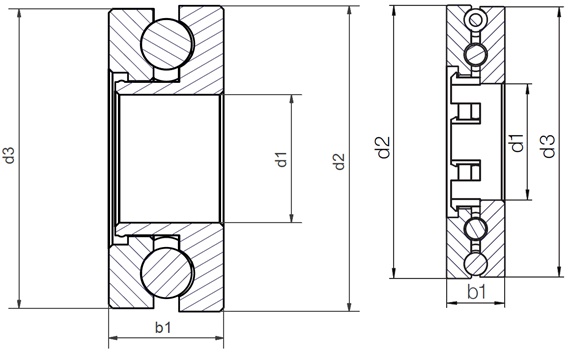

Dimensions of axial ball bearings [mm]

Part. No.   Connector Housing Ball d1 d2 d3 h
        [mm] [mm] [mm] [mm]
BA51100BE B180 Stainless steel 10 24 23,5 9 12.25 USD Add to shopping cart
B51104B0E B180 Stainless steel 20 35 10 12.25 USD Add to shopping cart
BA51100BG B180 Glass 10 24 23,5 9 15.00 USD Add to shopping cart
B51104B0G B180 Glass 20 35 10 10.74 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

Technical data of xiros® B180 axial ball bearing

Part. No. stat. carrying capacity dyn. carrying capacity max speed Weight
  [N] [N] [min-1] [g]
BA51100BE 200 250 500 6.9
B51104B0E 650 810 460 14
BA51100BG 200 250 500 4.4
B51104B0G 650 810 460 8
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

More designs:

xiros® B180 double row axial ball bearing

Double-row design for higher loads

Thrust washer - xiros® B180

Small installation height at a small price

xiros® B180 axial ball transfer unit

For higher loads - Self-aligning and resistant to dirt
