Robolink draw wire grippers - other grippers adaptable
Robolink draw wire grippers:
Material: PA 2200
Tensile strength open, elasticity closed
Stop dog Robolink tube
Various grippers are adaptable. Standard adapters (from PA 2200) currently available for the following products: FESTO: DHPS-10-A-NC; HGWM-08-Ex-G7; HGWM-12-EX-G7; adaptive grippers. SCHUNK: SGB-32; SGW-40.
2 or 3-jaw gripper with electric motor
Simple Plug & Play – compatible with all Robolink systems and can be universally adapted
self-locking drive – even if the power fails, the work piece remains firmly gripped
replaceable jaws for different applications
universal jaws for quick attachment change (RL-50-GRI-02-02-E)
integrated DC motor with planetary gears
Technical data [mm]
2-jaw gripper
RL-50-GRI-02-…

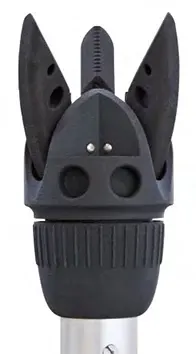

3-jaw gripper
RL-50-GRI-03-…
Nominal voltage
24V DC
24V DC
Control signal
24V DC
24V DC
Current draw
0,2 A
0,2 A
Control signal
< 10 mA
< 10 mA
DC motor output
3,6 W
3,6 W
Tensioning force
50 N
50 N
Stroke
2 x 20°
3 x 20°
Max. cycles per minute
50
50
Closing / opening time
0,5 s
0,5 s
Fitting
M8x1 – 3pol
M8x1 – 3pol
Protection class
IP42
IP42
Weight
180 g
200 g
Material
PA2200
PA2200
