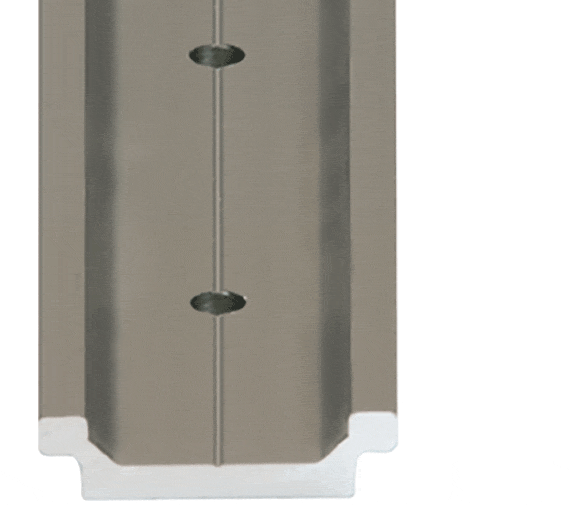

- drylin® W Double Guide Rails

You are now leaving igus.ca

The selection of the country/region page can influence various factors such as price, shipping options and product availability.

When switching pages, we will try to match the items in your shopping cart with those available for your country.
Please check your shopping cart after switching, thank you!


WSQ-06-30 ⁽¹⁾	0.302	0.55	0.2	3000	1.06	1.18	0.16	0.16	0.3	0.89	0.59	0	74.12 USD
WSQ-10-40 ⁽¹⁾	0.618	0.79	0.3	4000	1.42	1.57	0.22	0.22	0.43	1.18	0.79	0	78.13 USD
WSQ-10-80 ⁽²⁾	0.948	0.79	0.3	4000	2.76	2.91	0.22	0.22	0.43	1.06	0.67	1.57	138.46 USD
WSQ-10-120 ⁽²⁾	1.358	0.79	0.3	4000	4.57	4.72	0.22	0.22	0.43	1.18	0.79	3.15	152.46 USD
WSQ-16-60	1.237	1.06	0.45	4000	2.13	2.28	0.3	0.14	0.55	1.69	1.14	1.18	144.60 USD
WSQ-20-80	2.218	1.42	0.59	4000	2.91	3.23	0.37	0.18	0.79	1.5	0.83	1.57	199.12 USD


WSQ-06-30 ⁽¹⁾	60	20	49.5	20	49.5	M5*	19000	1250	1100	200	74.12 USD
WSQ-10-40 ⁽¹⁾	120	20	79.5	20	79.5	M6	71600	5580	3000	610	78.13 USD
WSQ-10-80 ⁽²⁾	120	20	79.5	20	79.5	M6	335000	7070	8300	700	138.46 USD
WSQ-10-120 ⁽²⁾	120	20	79.5	20	79.5	M6	1175000	8000	18400	760	152.46 USD
WSQ-16-60	120	20	79.5	20	79.5	M8	324700	20500	9400	1700	144.60 USD
WSQ-20-80	120	20	79.5	20	79.5	M8	1145000	75300	23600	4500	199.12 USD

Country/Region

By selecting your country you will be shown local offers and information.

Language settings

Select preferred language:

Page not found

The selected page is not available for . Would you like to switch to the country's homepage instead?

Cancel

Okay

Shopping Cart

The selected article has been added to your shopping cart.
From here you can initiate enquiries or orders.

Continue purchasing

Go to shopping cart

Shopping Cart

It was not possible to add the selected article to the shopping cart.

Okay

Please choose your delivery location

Quick assembly

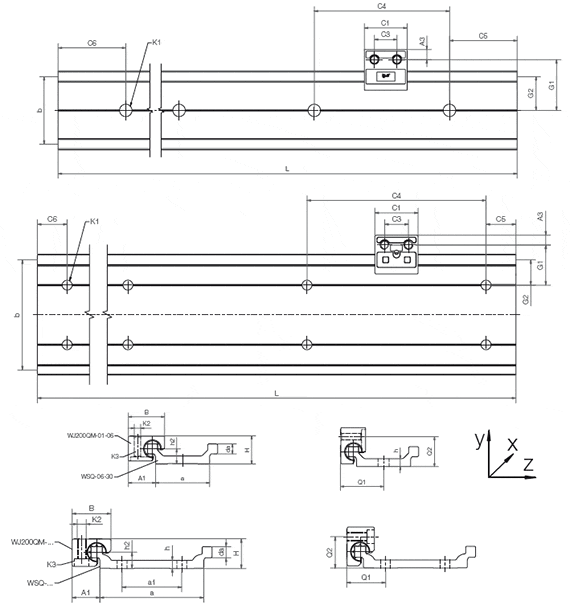

Guide rails dimensions [mm]

More about selected part:

More about selected part:

Ordering number	Weight	H	da	di	L	a	b	h	h1	h2	G1	G2	a1*
	[kg/m]	±0,07	-0,1		max.	-0,3
WSQ-06-30 ⁽¹⁾	0.302	0.55	0.2	0	3000	1.06	1.18	0.16	0.16	0.3	0.89	0.59	0	74.12 USD
WSQ-10-40 ⁽¹⁾	0.618	0.79	0.3	0	4000	1.42	1.57	0.22	0.22	0.43	1.18	0.79	0	78.13 USD
WSQ-10-80 ⁽²⁾	0.948	0.79	0.3	0	4000	2.76	2.91	0.22	0.22	0.43	1.06	0.67	1.57	138.46 USD
WSQ-10-120 ⁽²⁾	1.358	0.79	0.3	0	4000	4.57	4.72	0.22	0.22	0.43	1.18	0.79	3.15	152.46 USD
WSQ-16-60	1.237	1.06	0.45	0	4000	2.13	2.28	0.3	0.14	0.55	1.69	1.14	1.18	144.60 USD
WSQ-20-80	2.218	1.42	0.59	0	4000	2.91	3.23	0.37	0.18	0.79	1.5	0.83	1.57	199.12 USD

Ordering number	C4	C5		C6		K1 for screws	hy	lz	Wby	Wbz
		Min.	max.	Min.	max.	DIN 912	[mm⁴]	[mm⁴]	[mm³]	[mm³]
WSQ-06-30 ⁽¹⁾	60	20	49.5	20	49.5	M5*	19000	1250	1100	200	74.12 USD
WSQ-10-40 ⁽¹⁾	120	20	79.5	20	79.5	M6	71600	5580	3000	610	78.13 USD
WSQ-10-80 ⁽²⁾	120	20	79.5	20	79.5	M6	335000	7070	8300	700	138.46 USD
WSQ-10-120 ⁽²⁾	120	20	79.5	20	79.5	M6	1175000	8000	18400	760	152.46 USD
WSQ-16-60	120	20	79.5	20	79.5	M8	324700	20500	9400	1700	144.60 USD
WSQ-20-80	120	20	79.5	20	79.5	M8	1145000	75300	23600	4500	199.12 USD
