DryLin® telescopic rails

DryLin® NT telescopic rails

Completely self-lubricating linear extensions in continuous stroke lengths of 100mm to 600mm - maximum pulled-out length: 1200mm. The telescopic rails consist of anodized aluminum guide rails and a gliding block made of the proven iglidur material. By the in-compounded solid lubricants, iglide tribopolymers enable dry operation in every application. The advantage of the telescopic rails - besides being maintenance-free - is the carefree use in clean hygienic environments. No oil or fat can be transmitted to other products, clothing or people. Applications even in cleanroom air showers were already implemented by telescopic rails. But the dry operation also has advantages in the dirt accumulation area. Dirt particles do not stick to the guide and do not become a sticky mass. As an option, all telescopic rails can be delivered with a detente in start-medium-end position. Requirements for individually positioned locking positions can be met by telescopic rails.

NT-35-"L"

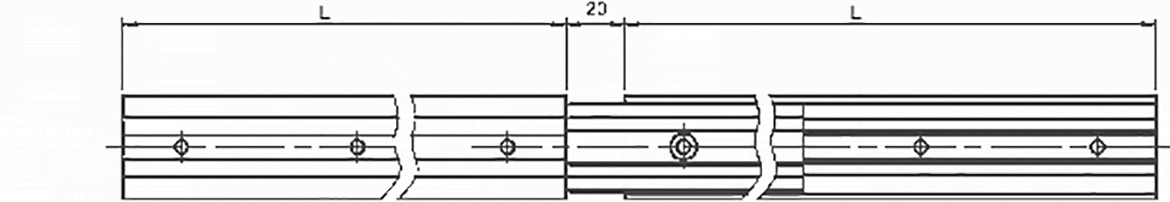

NT-35-"L"-"L+20"

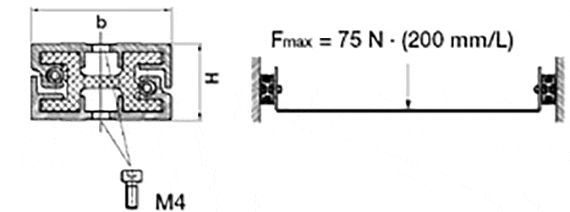

NT-35-"L"-"B"
