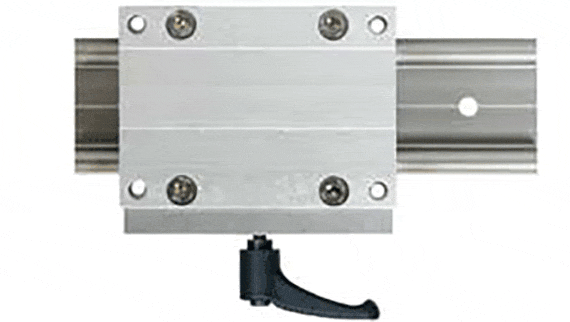

drylin® W hand clamp for higher forces

Special properties

Available both as individual clamping and mounted on the carriage

Clamping force based on tightening torque

Clamping by friction locking

Hint:

The creep behavior of the clamped plastic causes a slackening in clamping force over time (up to 70%). Therefore safety-related parts should not be clamped.

W manual clamping

drylin® W hand clamp for higher holding forces

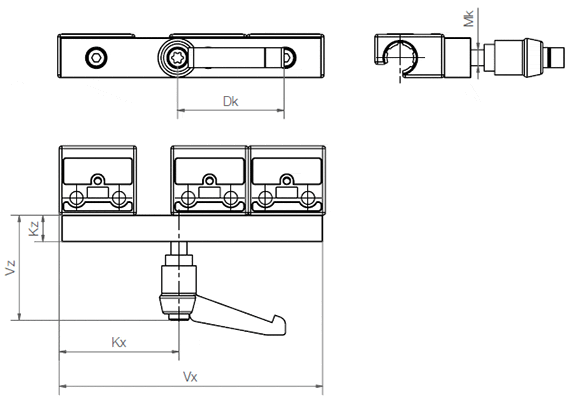

Order no. Mk Vx Kx Vz Kz Dk min.
holding force
(Requirement dry
rail surface)
[N] 		Min.
tightening torque


[Nm]
Ready to ship within 4-6 weeks (temporarily) WHKD-1010 (1) M6 100 45 40 10 40 70 2.5 72.10 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) WHKD-1015 (1) M6 150 95 40 10 40 70 2.5 80.53 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) WHKD-1615 (1) M8 150 81 40 12 40 90 3.5 91.33 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) WHKD-1620 (1) M8 200 131 40 12 40 90 3.5 94.39 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) WHKD-2015 (1) M8 150 63 40 12 40 90 3.5 116.03 USD Add to shopping cart
Ready to ship within 4-6 weeks (temporarily) WHKD-2020 (1) M8 200 113 40 12 40 90 3.5 121.66 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

(1) Requirement of dry rail surface

Ready to ship within 4-6 weeks (temporarily)
