NEW! drylin® T sizes available ...mini...adjustable & accurate...

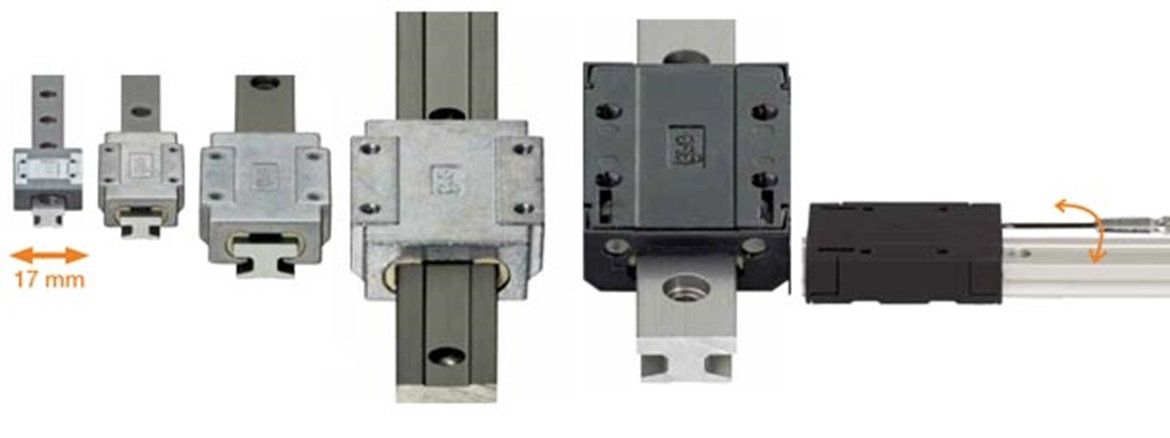

2 new versions of DryLin® T Miniature rail guide systems:

Even smaller...

For small installation space

Installtaion height 8 mm, carriage width 17 mm

Lubrication-free and easy assembly

More precision for size 12 and 15

Adjustable clearance in 8 steps

High corrosion resistance by use of re-coating finish

Quiet running

drylin® T-miniature guide systems have the same dimensions as most recirculating ball bearing guides.
Typical applications:Laboratory equipment, medical device technology, handling, electronics, etc

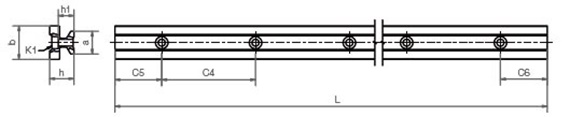

drylin® T miniatur rail guides –
dimensions [mm]

Ordering number	Weight	L	a	C4	C5	C5	C6	C6	h	h1	K1 for fcrew	b	ly	lz	Wby	Wbz
	[kg/m]	max.	-0,2		Min.	max.	Min.	max.					[mm]⁴	[mm]⁴	[mm]³	[mm]³
TS-04-07-UNGEBOHRT
TS-04-09-UNGEBOHRT
TS-04-12-UNGEBOHRT
TS-04-15-UNGEBOHRT
TS-04-07	0.08	2000	7	15	5	12	5	12	5.5	3.7	M2	8	131	90	32	29
TS-04-09	0.11	2000	9	20	5	14.5	5	14.5	6.3	4.6	M2	9.6	252	169	52	49
TS-04-12	0.2	2000	12	25	5	17	5	17	8.6	5.9	M3	13	856	574	132	120
TS-04-15	0.33	3000	15	40	10	29.5	10	29.5	10.8	7	M3	17	2420	1410	285	239

More about selected part:

3D-CAD

Sample request

Quote request

myCatalog

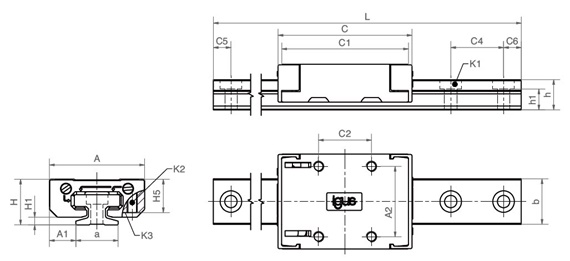

drylin® T miniatur guide carriages –
dimensions [mm]

Ordering number		Weight	H	A	C	A1	A2	C1	C2	H1	H5	K2 thread	K3 for fcrew
		[kg]	±0,2	–0,2	±0,3	±0,35				±0,35
TW-04-07	NEW	0.008	8	17	23	5	12	21	8	1.5	0	M2		16.00 USD
TW-04-07-LLZ		0.008	8	17	23	5	12	21	8	1.5	0	M2		16.00 USD
TW-04-09		0.017	10	20	29	5.5	15	18	13	1.7	7.2	M2	(M2)	21.08 USD
TW-04-09-LLY		0.017	10	20	29	5.5	15	18	13	1.7	7.2	M2	(M2)	21.08 USD
TW-04-09-LLZ		0.017	10	20	29	5.5	15	18	13	1.7	7.2	M2	(M2)	21.08 USD
TW-04-12-LLY		0.034	13	27	34	7.5	20	22	15	2.2	9.5	M3	M2 (M3)	25.64 USD
TW-04-12-LLZ		0.034	13	27	34	7.5	20	22	15	2.2	9.5	M3	M2 (M3)	25.64 USD
TW-04-12		0.034	13	27	34	7.5	20	22	15	2.2	9.5	M3	M2 (M3)	25.64 USD
TW-04-15		0.061	16	32	42	8.5	25	31	20	2.8	11	M3	M2 (M3)	31.66 USD
TW-04-15-LLY		0.061	16	32	42	8.5	25	31	20	2.8	11	M3	M2 (M3)	31.66 USD
TW-04-15-LLZ		0.061	16	32	42	8.5	25	31	20	2.8	11	M3	M2 (M3)	31.66 USD
