drylin® T Automatic: Adjusting the clearance

With drylin® T Automatic, the bearing clearance is automatically adjusted. A re-adjustment can take place automatically in steps of 0.004” (0.1 mm). Springs tighten the regulating wedge immediately as soon as the clearance is bigger than 0.1 mm and the system is unloaded.
Locked
Unlocked

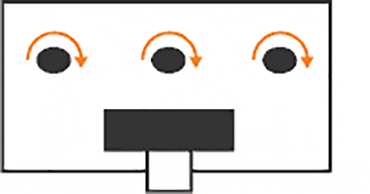

The system will be delivered with three red keys which are already fitted in the carriage. These are necessary for mounting the carriage onto the rail. In case these keys are removed, they need to be re-plugged into the openings and turned 90° clockwise.

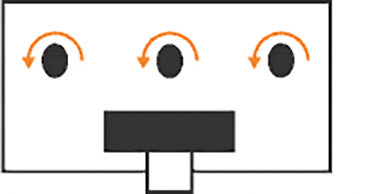

When the carriage is on the rail, remove the keys by turning them 90° anticlockwise and pulling them out. The clearance will then be adjusted automatically.
Check the clearance of the carriage. Fine adjusting can be done at this point.
You can remove the carriage at any time. In order to do so, simply plug the keys back into the cariage (see first step).
