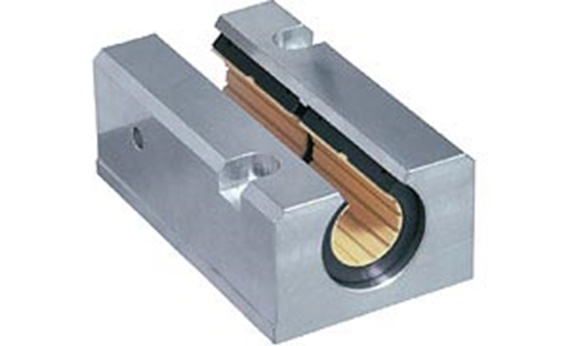

drylin® R - OTA - Pillow block, tandem design, open, mm

Special features

Housing: Aluminum

Equipped with drylin® R linear plain bearings, order number OJUM-01-ø or OJUM-03-ø

Can be combined with drylin® R housing bearing, part number OJUM-06-ø

Securing of the bearing in the housing is done using set screws

Mounting bolts DIN 912-8.8, washer DIN 7980

Recommended tolerance for the shaft: h6-h10

OTA - Pillow block, tandem design, open, mm

d [mm]:

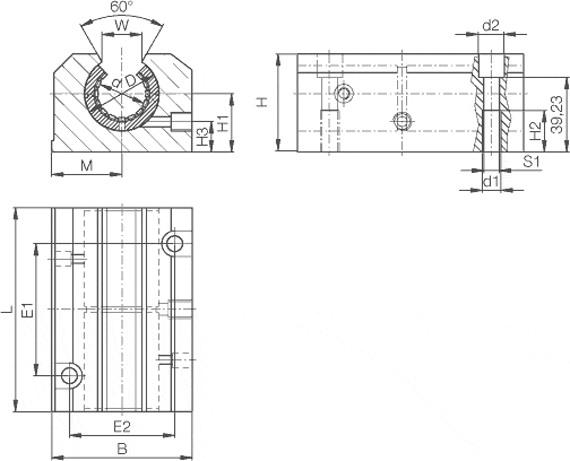

Dimensions [mm]

Order no.	d	D	H	H1	H2	H3	H4	S1	B	L	M	E1	E2	d1	d2	W
OTA-01	Standard with OJUM-01
OTA-03	Adjustment of alignment with OJUM-03
	[mm]	[mm] H6	[mm]	[mm] +0.01 -0.02	[mm]	[mm]	[mm]	[mm]	[mm]	[mm] +0.3	[mm] ±0.02	[mm] ±0.15	[mm] ±0.15	[mm]	[mm]	[mm]
OTA-01-12	12	22	30	18	13	10	25	M 6	43	76	21.5	40	30	5.2	10	14	234.98 USD
OTA-01-16	16	26	35	22	13	12	30	M 6	53	84	26.5	45	36	5.2	10	17	167.87 USD
OTA-01-20	20	32	42	25	18	13	34	M 8	60	104	30	55	45	6.8	11	17	180.51 USD
OTA-01-25	25	40	51	30	22	15	40	M 10	78	130	39	70	54	8.6	15	21	229.26 USD
OTA-01-30	30	47	60	35	26	16	48	M12	87	152	43.5	85	62	10.3	18	21	296.81 USD
OTA-01-40	40	62	77	45	34	20	60	M 16	108	176	54	100	80	14.25	20	27	444.26 USD
OTA-03-12	12	22	30	18	13	10	25	M 6	43	76	21.5	40	30	5.2	10	14	234.98 USD
OTA-03-16	16	26	35	22	13	12	30	M 6	53	84	26.5	45	36	5.2	10	17	167.87 USD
OTA-03-20	20	32	42	25	18	13	34	M 8	60	104	30	55	45	6.8	11	17	180.51 USD
OTA-03-25	25	40	51	30	22	15	40	M 10	78	130	39	70	54	8.6	15	21	229.26 USD
OTA-03-30	30	47	60	35	26	16	48	M12	87	152	43.5	85	62	10.3	18	21	296.81 USD
OTA-03-40	40	62	77	45	34	20	60	M 16	108	176	54	100	80	14.25	20	27	444.26 USD
OTA-31-12 ⁽¹⁾	12	22	30	18	13	10	25	M 6	43	76	21.5	40	30	5.2	10	14	Upon request
OTA-31-16 ⁽¹⁾	16	26	35	22	13	12	30	M 6	53	84	26.5	45	36	5.2	10	17	Upon request
OTA-31-20 ⁽¹⁾	20	32	42	25	18	13	24	M 8	60	104	30	55	45	6.8	11	17	Upon request
OTA-31-25 ⁽¹⁾	25	40	51	30	22	15	40	M 10	78	130	39	70	54	8.6	15	21	Upon request
OTA-31-30 ⁽¹⁾	30	47	60	35	26	16	48	M12	87	152	43.5	85	62	10.3	18	21	Upon request
OTA-31-40 ⁽¹⁾	40	62	77	45	34	20	60	M 16	108	176	54	100	80	14.25	20	27	Upon request
OTA-33-12 ⁽¹⁾	12	22	30	18	13	10	25	M 6	43	76	21.5	40	30	5.2	10	14	Upon request
OTA-33-16 ⁽¹⁾	16	26	35	22	13	12	30	M 6	53	84	26.5	45	36	5.2	10	17	Upon request
OTA-33-20 ⁽¹⁾	20	32	42	25	18	13	24	M 8	60	104	30	55	45	6.8	11	17	Upon request
OTA-33-25 ⁽¹⁾	25	40	51	30	22	15	40	M 10	78	130	39	70	54	8.6	15	21	Upon request
OTA-33-30 ⁽¹⁾	30	47	60	35	26	16	48	M12	87	152	43.5	85	62	10.3	18	21	Upon request
OTA-33-40 ⁽¹⁾	40	62	77	45	34	20	60	M 16	108	176	54	100	80	14.25	20	27	Upon request
