Clamps for linear modules and toothed belt axes

Fixing clamps offer a safe fastening of the drylin® linear axes on aluminium profiles. Designed for the drylin® W high-profile rail, the clamps can be inserted into the slots of the rail and used to fix the axis in place.


Secure mounting

Variable positionable

For drylin® SAW linear modules and ZLW toothed belt axes

For drylin® WSX high-profile rails

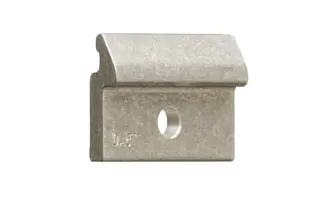

Clamp for linear modules and toothed belt axes

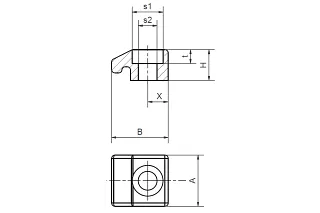

Clamps for linear modules and toothed belt axes
Part No.Suitable for toothed belt axis
ZTZ-063006ZLW-0630
75.40 ZLWZLW-1040
75.40 ZLWZLW-1080
75.50-ZLWZLW-1660

Product range (measurements in inches)

Order number B A H X s1 s2 t
Ready to ship in 24 hours ZTZ-063006 6.5 0.59 0.35 0.24 9 5,5 0.16 1.16 USD Add to shopping cart
Ready to ship within 3 working days 75.40 ZLW 1.09 1.57 0.34 0.34 0 6.4 0 2.09 USD Add to shopping cart
Delivery time on request 75.50-ZLW 1.47 1.57 0.57 0.43 0 9 0 2.15 USD Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
Quote request Quote request
myCatalog myCatalog
