Ring-shaped interior separation for the e-skin®

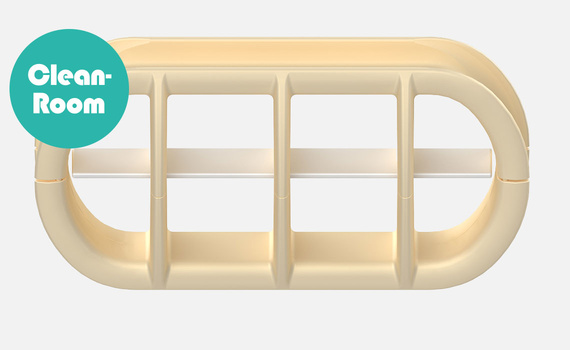

Ring-shaped interior separation system for the e-skin corrugated tube.

Minimum particle emission, maximum service life

e-skin - ring-shaped, wear-resistant interior separation system made of tribo-polymer for a long cable service life.
Sprayed-on separators on two half-shells that are placed into the e-skin cleanroom corrugated tube. iglidur J, a material known from the iglidur range of materials, is extremely wear-resistant and drastically minimises abrasion between cables.

Tech up

Further reduces cable abrasion in the e-skin energy supply system
Consists of upper and lower shells onto which separators have already been sprayed
Can be combined with shelves; highly wear-resistant thanks to tribo-plastic from the iglidur product range
For the e-skin SK, SKS, and SKY cleanroom-compatible corrugated tubes

Cost down

Longer service life of the cables due to reduced jacket abrasion
Maintenance-friendly and easy to retrofit for greater cleanroom suitability

Proof

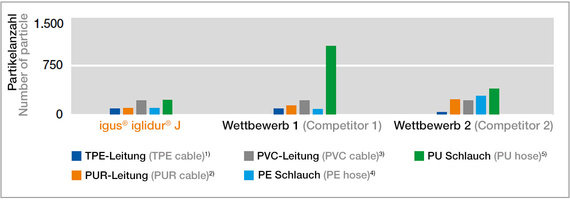

Abrasion/cable tests in the igus laboratory. The iglidur J material produces 77% less abrasion*

*Measured and averaged in use with five different friction partners: 1) CF340.250.01 2) CF270.UL.350.01.D 3) CF886.350.01 4) CAPE.A.10.0 5) CAPU.A10.0 compared to the standard material igumd G

Sustainability

Have your energy chain recycled as part of the igus "chainge recycling programme" at the end of its life cycle. Irrespective of the manufacturer. You can receive a chainge recycling programme voucher
igus supports the circular economy of plastics and is investing in chemical recycling. More about this topic at: www.igus.eu/plastic2oil

Product range:

For series	Part No.	Inner height	Part No. Full-width shelf
SK20	SK20.2.H.5	17 mm	110.30 J	Submit an enquiry now
SK28/SKS28/SKY28	SK28.3.H.5	28 mm	110.66.J	Submit an enquiry now
SK40/SKS40/SKY40	SK40.3.H.5	40 mm	110.82.J	Submit an enquiry now

Note: the interior separation system is mounted at the connecting points of the e-skin energy supply tube!

The e-skin is a corrugated tube consisting of an upper and lower shell that form a complete enclosure when connected together. The simple resealable opening mechanism enables easy maintenance and inspection of the cables inside. e-skin has many advantages over conventional corrugated tubes and it is available in 3 different versions:

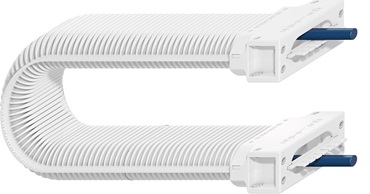

e-skin SK
For unsupported lengths up to 2.0m and installation space from 250mm

e-skin soft SKS
For unsupported length up to 1.3m and installation space from 150mm

e-skin Hybrid SKY
For unsupported length up to 1.4mm and installation space from 200mm

Free white paper:

Energy supply systems for the cleanroom

In this white paper, you will learn how the right energy guidance in the cleanroom

can increase plant effectiveness
generate greater output from the production lines
Use energy supply systems more sustainably

Download now to find out more

More information

Other energy chains

Further abrasion-resistant energy chains for cleanroom applications according to Class 1 in acc. with EN ISO 14644.

Further cleanroom products

Discover further valuable information on cleanrooms and find out about further cleanroom products.

Cleanroom test laboratory

Company's own cleanroom laboratory according to IPA certification in the igus technical centre. Cleanroom compatibility of chain applications can be quickly tested according to your requirements.
