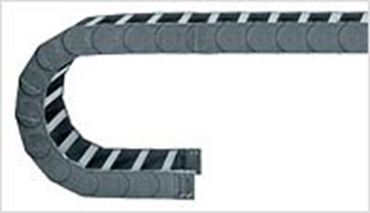

System E4/light features smaller side links and thinner crossbars when compared to standard E4 cable carriers. It's cost effective, lightweight, and still offers a large interior space for multiple cables and hoses. E4 Light works especially well in unsupported, short-travel applications and vertical hanging or standing travels.

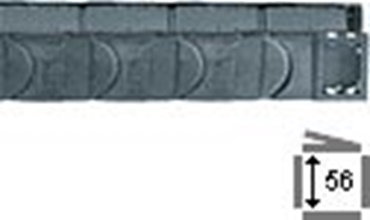

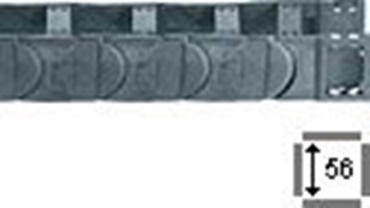

Inner height hi: 2.2 (56 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.31 - 19.68 (135 - 500 mm)
Pitch: 3.58 (91 mm)

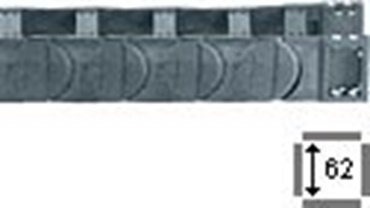

Inner height hi: 2.44 (62 mm)
Inner widths Bi: 1.97 - 15.75 (50 - 400 mm)
bending radii R: 5.31 - 19.68 (135 - 500 mm)
Pitch: 3.58 (91 mm)

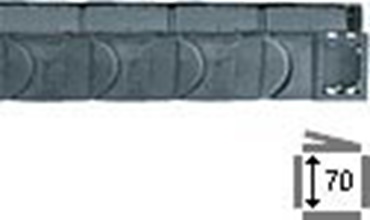

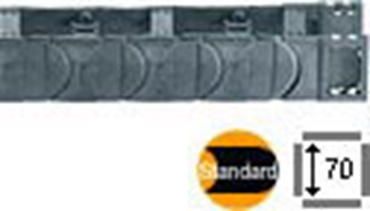

Inner height hi: 70 mm
Inner widths Bi: 50 - 600 mm
Bending radii R: 150 - 600 mm
Pitch: 91 mm

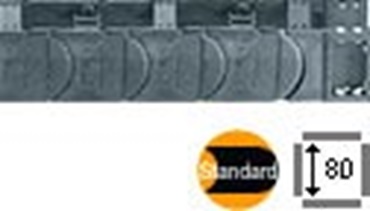

Inner height hi: 3.15 (80 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.91 - 19.68 (150 - 500 mm)
Pitch: 3.58 (91 mm)

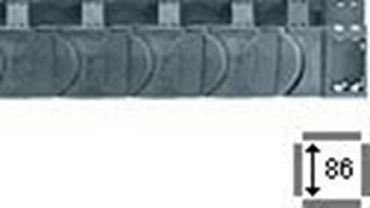

Inner height hi: 86 mm
Inner widths Bi: 50 - 600 mm
Bending radii R: 150 - 500 mm
Pitch: 91 mm

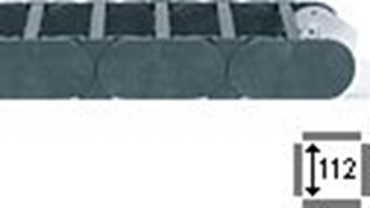

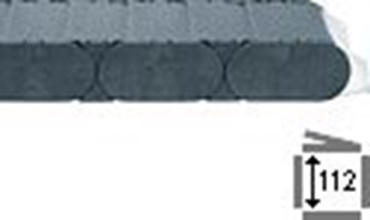

Inner height hi: 4.41 (112 mm)
Inner widths Bi: 4.92 - 23.62 (125 - 600 mm)
bending radii R: 7.87 - 23.62 (200 - 600 mm)
Pitch: 5.63 (143 mm)

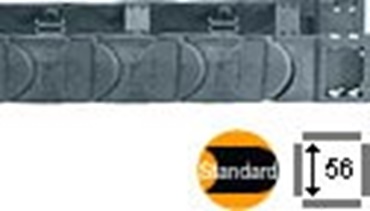

Inner height hi: 2.2 (56 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.31 - 19.68 (135 - 500 mm)
Pitch: 3.58 (91 mm)
Inner height hi: 2.44 (62 mm)
Inner widths Bi: 1.97 - 15.75 (50 - 400 mm)
bending radii R: 5.31 - 19.68 (135 - 500 mm)
Pitch: 3.58 (91 mm)
Inner height hi: 70 mm
Inner widths Bi: 50 - 600 mm
Bending radii R: 150 - 600 mm
Pitch: 91 mm

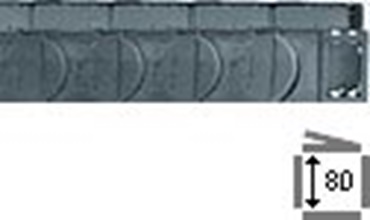

Inner height hi: 3.15 (80 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.91 - 19.68 (150 - 500 mm)
Pitch: 3.58 (91 mm)
Inner height hi: 86 mm
Inner widths Bi: 50 - 400 mm
Bending radii R: 150 - 600 mm
Pitch: 91 mm
Inner height hi: 2.2 (56 mm)
Inner widths Bi: 2.95 - 18.19 (75 - 462 mm)
bending radii R: 5.91 - 19.68 (150 - 500 mm)
Pitch: 3.58 (91 mm)
Inner height hi: 70 mm
Inner widths Bi: 50 - 600 mm
bending radii R: 200 - 600 mm
Pitch: 91 mm
Inner height hi: 3.15 (80 mm)
Inner widths Bi: 2.95 - 18.19 (75 - 462 mm)
bending radii R: 7.87 - 19.68 (200 - 500 mm)
Pitch: 3.58 (91 mm)
Inner height hi: 4.41 (112 mm)
Inner widths Bi: 7.87 - 15.75 (200 - 400 mm)
bending radii R: 9.84 - 23.62 (250 - 600 mm)
Pitch: 5.63 (143 mm)

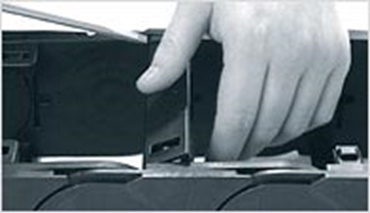

Easily open and close E4 Series energy chains. Save time and reduce costs
Lightweight
Optimized ratio of interior and exterior dimensions
Cost effective
Numerous interior separation options
Wide range of modular accessories
Narrow outer links
Maximum travel: 1,312 feet
Machine tools
Material handling
Stone-cutting machines
Woodworking machinery
Machinery, in general
Vehicles
Construction equipment
Limited long travel applications
ESD: with special material igumid ESD (available upon request)
Side-mounted, unsupported applications possible
High torsional rigidity
Quickly find the best e-chain® cable carrier for your application. Simply enter your parameters and you'll be supplied with a list of chains that will work.
How to assemble System E4/light cable carriers.
Different application examples using E4/light cable carriers from various industries all around the world.
