Precise, clearance-free plain and linear bearings for assistant robots in surgery

Profile

• What was needed: drylin® N guide rail and carriages, iglide® plastic bearings
• Requirements: high-precision, absolutely clearance-free bearings, which must be easy to clean under the high clinical specifications. In addition, no lubricants were allowed to be used in the bearings.
• Industry: medical technology
• Success for the customer: thanks to the plastic bearings used, a bone-anchored surgical instrument guidance was developed, constructed and evaluated for the first time, which is universally applicable, reusable and can be adapted to the specific patient.

Minimally invasive cochlear implant surgery is a new, gentle surgical technique for treating sensorineural deafness and profound hearing loss. This technique requires the creation of an access to the inner ear from the surface of the skull to the basal turn of the cochlea, which can be up to 35mm below the skull. As the deviations from the target point at a depth of 35mm must not be greater than 0.5mm, an assistance system is required that allows for highly accurate, intraoperative translational instrument guidance. A miniaturized, passive parallel kinematic robot was therefore developed, which can be rigidly anchored directly to the patient's skull with three basic joints. In this function, the parallel robot provides a linear guide for creating the minimally invasive access, which can be equipped with surgical instruments and customized for each patient using six length-adjustable thrust actuators.
In addition to the technical requirements, boundary conditions with regard to clinical use must also be taken into account when implementing the linear guide. Due to the high precision requirements of surgery, all of the robot's bearings and joints must be as rigid as possible and absolutely clearance-free. The same applies to the linear guide for holding a surgical drilling tool. The clinical application also includes cleaning, disinfection and steam sterilization (134°C, 3 bar, 5 minutes.) of all components.
Furthermore, conventional lubrication of the guide is not possible. Comparable requirements also apply to the rotary joints, which are used to connect two length-adjustable thrust actuators to each other: both axial and radial clearance must be completely eliminated and bearings with rolling elements must not be used.

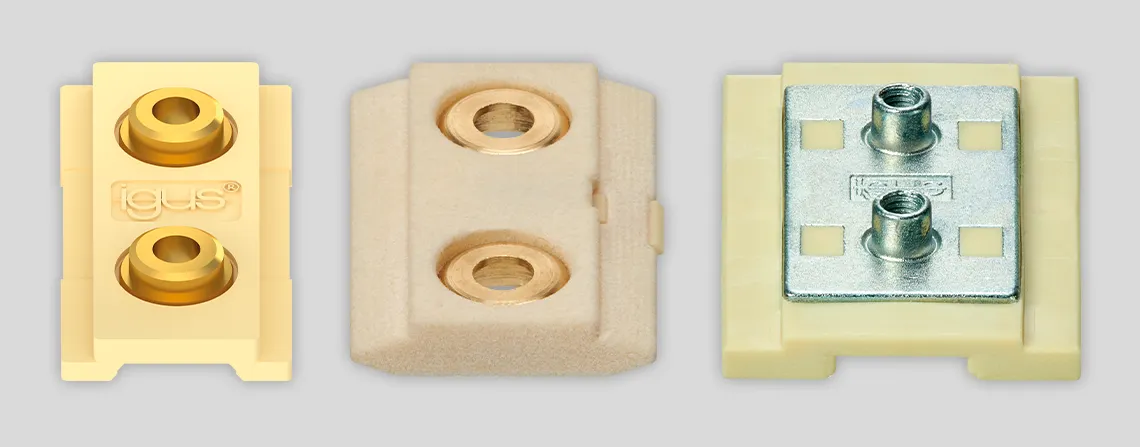

Various plastic bearings were used to realize the bone-fixed parallel robot due to the requirements described. The surgical instrument guidance comprises, for example, a drylin® N glide bar with two carriages. The latter are rigidly connected to each other by means of a stainless-steel component (interlocking) to minimize clearance, which cannot be completely avoided for guide systems due to their design principle. This tool guide entirely fulfils the stated requirements (in particular: no rolling elements, no need for lubricants) and can be easily dismantled, cleaned and reassembled due to the open design of the rail. In addition, the interchangeability of the carriages offers a wide range of options for carrying out intraoperative tool changes. Two push actuators of the parallel robot were connected by means of a rotary joint. The axis of this rotary joint is formed by an adapter screw, whereby the radial clearance is absorbed by two steam-sterilizable iglide® X slide bearings. Users can also pre-load the joint axially by tightening the adapter screw. Thanks to the plastic bearings used, a bone-anchored surgical instrument guide could be developed, constructed and evaluated for the first time, which is universally applicable, reusable and can be adapted to the specific patient. The fulfilment of the accuracy requirements has been successfully proven experimentally.
