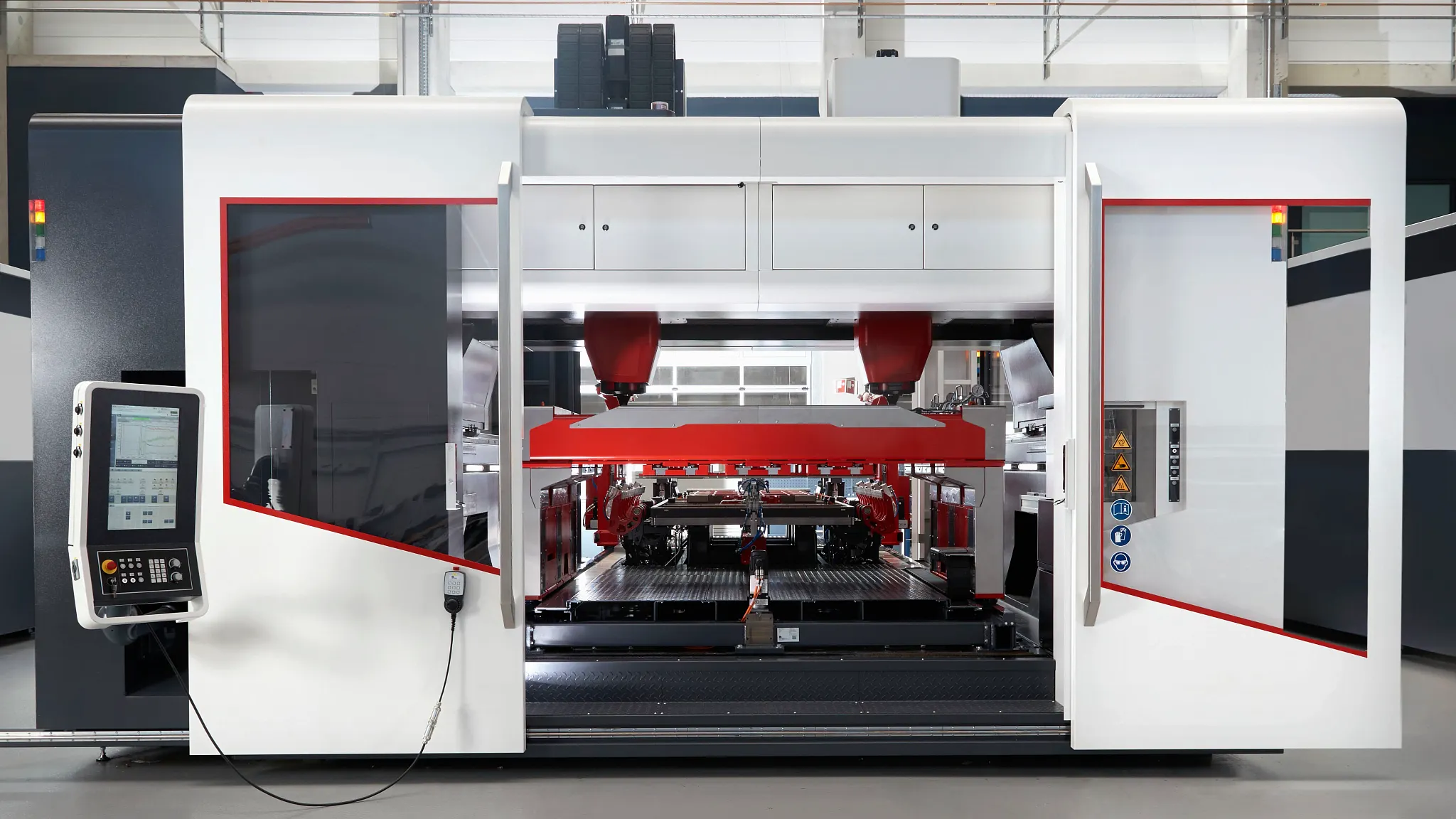

CNC Machining Centers

A CNC machining center is a computer-controlled machine tool designed to perform multiple machining operations such as milling, drilling and boring, often within a single setup. Depending on the machine configuration, turning or grinding operations may also be integrated into the production process.

Beyond the primary cutting axes, machining centers contain supporting motion for cables and hoses, machine doors, tool magazines, operator panels, bearings and automated loading equipment. These systems are an important part of the broader machine tools environment and can be explored further through documented machine tool applications.

CNC machine is a broad term for equipment that uses computer numerical control to automate machining operations. A CNC machining center is a specific type of CNC machine that typically combines several operations and often includes features such as automatic tool changing, multi-axis movement and enclosed machining areas.

Modern machining centers also rely on supporting systems for energy supply, tool handling, doors, auxiliary positioning and other movement around the cutting process. The machine tools overview provides a broader look at how these different motion systems work throughout CNC equipment.

Chips, swarf, coolant, cutting oil and grinding debris create a demanding environment for moving components inside a machining center. Contamination can damage exposed cables, accelerate wear and collect on components that depend on external grease.

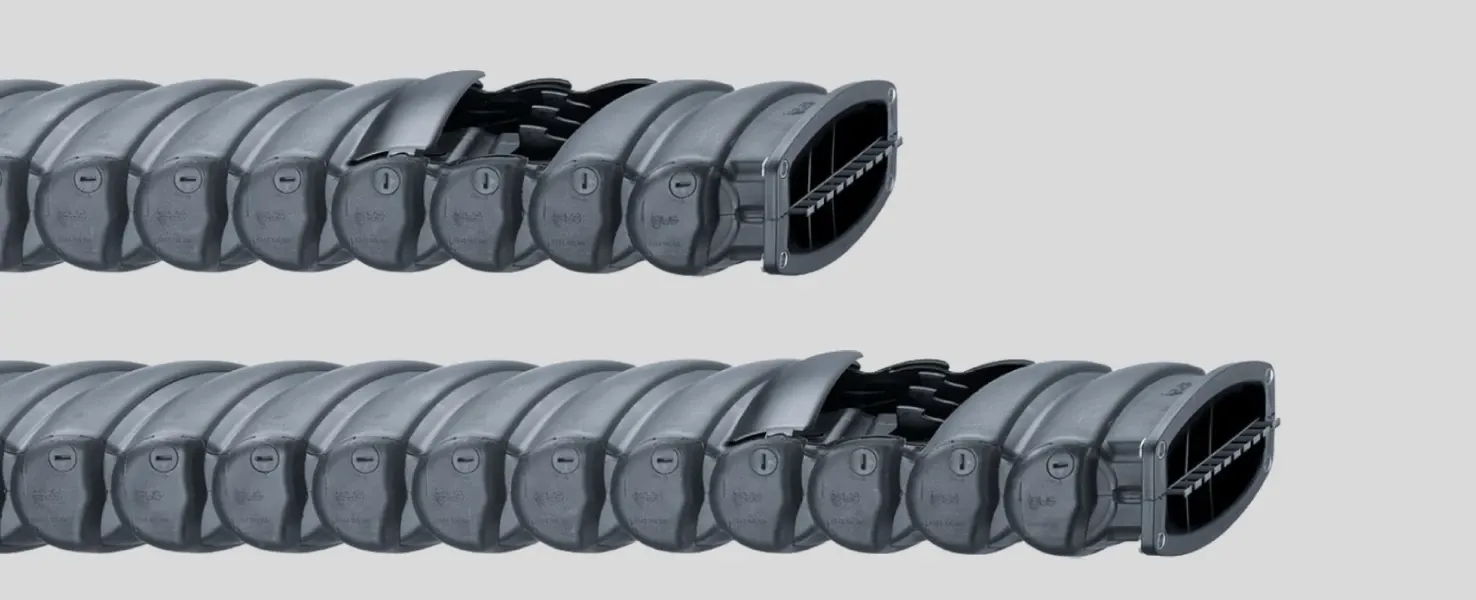

Enclosed energy tubes can protect moving cables and hoses from chips and debris, while self-lubricating iglide® plain bearings and drylin® linear motion systems can operate without external grease in suitable supporting applications. Component selection should always account for the actual contamination level, load and motion of the machine.

Moving cables and hoses in CNC machining centers must withstand continuous flexing while operating around chips, coolant, oil and limited installation space. Reliable cable management also requires the correct bend radius, internal separation, strain relief and carrier size.

e-chain® cable carriers guide and protect moving cables and hoses, while chainflex® continuous-flex cables are designed specifically for repeated motion. Machine builders can also use readychain® systems that combine the cable carrier, cables, connectors and other components into a ready-to-install energy supply system.

Vibration can contribute to chatter, poor surface finish, component wear and reduced machining accuracy. While cutting forces are a major source, moving supporting systems such as cable carriers can also introduce vibration into precision machinery.

Choosing a properly sized, low-vibration e-chain® cable carrier can help reduce these secondary vibration sources. In comparative testing documented by igus, the two igus cable carriers tested produced an average of 28% lower measured vibration than the competing carriers included in the study.

Supporting motion appears throughout a machining center outside the primary precision cutting axes. Common examples include machine and magazine doors, safety guards, operator panels, tool handling systems, sensors, auxiliary positioning equipment, pivots and automated loading systems.

Different movements require different technologies. drylin® linear motion systems can support sliding and positioning, iglide® PRT slewing rings can support suitable swiveling and rotary applications, and iglide® plain bearings can be used in pivots and high-cycle wear points. The Niles-Simmons machining center application demonstrates several of these technologies working within the same machine family.

Machining centers contain many high-cycle wear points outside the main machining axes, including tool magazine joints, doors, guards, rollers, pivots, linkages and sliding surfaces. Repeated movement combined with chips and coolant can make these areas difficult to maintain.

Self-lubricating iglide® plain bearings allow wear to occur in a replaceable bearing rather than directly on the surrounding shaft or machine structure. drylin® linear motion systems can also eliminate external grease in suitable sliding and positioning applications, reducing routine lubrication requirements and the surfaces where contamination can collect.

Improving CNC machining center uptime requires looking beyond the spindle and cutting axes. Moving cables, hoses, bearings, wear points and auxiliary mechanisms should be selected around the machine's travel, cycle rate, load, contamination and maintenance requirements.

Pre-assembled readychain® systems can simplify energy supply installation, while smart plastics condition monitoring can detect abnormal conditions in critical moving cable and energy supply systems. Predictive maintenance and service-life tools can then help maintenance teams plan replacement before a component reaches the end of its expected service life.
