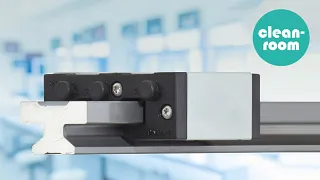

drylin® linear systems for cleanrooms

linear guides with ESD compatibility and RoHS certification

The difference between each cleanroom class is determined via the load and speed of the application, which is why we test all of our drylin® guides so that they demonstrate a clear suitability for cleanrooms. The combination iglide® J against anodized and hard anodized aluminum has "Level 1" in the ESD compatibility according to SEMI E78-0998 (best rating). All drylin® linear guide systems are designed for dry operation and have also been tested in this condition. No oils or grease were used as additional lubricants.

Certifications
IPA qualification certificate
Certificate complies with RoHS requirements and Directive 2011/65/EU

drylin® linear guides tested for cleanroom applications: N40, W10 and T25

NK-02-40-02 - low profile linear rail

For the linear guide system drylin® NK-02-40-02 by igus® GmbH, it is possible, on the calculations of the likelihood of violation of threshold values of the detection sizes 0.2μm, 0.3μm, 0.5μm, and 5μm with motion speed of v =1m/s, to clearly derive suitability for cleanrooms classified as ISO Class 6 according to DIN EN ISO 14644-1." The measurement results of the ESD compatibility according to SEMI E78-0998 show that the linear guide system drylin® NK-02-40-02 can be classified as "level 1" (highest rank). Fraunhofer IPA Report No.: IG 0308- 295 73

Shop now

TK-01-30-01 - linear guide system

For the linear guide system drylin® TK-01-30-01 by igus® GmbH, it is possible, on the calculations of the likelihood of violation of threshold values of the detection sizes 0.2μm, 0.3μm, 0.5μm and 5μm with motion speed of v = 0.1m/s, to clearly derive suitability for cleanrooms classified as ISO Class 3 according to DIN EN ISO 14644-1.

Shop now

TK-01-25-02 linear guide system

For the linear guide system drylin® TK-01-25-02 by igus® GmbH, it is possible, on the calculations of the likelihood of violation of threshold values of the detection sizes 0.2μm, 0.3μm, 0.5μm and 5μm with motion speed of v = 1m/s, to clearly derive suitability for cleanrooms classified as ISO Class 5 according to DIN EN ISO 14644-1." "The measurement results of the ESD compatibility according to SEMI E78-0998 show that the linear guide system drylin® TK-01-25-02 can be classified as "level 1" (highest rank).

Shop now
