Efficient Cable Management Solutions for Jib Cranes
The benefits of using e-chains®, chainflex® and smart plastics on jib cranes

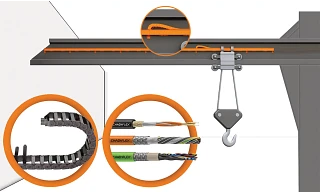

Jib cranes are commonly used for lifting relatively light loads over short distances where the use of an overhead crane would not be practical or cost-effective. For cable management, e-chains® offer a compact, reliable solution that is quick to install and requires minimal space on the crane girder.
Unlike trailing cables, which can sag significantly when the crane is retracted, e-chains® keep cables securely contained, improving operational safety and reducing the risk of damage. When paired with chainflex® cables, they ensure reliable transmission of power and data in dynamic applications.
igus® also provides cable guidance solutions for trolley and control system movement with travel lengths of up to 10 meters. For added reliability, optional smart plastics sensors can monitor the condition of the energy chain system, enabling early detection of potential issues and providing timely warnings to help prevent unplanned downtime.
Advantages of igus jib crane products:
- Space Saving: e-chains guide and protect cables securely and without sagging, making the work environment safer and more efficient.
- Enhanced Durability: Unlike trailing cables that are prone to wear and tear, e-chains protect cables from damage, extending their lifespan.
- Improved Performance: chainflex cables and e-chains with smart plastics offer superior performance, ensuring reliable and uninterrupted operation of your jib crane.
- Reduced Maintenance: With better protection and organization, e-chains require less maintenance compared to trailing cables, saving time and costs.
igus® jib crane components
Toolbox Blog:
Jib crane cable management: What’s the best solution?
Avoid wasting time and money due to cable failure on your jib cranes. Read this blog to learn about a more reliable & effective cable management solution for jib cranes.
System Comparison: e-chain systems instead of festooning
Provide guidance for cables and energy chains while keeping them protected and safe in wind and fluctuating temperatures, minimizing downtime.
System Comparison: e-chain systems instead of busbar systems
Deliver data, energy, fluids and air safely in a single energy chain system. For narrow compact spaces and fast lane movement.
Orange Services: Installation, Inspection, & Training
Proper installation is essential for the life of your energy chain, and igus® has a team of dedicated engineers ready to assist you every step of the way. From site inspection, to installation, to complete modernization, our team will ensure the longest possible service life for your cable carrier system.
Contact us at (800) 521-2747 to discuss your project today!
8 Common questions and answers about jib cranes
A jib crane is a type of crane with a horizontal arm (jib or boom) mounted to a vertical mast, allowing for horizontal rotation and load lifting within a specific radius.
Cable festoons, cable reels, and cable carriers are essential components that manage cables and hoses for safe and efficient crane operation.
Energy chains and guide troughs, like the guidelok swing GLO.S, are alternatives that minimize installation space, reduce maintenance, and enhance performance.
Jib cranes are widely used in manufacturing, construction, warehousing and logistics, shipbuilding and ports, and the automotive industry.
Gorbel jib cranes are a type of crane designed for lifting and moving materials within a workspace, characterized by their horizontal arm and rotation capability.
Articulating jib cranes offer flexibility in movement, allowing for precise positioning and handling of loads around obstacles and in tight spaces.
A column mounted jib crane is attached to a vertical column or pillar, providing a stable base and enabling 360-degree rotation for improved load handling.
Articulated jib cranes are commonly used in manufacturing, assembly, and maintenance tasks where precise load placement is required.
