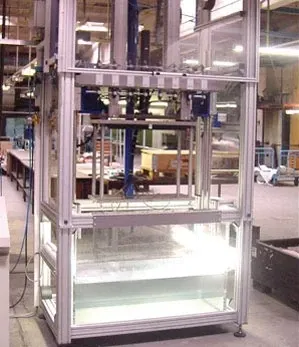

Linear bearing and housing unit use in leak test stand

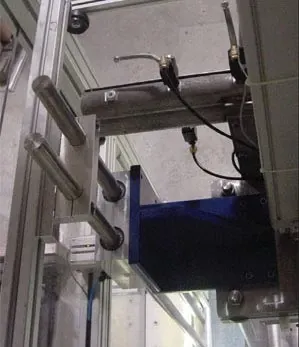

To make the leak stand test (quality control test for a heat exchanger) work, a facility required a guide with the following properties: sensitive to dirt, maintenance-free, water-resistant, vibration-resistant and cost-efficient. drylin® linear bearings and a housing unit were installed. Two drylin® quad blocks (RQA 01-30) and four shaft end supports (TA-30) were used (as pictured below). The facility has been in operation for many months and the igus® elements have proven themselves as the perfect solution.

"To realize this function, we required a guide with the following properties: sensitive to dirt, maintenance-free, water-resistant, vibration-resistant and cost-efficient! Two drylin® quad blocks (RQA 01-30) and four shaft end supports (TA-30) were used. The facility is already in operation for many months; the igus® elements have proved themselves. ”

Michael Zimmermann, Möve-Metall GmbH, Mühlhausen
