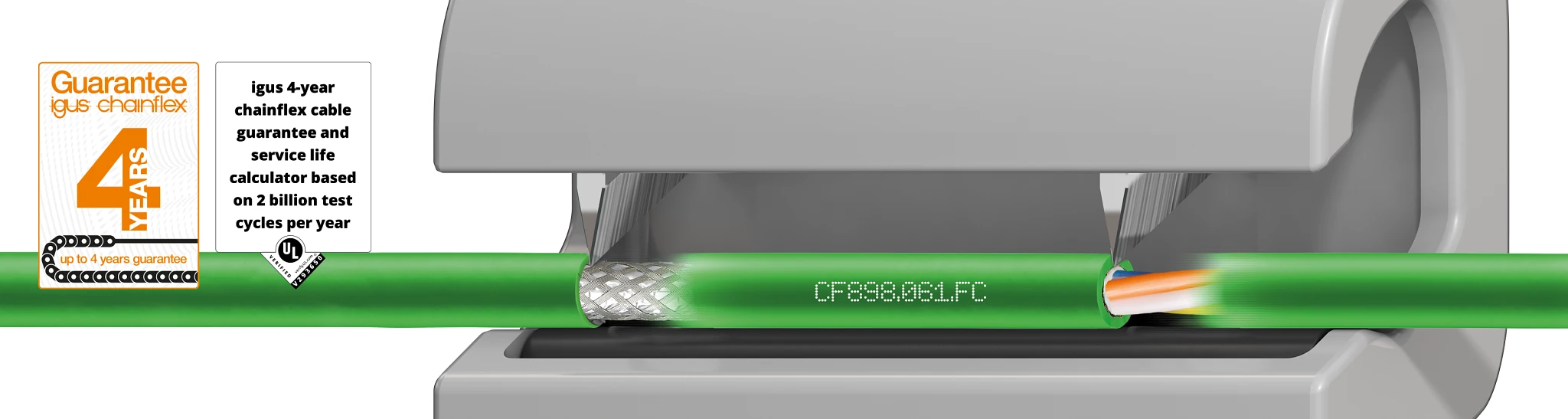

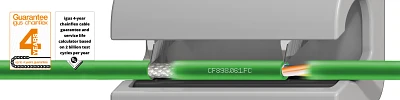

Connect quickly, safely and easily with PROFINET FastConnect
New technology saves up to 46% of harnessing time
With CF898.061.FC PROFINET cable you can harness faster and more economically in your production process. The right stripping tool and our FastConnect-enabled cable significantly reduce harnessing work. At the same time, you reduce the risk of having to dispose of cable sections damaged by core cuts or shield damage. This cable is used in machines with a bend factor of 15xd and short travels. A guarantee of up to four years and UL certification are standard for this new product.
All details of the new PROFINET cable CF898.061.FC at a glance
| igus® Part No. | Number of cores and conductor nominal cross section [mm²] | Outer diameter [mm] | Copper index [kg/km] | Weight [kg/km] |
|---|---|---|---|---|
| CF898.061.FC | (4x0.34)C | 7,0 | 25 | 72 |
Tech up
- Use of cable with guaranteed service life with FastConnect technology
- No core cuts/shield damage due to incorrect tools
Cost down
- 46% faster processing
- No project planning with length specifications necessary
- Quick repair on site possible
Proof
- Test 5526 Interim status: 7.8 million strokes (test continues successfully)
- Calculate service life of the cable online
Sustainability
- Reduction of 10% of the cable material due to elimination of waste
Cables sold by the foot
The chainflex cables meet all the requirements for electromagnetic compatibility as well as the standards and guidelines such as UL, CSA, VDE, EAC and much more.
chainflex® guarantee
chainflex lasts - up to 4 years guaranteed. Find details of the unique chainflex guarantee here.
