Assembly Instructions for energy chain System E3

System E3 - 3-piece energy chain

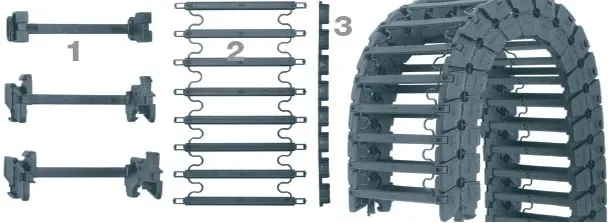

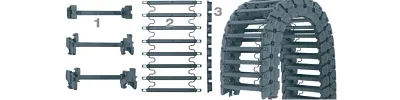

The abbreviation "E3" stands for an energy chain consisting of three basic elements:1 Chain link body 2 Zipper style opening lids 3 Separator module

System E3 Assembly

Opening / Closing

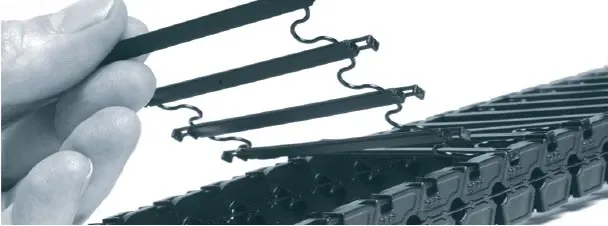

Zipper style opening lids on a band for quick and easy installation - The new energy chain system allows faster assembling times. Opening and closing the energy chain is made by "zipper bars on a thread"

System E3 Assembly

Interior Separation and Strain Relief

System E3 Assembly

Vertical separators on a band divide carrier space -Five separators in one thread are simultaneously mounted on the crossbars

System E3 Assembly

The universal strain relief can be individually matched to the chain width. You can fix the energy chain on the fixed end with brackets (option)
