Assembly Instructions for energy chain System E2 mini

Assembling

System E2 mini Assembly

Push and click

Push and click

System E2 mini Assembly

Snap in pin

Snap in pin

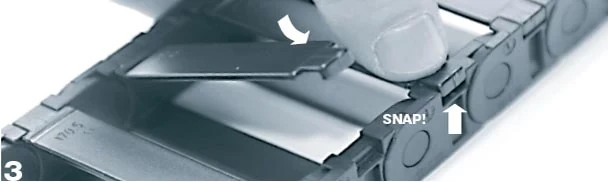

Push and snap

Separation

System E2 mini Assembly

Lever crossbars

Lever crossbars

System E2 mini Assembly

Swivel crossbars

Swivel crossbars

System E2 mini Assembly

Release side-link

Release side-link

System E2 mini Assembly

Twist and pull apart

Twist and pull apart
