E2/000 e-chain® as clamp version - two-part
For the e- chains® standard – the igus® E2/000 system is now available as a product range with snap-open clamps for the series 2400, 2600 and 3400. By using clamps instead of crossbars the interior of the e- chain® can be enormously enlarged, so that even large suction hoses can be safely guided. Due to the range of special cable-friendly interior separators, the filling space can be subdivided, which enables a combination of cables and hoses from the modular system according to your requirements.
- Suitable for hoses with an outer diameter of max. 80 mm.
- Optionally openable along the inner or outer radius, swiveling.
- Matching modular interior separation for optimal segmentation of the interior.
- Cable-friendly design of clamp and interior separation.
- High holding force of the clamp.

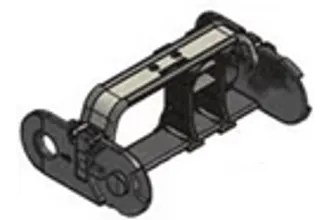

Series 2400/2500/2450
Inner height hi: 41 mm
Inner widths Bi: 50 - 100 mm
bending radii R: 75 - 250 mm
Pitch: 33,3 mm

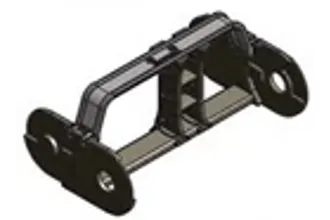

Series 2600/2700/2650
Inner height hi: 56 mm
Inner widths Bi: 75 - 150 mm
bending radii R: 100 - 250 mm
Pitch: 33,3 mm

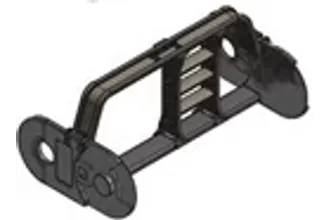

Series 3400/3500/3450
Inner height hi: 85 mm
Inner widths Bi: 100 - 200 mm
bending radii R: 125 - 300 mm
Pitch: 67 mm
